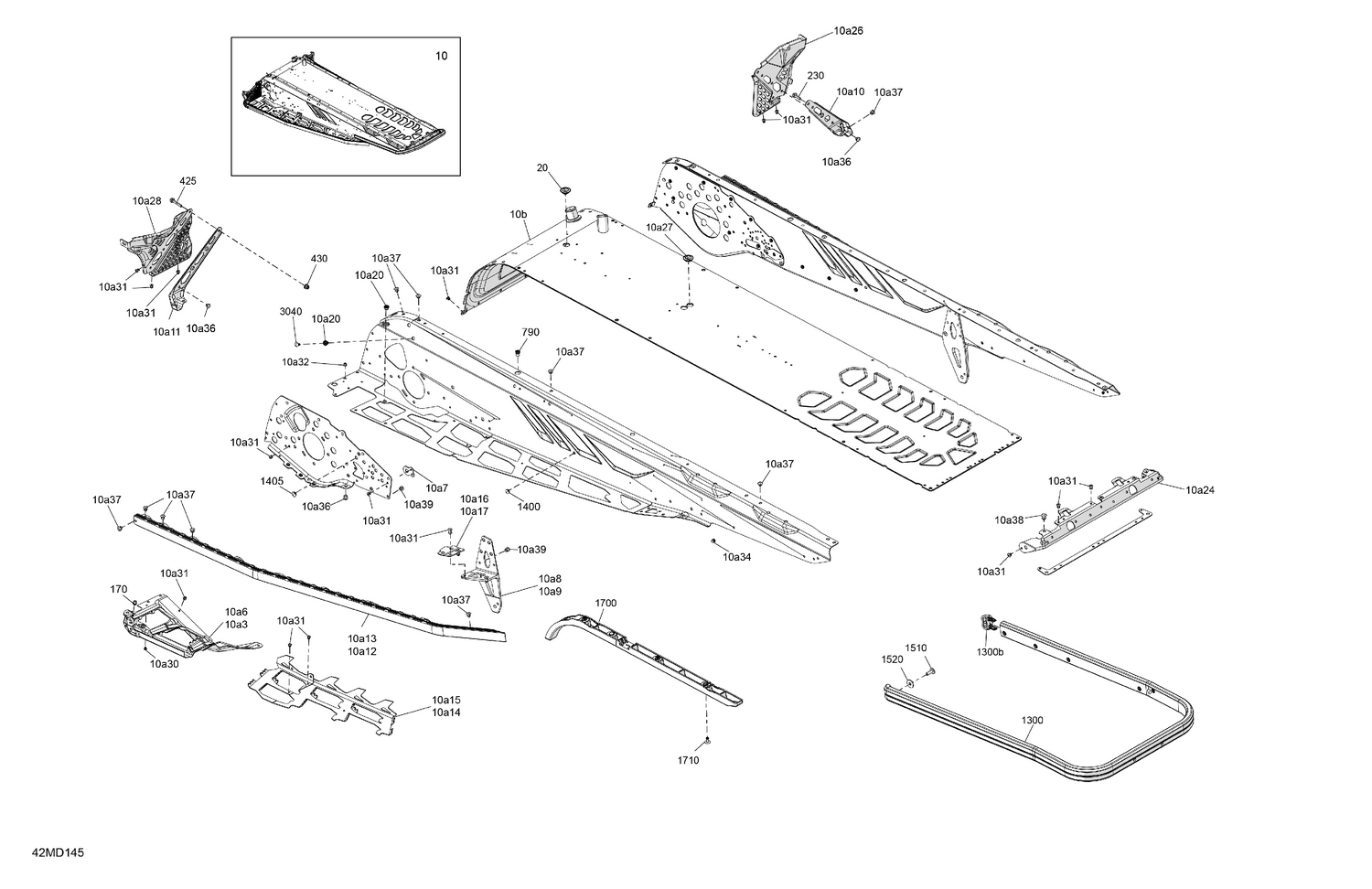

| Ref | Part Number | Description |
|---|
| 10a10 |
518334507 |
Stirrup Reinforcement |
| 10a11 |
518332924 |
Deep Black, LH Chassis Reinforcement |
| 10a12 |
518328451 |
RH Roller |
| 10a13 |
518328452 |
LH Roller |
| 10a14 |
518334842 |
Central Rear Tunnel Reinforcement |
| 10a15 |
518334843 |
LH Central Reinforcement Tunnel |
| 10a16 |
518329088 |
LH Reinforcement Plate |
| 10a17 |
518329089 |
RH Reinforcement Plate |
| 10a20 |
250100242 |
Threaded Insert M6 X 1.0 |
| 10a24 |
518328990 |
Rear Cap |
| 10a26 |
518334509 |
RH Footrest |
| 10a27 |
293730052 |
Black, Plug |
| 10a28 |
518334305 |
LH Foot Protector |
| 10a3 |
518332803 |
Deep Black, RH Footrest Reinforcement |
| 10a31 |
293150203 |
Rivet Avibulb 3/16 |
| 10a32 |
293150237 |
Avibulb Rivet 4.8 X 12.1 |
| 10a34 |
293150245 |
Henrob Rivet |
| 10a36 |
293150264 |
Rivet Ornit 6,5 X 10.5 |
| 10a37 |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 10a38 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 10a39 |
293150266 |
Ornit Rivet 6,5 X 14.5 |
| 10a6 |
518332802 |
Deep Black, LH Footrest Reinforcement |
| 10a7 |
518335959 |
Front Suspension Arm Reinforcement This part replaces 518329659. |
| 10a8 |
518334406 |
LH Rear Suspension Support |
| 10a9 |
518334407 |
RH Rear Suspension Support This part replaces 518334407. |
| 10b |
518334491 |
Radiator Tunnel 154 Ass'y |
| 20 |
293730052 |
Black, Plug |
| 170 |
293450267 |
Insert M5 - 0.8 |
| 230 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 425 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 430 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 790 |
293450278 |
Insert |
| 1300b |
520001629 |
Bumper Cap |
| 1400 |
293730047 |
Black, Dart 8 mm |
| 1405 |
293730060 |
Black, Dart 10 mm |
| 1510 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 1520 |
224061201 |
Flat Washer |
| 1700 |
518329982 |
Front Protector |
| 1710 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
