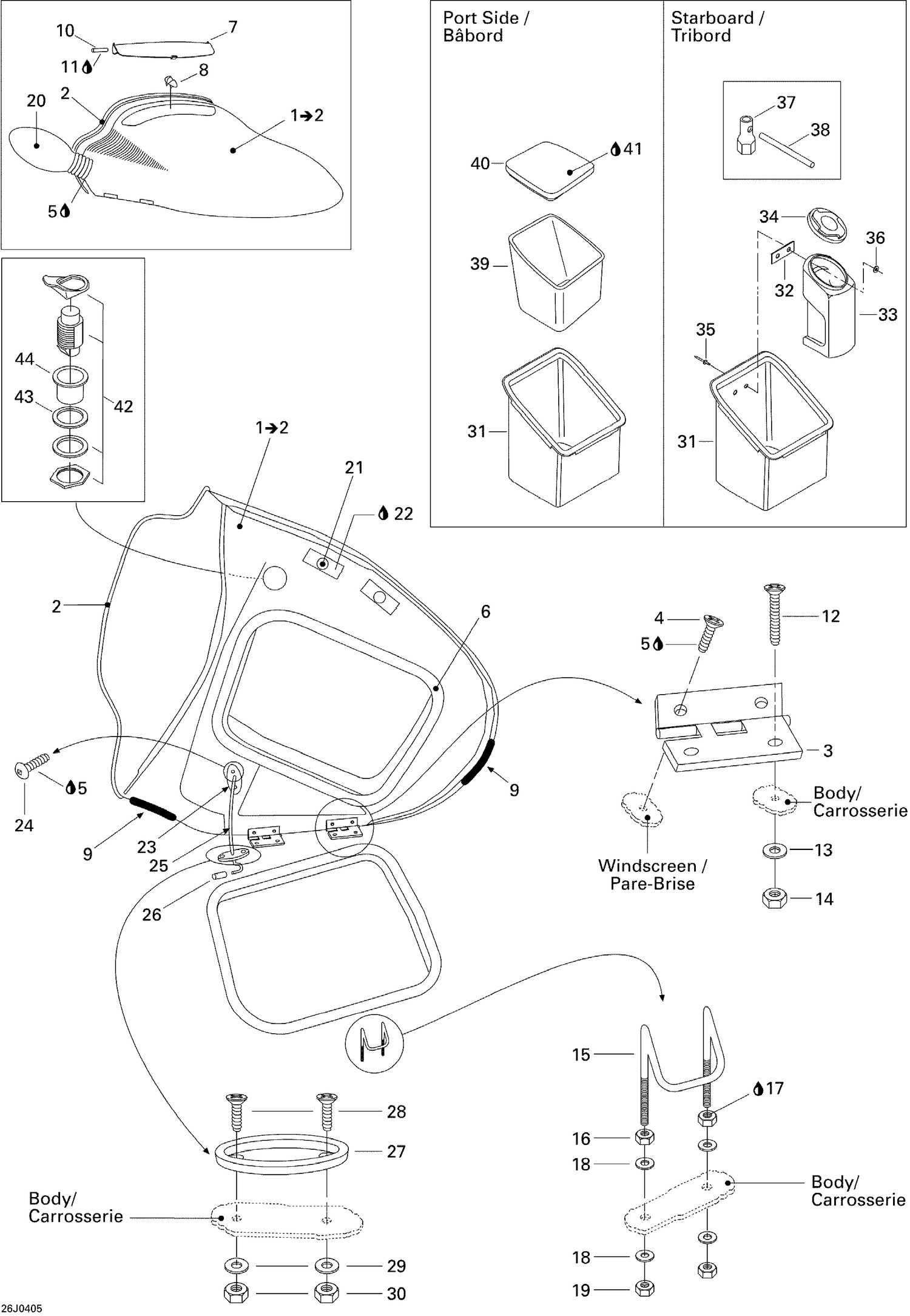

| Ref | Part Number | Description |
|---|
| 2 |
204620100 |
Trim, Meter |
| 3 |
204620005 |
Console Hinge |
| 4 |
216141260 |
SCREW M4 X 12 - Call your local BRP dealership |
| 5 |
219704457 |
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 6 |
219704368 |
Seal Tray 1000Mm Long |
| 7 |
204073803 |
DEFLECTOR - Call your local BRP dealership This part replaces 204620124. |
| 8 |
204073804 |
REAR STOPPER - Call your local BRP dealership This part replaces 204620116. |
| 9 |
204620117 |
Waterproof Seal, Meter |
| 10 |
204620126 |
ROLLED PIN 1.5 X 10 MM - Call your local BRP dealership |
| 11 |
413708300 |
Glue Tube, Loctite 454, 20 G |
| 12 |
208442060 |
PHILLIPS SCREW M4 X 20 - Call your local BRP dealership |
| 13 |
234042600 |
Flat Washer 4 mm, Stainless |
| 14 |
232541600 |
Elastic Stop Nut M4 |
| 15 |
204620151 |
Hook |
| 16 |
232061600 |
Hex. Nut M6 |
| 17 |
293800060 |
Loctite 243, 10 ml |
| 18 |
234062600 |
Flat Washer M6, Stainless |
| 19 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 20 |
204620026 |
Black, RH Mirror |
| 21 |
204620295 |
RUBBER STOPPER - Call your local BRP dealership |
| 23 |
204620028 |
ROD HOLDER - Call your local BRP dealership |
| 24 |
208441660 |
PHILLIPS SCREW M4 X 16 - Call your local BRP dealership |
| 25 |
204620219 |
SUPPORT ROD - Call your local BRP dealership |
| 26 |
204620044 |
CAP - Call your local BRP dealership |
| 27 |
204620030 |
ROD STOP - Call your local BRP dealership |
| 28 |
208442060 |
PHILLIPS SCREW M4 X 20 - Call your local BRP dealership |
| 29 |
234042600 |
Flat Washer 4 mm, Stainless |
| 30 |
232541600 |
Elastic Stop Nut M4 |
| 31 |
269501940 |
STORAGE TRAY - Call your local BRP dealership This part replaces 269500416. |
| 32 |
293250037 |
GASKET - Call your local BRP dealership |
| 33 |
269500606 |
EXTINGUISHER HOUSING - Call your local BRP dealership |
| 34 |
269501939 |
EXTINGUISHER HOUSING CAP - Call your local BRP dealership This part replaces 269500603. |
| 35 |
293150032 |
RIVET_POP 1/8 X ,487 - Call your local BRP dealership |
| 36 |
234032600 |
Flat Washer M3, Stainless |
| 37 |
204630050 |
Socket Wrench |
| 38 |
Not |
Available As Spare Part - Steel Bar |
| 39 |
204630008 |
ICEBOX FOAM - Call your local BRP dealership |
| 40 |
204630013 |
Icebox Foam Cover |
| 41 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 42 |
204070122 |
LATCHES KIT, 3 SUB-ASSEMBLIES - Call your local BRP dealership |
| 43 |
204620045 |
COMPENSATION GASKET - Call your local BRP dealership |
