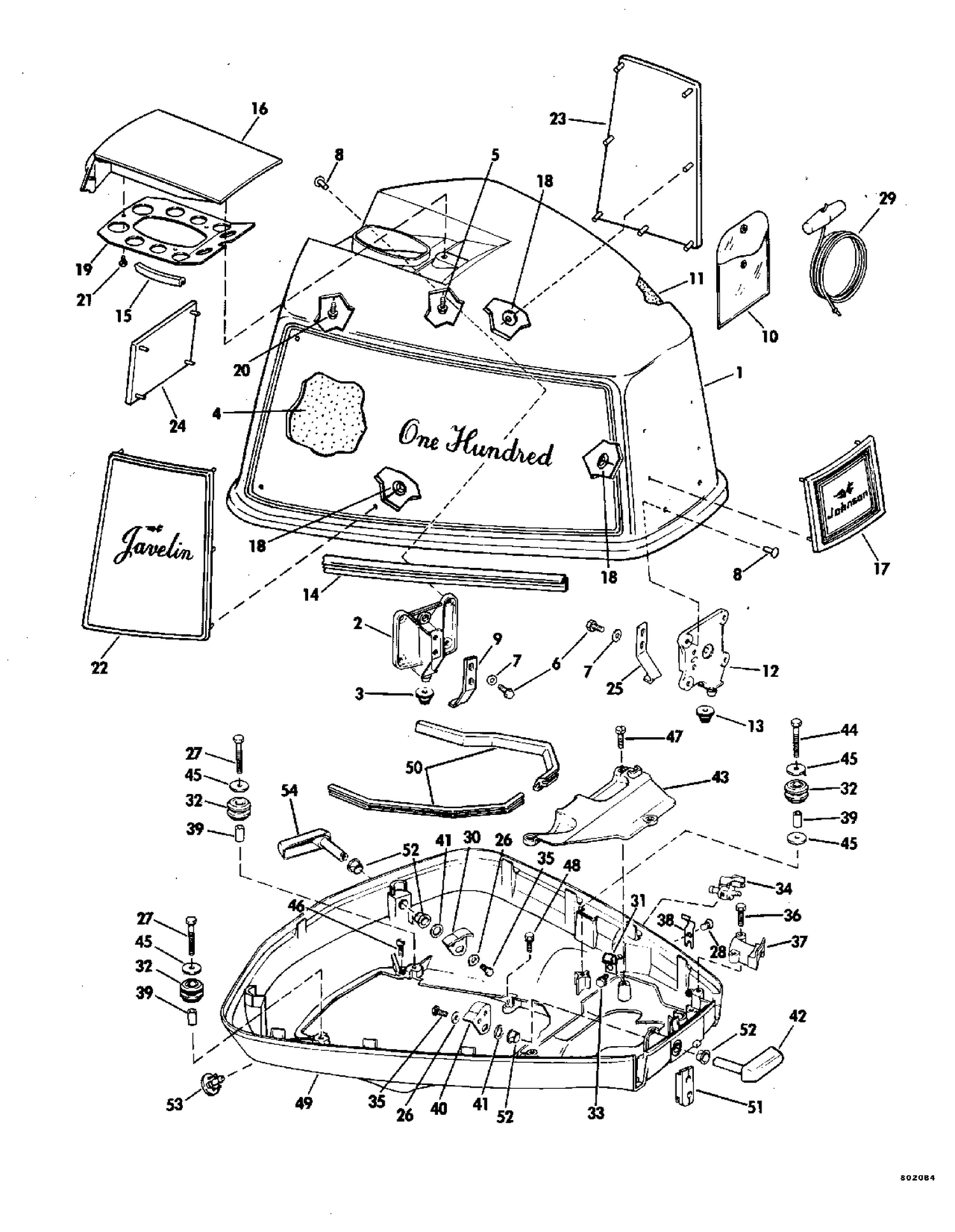

MOTOR COVER — Parts Catalog

Parts (54)

Ref	Part Number	Description
1	0390219	MOTOR COVER ASSY.,85
1	0390220	MOTOR COVER ASSY.,100
1	0390222	MOTOR COVER ASSY.,115
1	0390223	MOTOR COVER ASSY.,140
1	0390513	MOTOR COVER ASSY.,100
2	0394976	LOCATING BRACKET, Rear This part replaces 0389972.
4	0315206	SOUND BLANKDT, Side
7	0306407	LOCCKWASHER,Cover latch
10	0314494	BAG EMERGENCY STARTER ROPE
11	0324072	SOUND BLANKET, Top
12	0389971	LOCATING BARCKET, Front
14	0329548	SEAL This part replaces 0208076.
15	0315984	SEAL , Baffle to motor cover
17	0390364	APPLIQUE,85
17	0390366	APPLIQUE,100
17	0390368	APPLIQUE,115
17	0390370	APPLIQUE,140
17	0390514	APPLIQUE,100
19	0315989	AIR INLET BAFFLE
22	0325658	APPLIQUE,Starboard,100 models
23	0325657	APPLIQUE,Port,100 models
24	0323965	APPLIQUE, Rear
25	0323175	HOOK , Motor Cover, Front
27	0303398	VIS, support This part replaces 0302030.
28	0310539	SCREW, Clamp choke solenoid
29	0378347	CORDE DE LANCEUR
30	0323169	HOOK, Lower rear port
32	0316354	ENGINE COVER SUPPORT GROMMET
33	0325857	SCREW, Fuel connector
34	0393334	CONNECTEUR, carburant - mâle This part replaces 0376154.
35	0552062	SCREW, Clamp
36	0307151	SCREW
37	0318849	CLAMP, Instrument cable
38	0333739	RETAINER, Fuel hose to cover This part replaces 0318313.
39	0302406	SLEEVE
40	0323170	HOOK Front and stbd., rear
42	0383641	LATCH HANDEL ASSY., Front
43	0328358	COVER ASSY. Air entrance This part replaces 0326251.
44	0303398	VIS, support This part replaces 0302030.
46	0328695	CLAMP, Engine cable This part replaces 0323480.
47	0328695	CLAMP, Engine cable This part replaces 0323480.
49	0434289	COVER, Lower This part replaces 0391187.
50	0318258	SEAL Cover
51	0323428	GROMMET
53	0321885	NIPPLE
54	0383685	LATCH HANDEL ASSY., Rear
0390365	0390365	DECAL SET,85
0390367	0390367	DECAL SET,100
0390369	0390369	DECAL SET,115
0390371	0390371	DECAL SET,140
0390515	0390515	DECAL SET,100
0391369	0391369	DECAL SET,85
0391371	0391371	DECAL SET,115
0391372	0391372	DECAL SET,140
