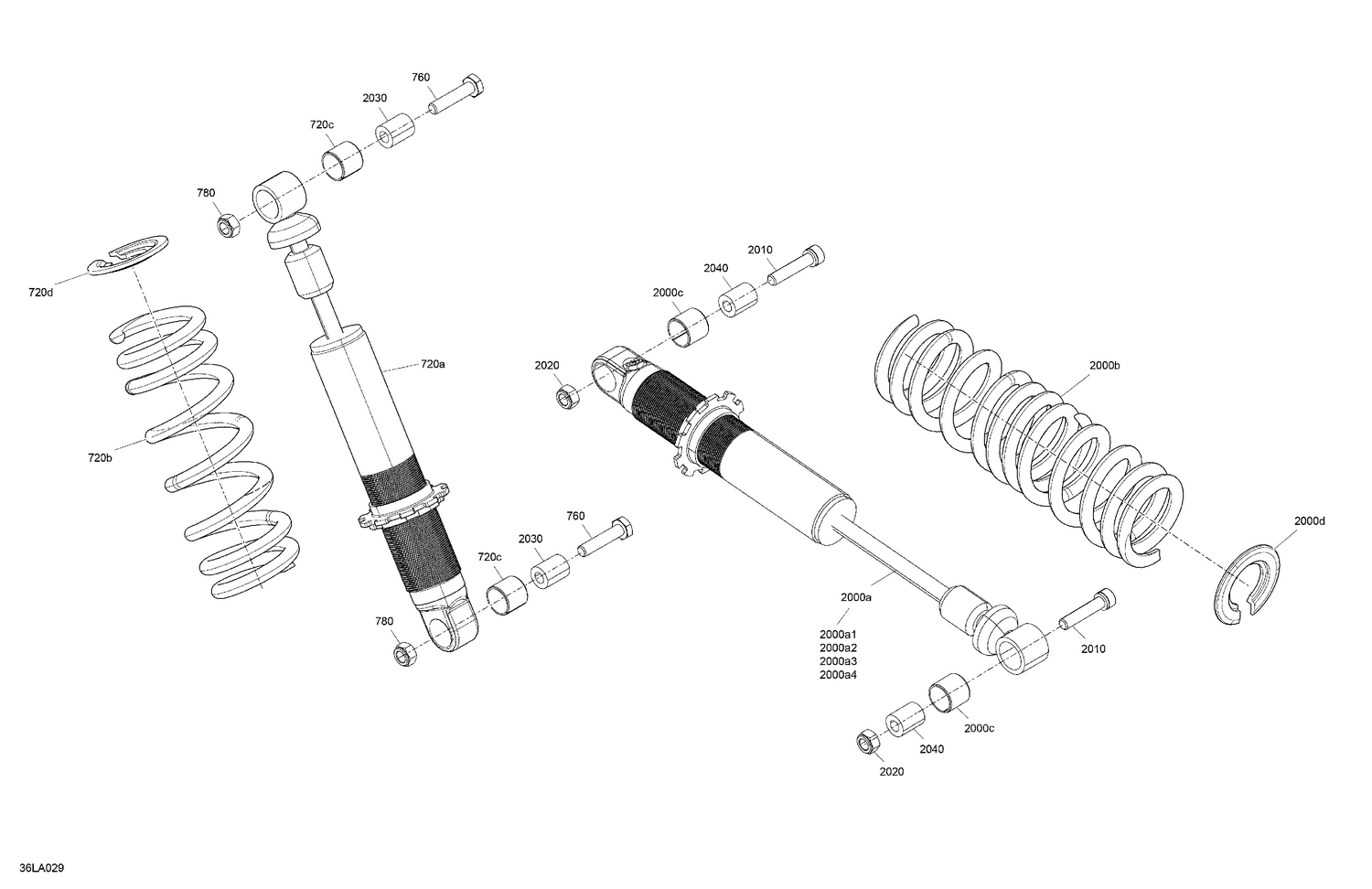

05- Suspension - Rear Shocks
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 720a | 503195128 | Shock |
| 720b | 503194211 | Spring (239mm - 60N/mm) |
| 720c | 503195134 | Glide Bearing |
| 720d | 230076 | Fjäder stoppare Främ dä,päre |
| 760 | 207004544 | Hex. Screw M10 X 45 |
| 780 | 232500416 | Elastic Stop Nut M10 |
| 2000a | 503195130 | Shock |
| 2000a2 | 505070399 | Screw |
| 2000a3 | 505070400 | O-Ring |
| 2000a4 | 230060 | Seal Carrier Ass´y 46 mm. |
| 2000b | 503195209 | Black, Spring 280 MM-65 N/MM |
| 2000c | 503195134 | Glide Bearing |
| 2000d | 605354631 | Fjäder stoppare dak dä,päre |
| 2010 | 40134 | Screw Socket HD.DIN 912 |
| 2020 | 232500416 | Elastic Stop Nut M10 |
| 2030 | 5446652 | Bushing |
