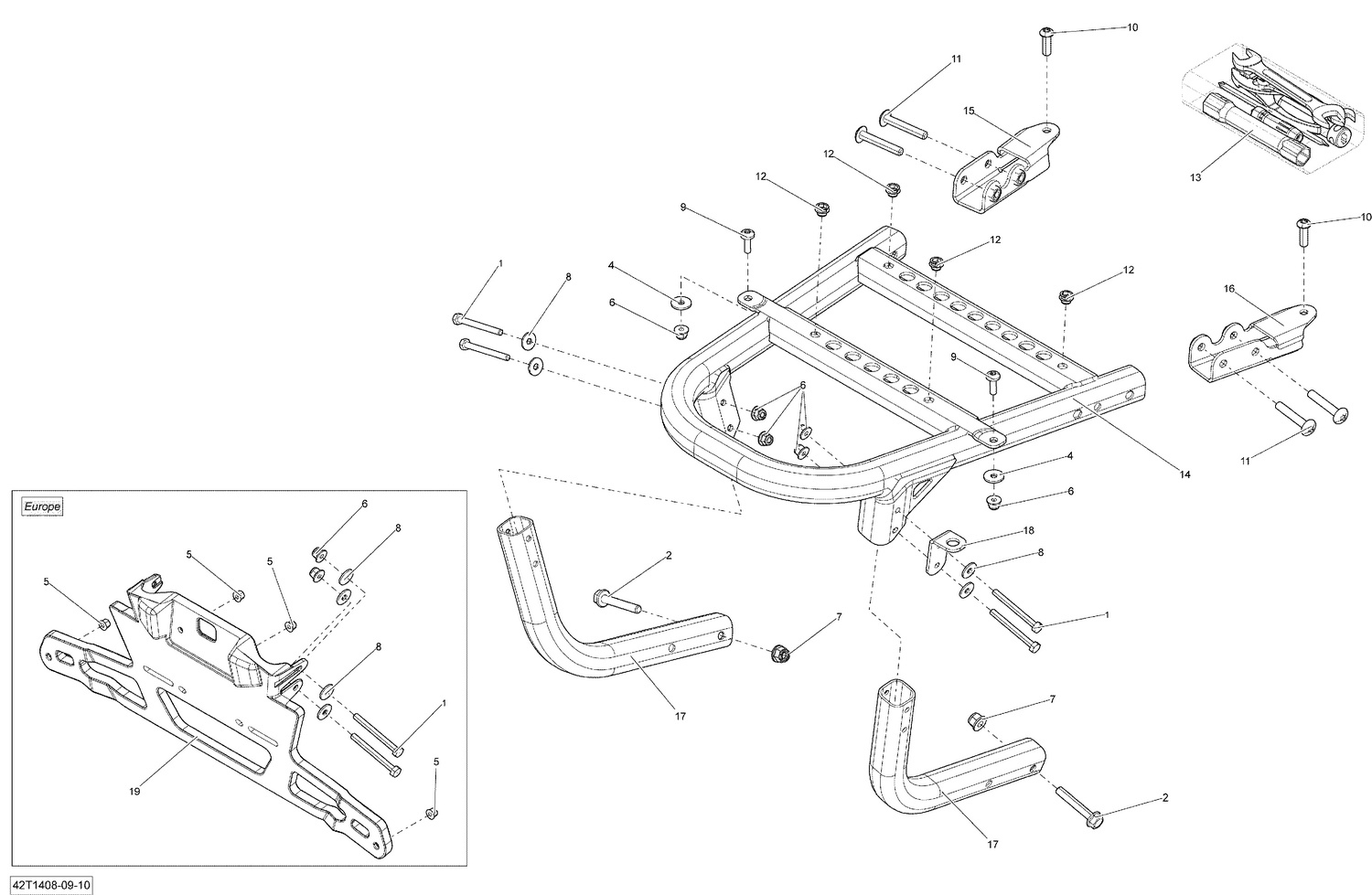

| Ref | Part Number | Description |
|---|
| 1 |
207066044 |
Hex. Screw M6 X 60 |
| 2 |
207685044 |
Hex. Flange Screw M8 X 50 |
| 4 |
224061201 |
Flat Washer |
| 6 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 7 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 9 |
250000712 |
Torx Screw M6 X 20 This part replaces 250000075. |
| 10 |
250000283 |
Torx Screw M8 X 25, Scotch Grip |
| 11 |
250000761 |
Torx Truss Screw M8 X 50 This part replaces 250000298. |
| 12 |
250100242 |
Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 13 |
704700162 |
Tool Kit This part replaces 704700148. |
| 14 |
705004318 |
Rear Support |
| 15 |
705004977 |
LH Front Bracket |
| 16 |
705004978 |
RH Front Bracket |
| 17 |
705018526 |
Deep Black, Rear Pillar -SB This part replaces 705004981. |
