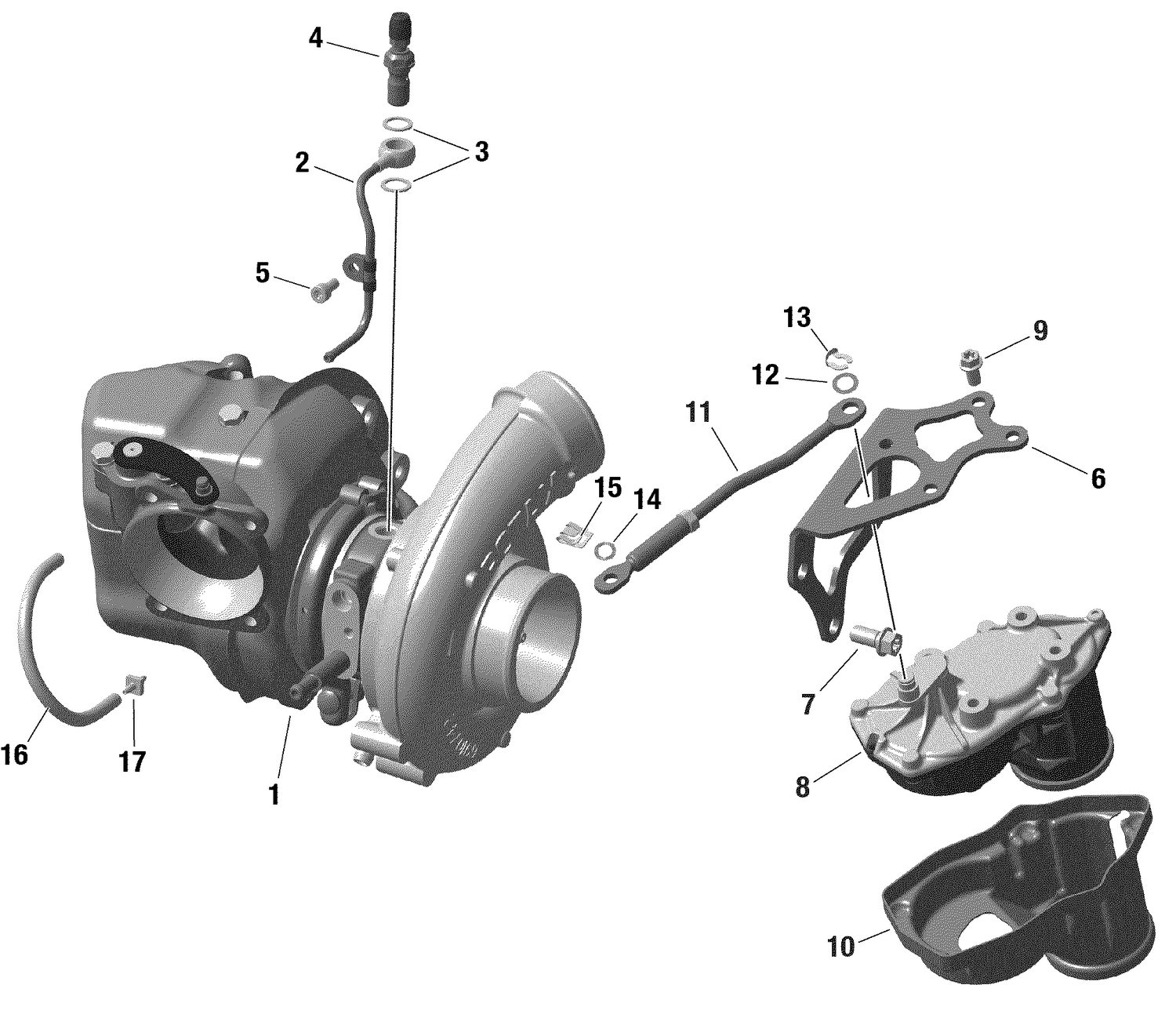

01- Rotax - Turbocharger
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420456453 | Oil Line |
| 3 | 420230154 | Oil Seal This part replaces 420230152. |
| 4 | 420441630 | Bleeder Screw M10 X 1 |
| 5 | 420240692 | Allen Screw M5 X 10 |
| 6 | 420851735 | Support |
| 7 | 420440852 | Torx Flange Screw M8 X 16 |
| 8 | 420889432 | Servo Motor Ass'y |
| 9 | 420440149 | Hex. Flange Screw M6 X 12 |
| 10 | 420975005 | Heat Protection Mat |
| 11 | 420971630 | Wastegate rod Ass'y |
| 12 | 420945712 | Wave Shim 7.6/11.8/0.1 |
| 13 | 420945710 | Retaining Ring |
| 14 | 420945713 | Wave Shim 6.4/9.8/0.1 |
| 15 | 420845000 | Circlip |
| 16 | 420201924 | Oil Line 673MM |
