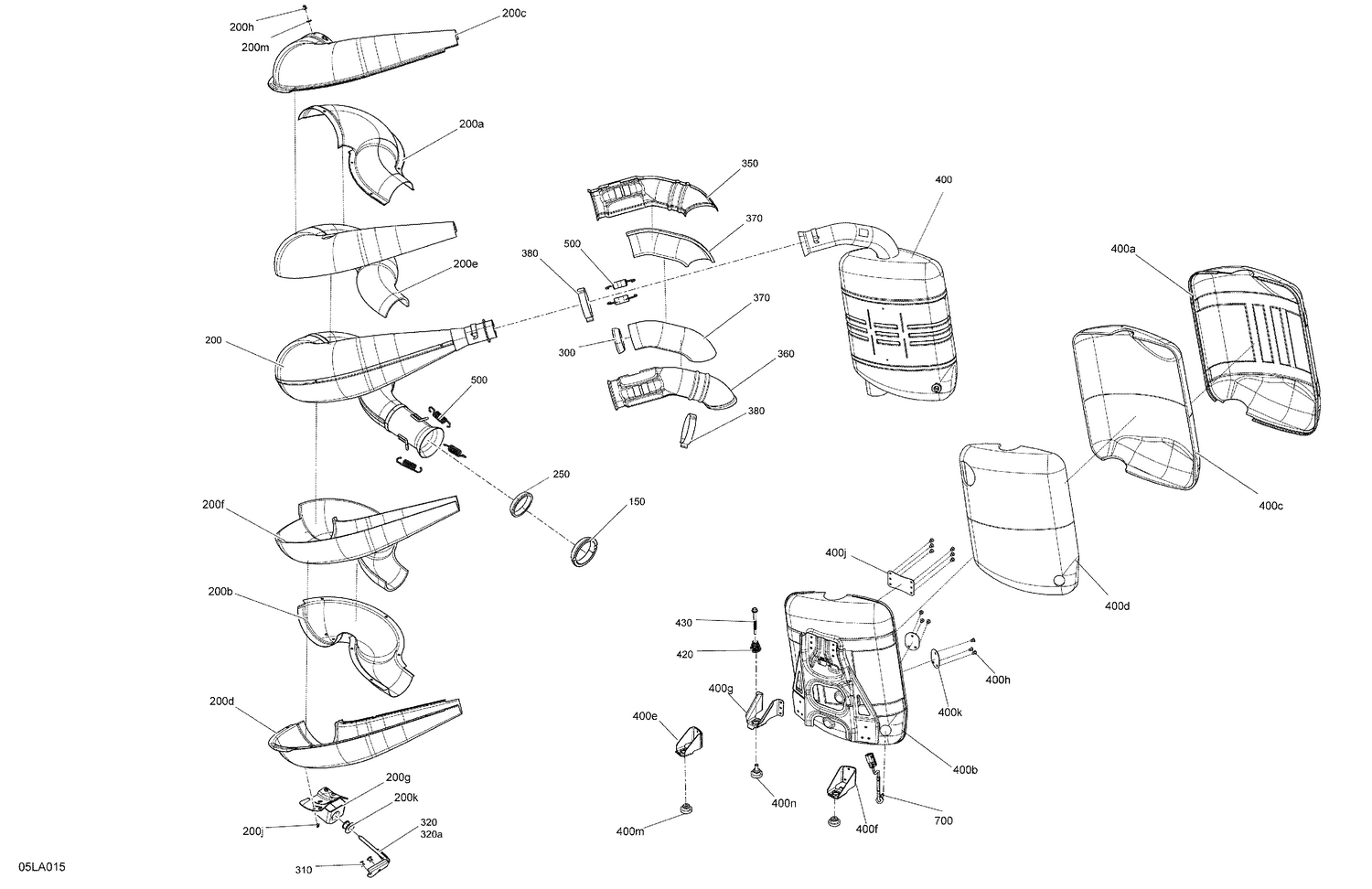

02- Engine - Exhaust
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 150 | 514053487 | Exhaust Gasket |
| 200a | 514055222 | Upper Front Aluminium Shell |
| 200b | 514055223 | Front Lower Aluminum Shell |
| 200c | 514055859 | Rear Upper Aluminum Shell |
| 200d | 514055618 | Rear Lower Aluminum Shell |
| 200e | 514056351 | Glass Wool This part replaces 514055220. |
| 200f | 514055385 | Wool |
| 200g | 514055316 | Support |
| 200h | 390909200 | Avex Rivet |
| 200j | 390909200 | Avex Rivet |
| 200k | 514055632 | Rubber |
| 200m | 514055537 | Washer 3/16 |
| 250 | 514055965 | Seal |
| 300 | 514055294 | Exhaust Gasket |
| 310 | 293150119 | Hemlock Rivet, 6.5 mm |
| 320a | 514055214 | Support |
| 350 | 514055558 | Front Shield |
| 360 | 514055559 | Rear Shield |
| 370 | 514055285 | Wool |
| 380 | 514056035 | Clip |
| 400a | 514055980 | RH Deflector |
| 400b | 514055707 | LH Deflector |
| 400c | 514055201 | Wool |
| 400d | 514055752 | Wool |
| 400e | 514055485 | Front Support |
| 400f | 514055486 | Rear Support |
| 400g | 514055545 | Support |
| 400h | 293150200 | Interlocks Rivet 4.8 X 25.45 Black |
| 400j | 514055499 | Backing Plate |
| 400k | 514055500 | Backing Plate |
| 400m | 514055203 | Stopper |
| 400n | 514056138 | Stopper Ass'y |
| 420 | 514055282 | Spring |
| 430 | 250000926 | Hex. Flanged Screw M6 |
| 500 | 514055198 | Spring |
