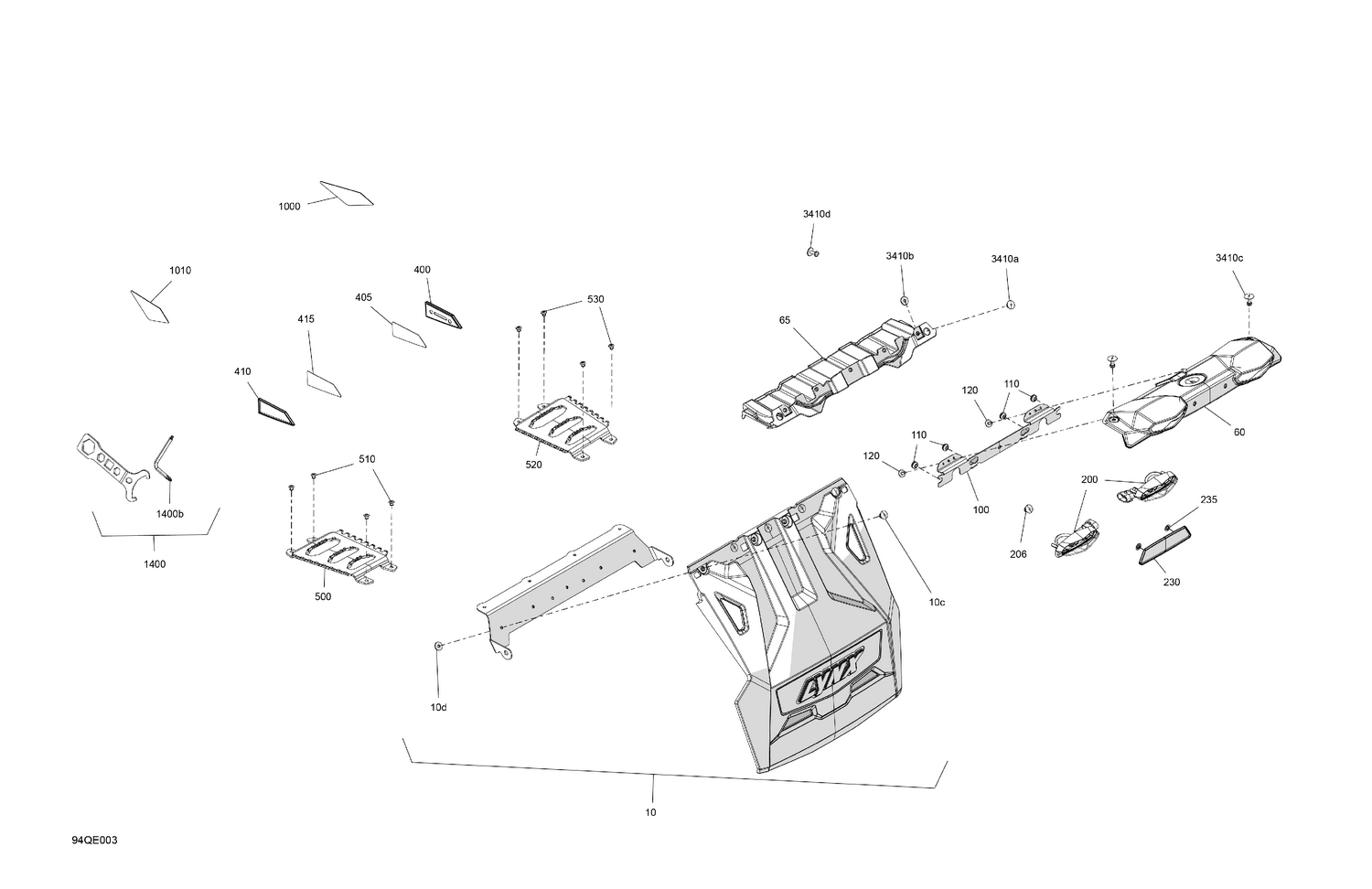

| Ref | Part Number | Description |
|---|
| 10c |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 10d |
517124300 |
Washer |
| 60 |
520001701 |
Light Fairing |
| 65 |
520003059 |
Trim Cap |
| 100 |
520001773 |
Rear Light Support Plate |
| 110 |
293720101 |
Grommet |
| 120 |
250000805 |
Plastite Screw M4 X 10 |
| 200 |
520003188 |
Tail Light |
| 206 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 230 |
705015952 |
Rear Reflector |
| 235 |
732610072 |
Push Nut |
| 400 |
520003528 |
Amber, LH/RH Rear Reflector This part replaces 705016306. |
| 405 |
520002649 |
RH Support Tape |
| 410 |
705016307 |
Yellow, LH Reflector |
| 415 |
520002650 |
LH Support Tape |
| 500 |
520002896 |
Deep Black, Passenger Footrest |
| 510 |
293150300 |
Black, Pop Rivet 3/16 X ,425 |
| 520 |
520002896 |
Deep Black, Passenger Footrest |
| 530 |
293150300 |
Black, Pop Rivet 3/16 X ,425 |
| 1000 |
520002343 |
RH Front Reflector |
| 1010 |
520002344 |
LH Front Reflector |
| 1400b |
520001815 |
Key |
| 3410a |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 3410b |
517124300 |
Washer |
| 3410c |
293150306 |
Black, Ornit Rivet 3/16 X ,800 |
