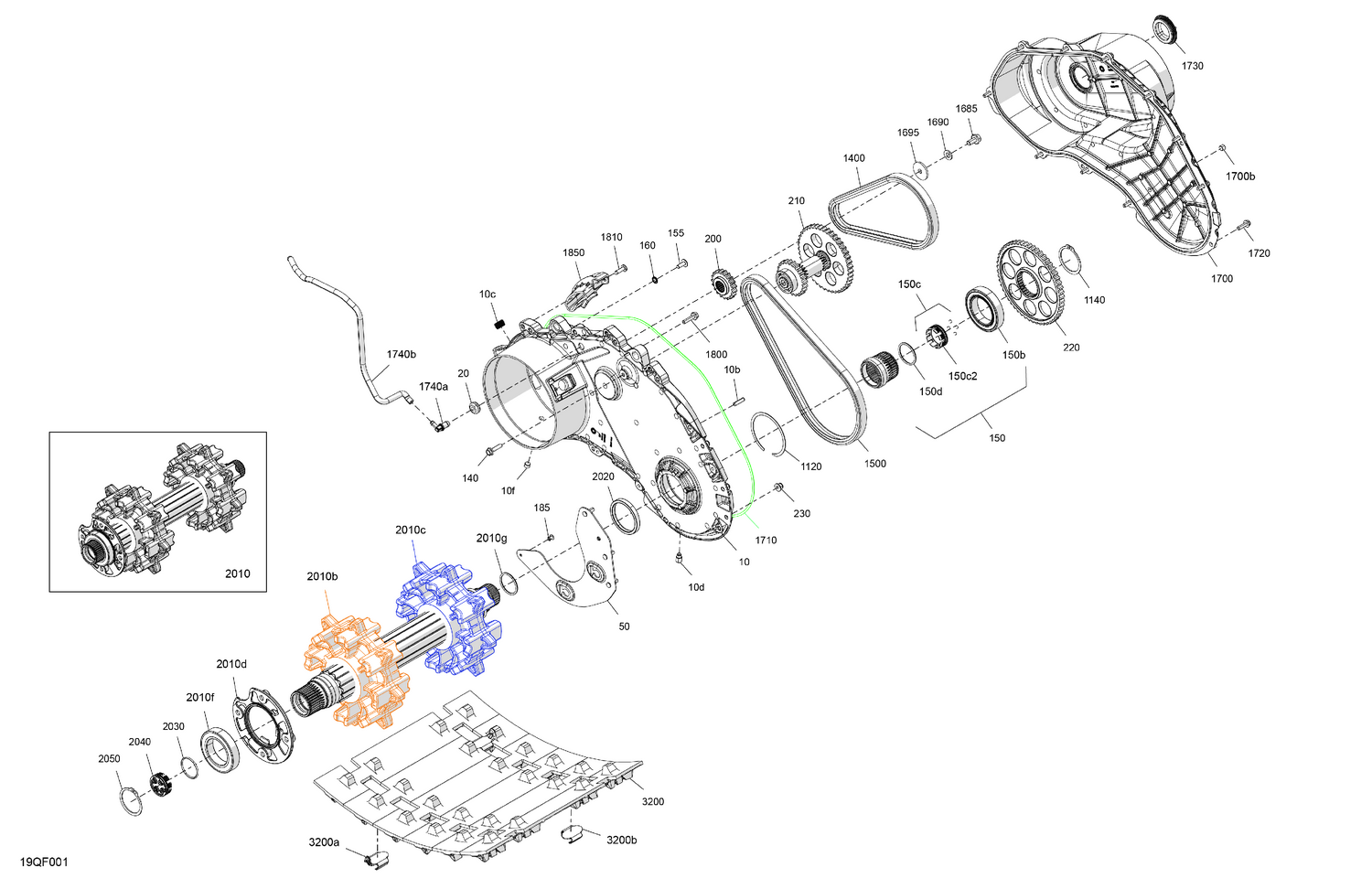

04- Drive - System
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 250400068 | Dowel Pin |
| 10c | 250500015 | Cap |
| 10d | 504153704 | Magnetic Plug |
| 10f | 250500013 | Hex. Countersunk Drain Plug |
| 20 | 414036300 | Grommet |
| 50 | 504154615 | Plate Ass'y |
| 140 | 207562544 | Hex. Flange Screw M6 X 25 |
| 150b | 293350142 | Ball Bearing |
| 150c2 | 504154043 | Cap |
| 150d | 293300291 | O-Ring Seal |
| 155 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 160 | 250200114 | Sealing Washer |
| 185 | 293150203 | Avibulb Rivet 4.8 X 14.7 |
| 210 | 504154501 | Junction Shaft |
| 220 | 504154694 | Sprocket 53 Teeth |
| 230 | 233261434 | Flanged Elastic Nut M6 |
| 1120 | 504152582 | Circlip |
| 1140 | 504152572 | Circlip |
| 1400 | 504154498 | Silent Chain 68 Links |
| 1500 | 504154607 | Silent Chain 84 Links |
| 1685 | 207581646 | Hex. Flange Screw M8 X 16, Scotch Grip |
| 1690 | 250200146 | Conical Spring Washer M8 |
| 1695 | 250200158 | Washer |
| 1700b | 250500013 | Hex. Countersunk Drain Plug |
| 1710 | 293300295 | O-Ring Seal |
| 1720 | 250001153 | Flanged Hex. Screw M6X20 |
| 1730 | 504153329 | Cap |
| 1740a | 414580700 | Male Connector |
| 1740b | 219704410 | Hose |
| 1800 | 207562544 | Hex. Flange Screw M6 X 25 |
| 1810 | 250001012 | Torx T-30 Pan HD Taptite M6X20 |
| 1850 | 504154936 | Grommet |
| 2010b | 504154910 | LH Sprocket Wheel 8 Teeth |
| 2010c | 504154911 | RH Sprocket Wheel 8 Teeth |
| 2010d | 504154417 | Retaining Ring |
| 2010f | 293350059 | Ball Bearing |
| 2010g | 293300291 | O-Ring Seal |
| 2020 | 293200159 | Oil Seal |
| 2030 | 293300201 | O-Ring |
| 2040 | 504154043 | Cap |
| 2050 | 504152572 | Circlip |
| 3200a | 415130661 | Clip |
