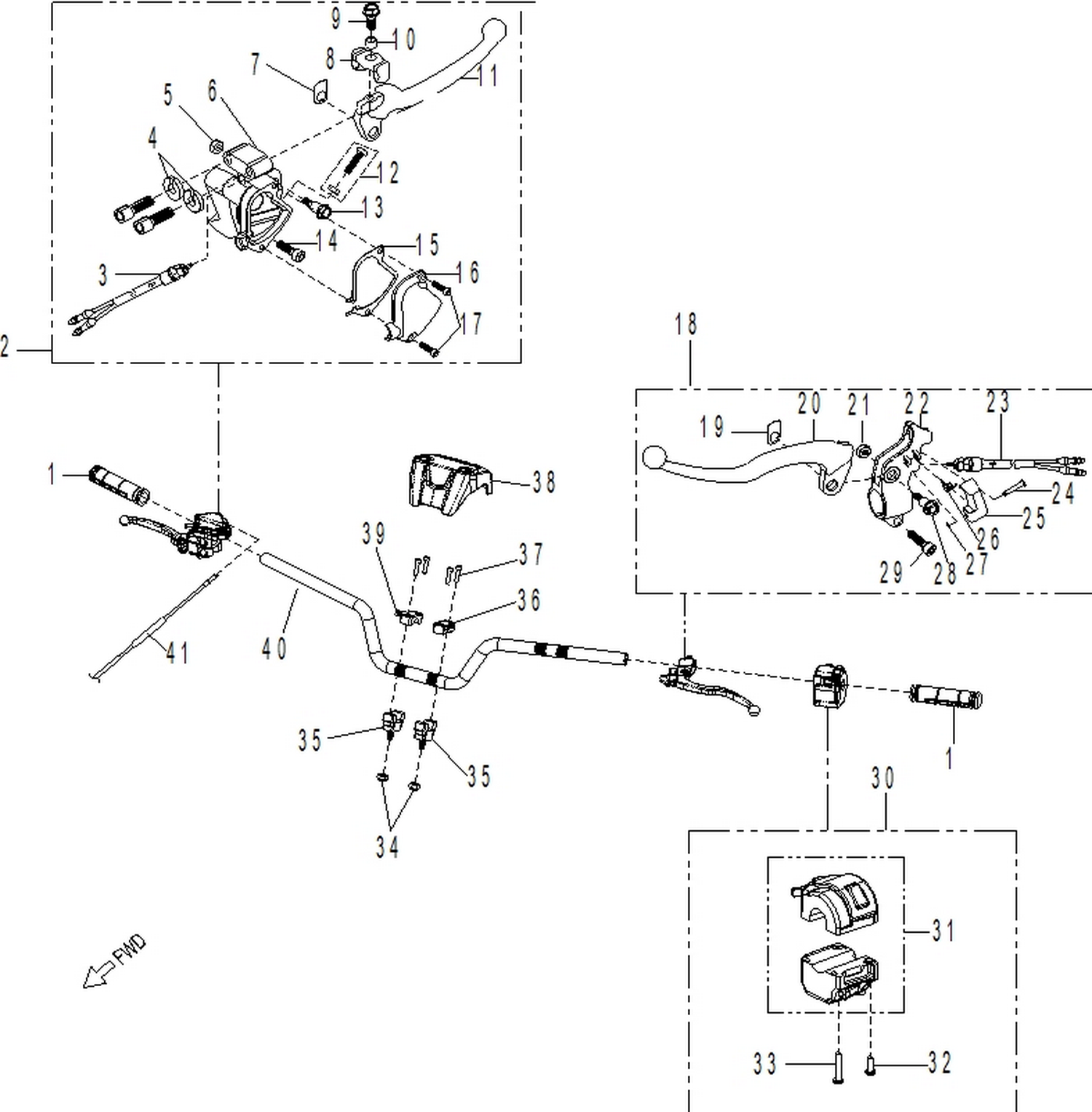

03- Mechanic - Handlebar XXC
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A5316720100A | Handle Grip |
| 2 | XXX | Not Available As Spare Parts |
| 3 | A53174204000 | RH Stop Switch |
| 4 | A1611306N000 | Adjusting Nut, RH Brake Housing |
| 5 | A903550600003K | Lock Nut M6 (W / Spring Plate) This part replaces A90350060000K3. |
| 6 | A53176206000 | RH Control Housing |
| 7 | A5319906N000 | Wavy Washer |
| 8 | A53177131000 | Cable Fixture, RH Brake Housing |
| 9 | A9600006016803K | Hex. Flange Screw M6 X 16 |
| 10 | A4281006N000 | Spacer |
| 11 | A53175131000 | RH Brake Lever |
| 12 | A88310T91000 | Bolt Ass'y |
| 13 | A9011509022800 | Fixing Bolt, RH Brake Lever |
| 14 | A9100006020803K | Allen Screw M6 X 20 |
| 15 | A53203010000 | Gasket, RH Control Housing |
| 16 | A53202010000 | Cap, RH Control Housing |
| 17 | A9350004016803K | Phillips Screw M4 X 16 |
| 18 | XXX | Not Available As Spare Parts |
| 19 | A5319906N000 | Wavy Washer |
| 20 | A53178131000 | LH Brake Lever |
| 21 | A903550600003K | Lock Nut M6 (W / Spring Plate) This part replaces A90350060000K3. |
| 22 | A5319406N001 | LH Control Housing |
| 23 | A53173207000 | LH Stop Switch |
| 24 | A2133306N000 | Dowel Pin |
| 25 | A53179205000 | LH Hand Brake BLock |
| 26 | A43421157000 | Return Spring, LH Brake Lever |
| 27 | A945130200E | E Clip |
| 28 | A9011606023803K | Fixing Bolt, LH Brake Lever |
| 29 | A9100006020803K | Allen Screw M6 X 20 |
| 30 | XXX | Not Available As Spare Parts |
| 31 | A35151T91000 | Lh Multi-Fonction Switch Ass'Y This part replaces A35152T91000. |
| 32 | A935000502880K3 | Phillips Screw M5 X 28 |
| 33 | A935000504080K3 | Phillips Screw M5 X 40 |
| 34 | A90350100000C3 | Lock Nut M10 |
| 35 | A53200131000 | Handle Bar Lower Clamp |
| 36 | A53220131000 | Handle Bar Upper Clamp B |
| 37 | A910000602580K3 | Allen Screw M6 X 25 |
| 38 | A64211T91001 | Steering Cover |
| 39 | A53210131000 | Handle Bar Upper Clamp A |
| 40 | A53100T93067 | Deep Black, Handle Bar This part replaces A53100T93160. |
