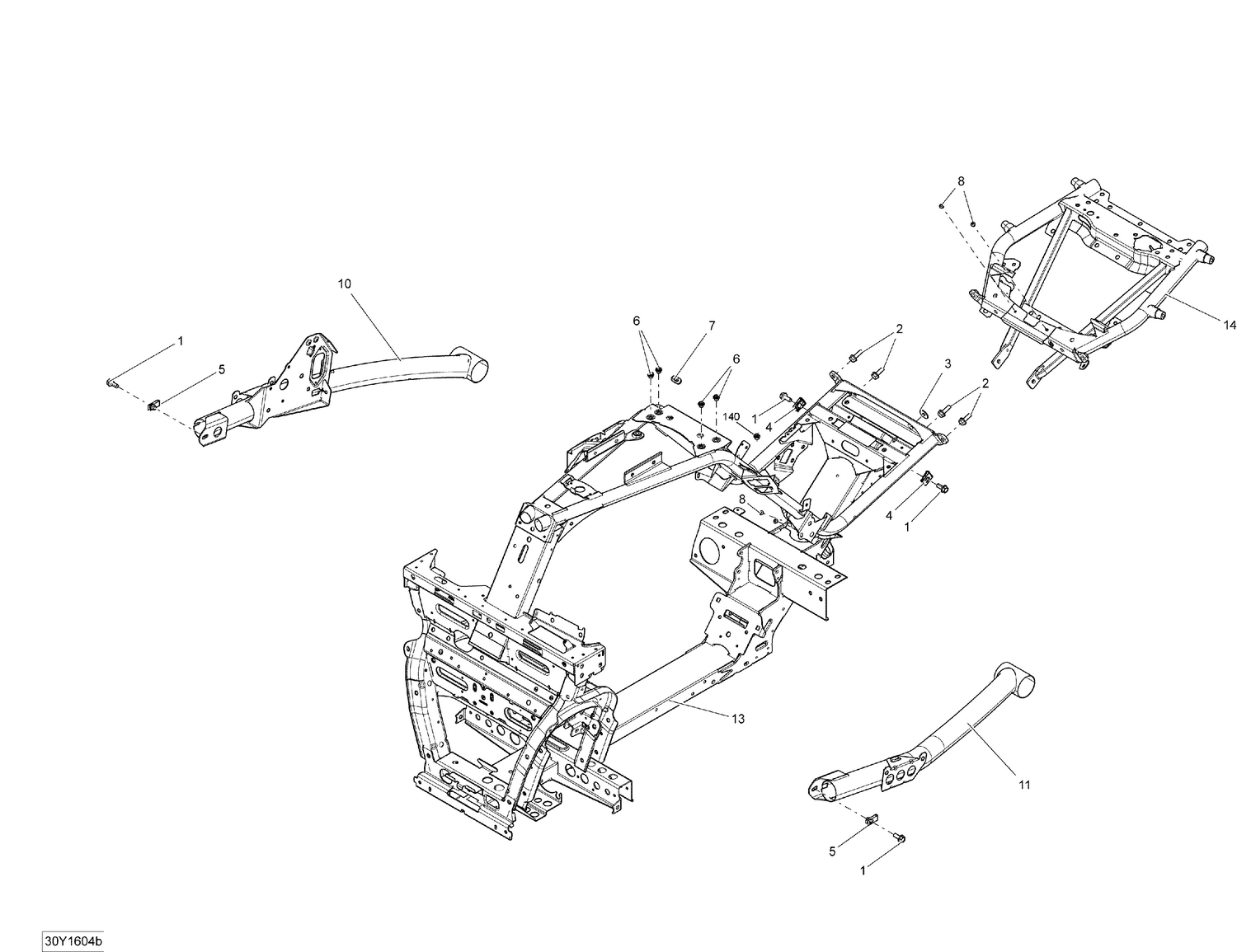

09- Frame - Except Package T, Except LTD
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207582054 | Hex Screw Washer Head M8 X 20 |
| 2 | 250001117 | Screw-Socket Cap S.Grip M8 X 30 This part replaces 205583087. |
| 3 | 506151245 | Washer |
| 4 | 250100069 | Panel Nut M8 X 1.25 |
| 5 | 250100118 | Panel Nut M8 X 1.25 |
| 6 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450232. |
| 7 | 293720062 | Grommet |
| 8 | 390402200 | Pop Rivet 3/16" |
| 13 | 705204991 | Frame |
| 14 | 219800401 | KIT PAINTED FRAME EXTENSION - Call your local BRP dealership This part replaces 705205292. |
