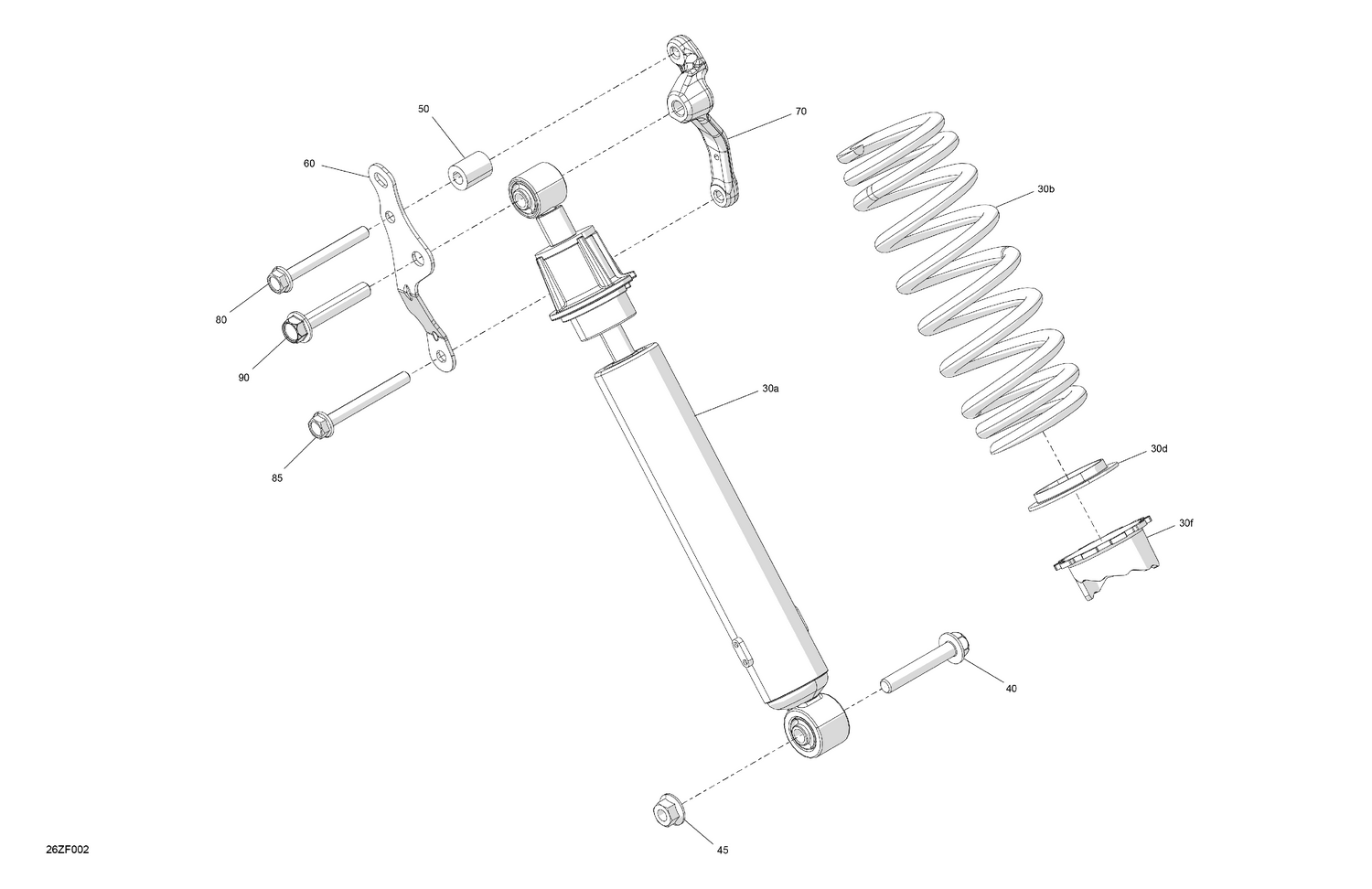

05- Suspension - Rear
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 30a | 706005449 | Rear Shock Absorber |
| 30b | 706004303 | Carbon Black, Compression Spring |
| 30d | 706003123 | Cam Adjustment |
| 30f | 503187500 | Spring Guide |
| 40 | 250001301 | Hex. Flange Screw S.Grip M10 X 60 |
| 45 | 233101464 | Hex. Elastic Flange Nut , M10 X 1.5 |
| 50 | 293900160 | Upper Spacer |
| 60 | 706005583 | LH Shock Absorber Reinforcement |
| 70 | 706005307 | RH Shock Absorber Reinforcement |
| 80 | 250001296 | Hex. Flange Screw S.Grip M8 X 75 |
| 85 | 250001296 | Hex. Flange Screw S.Grip M8 X 75 |
