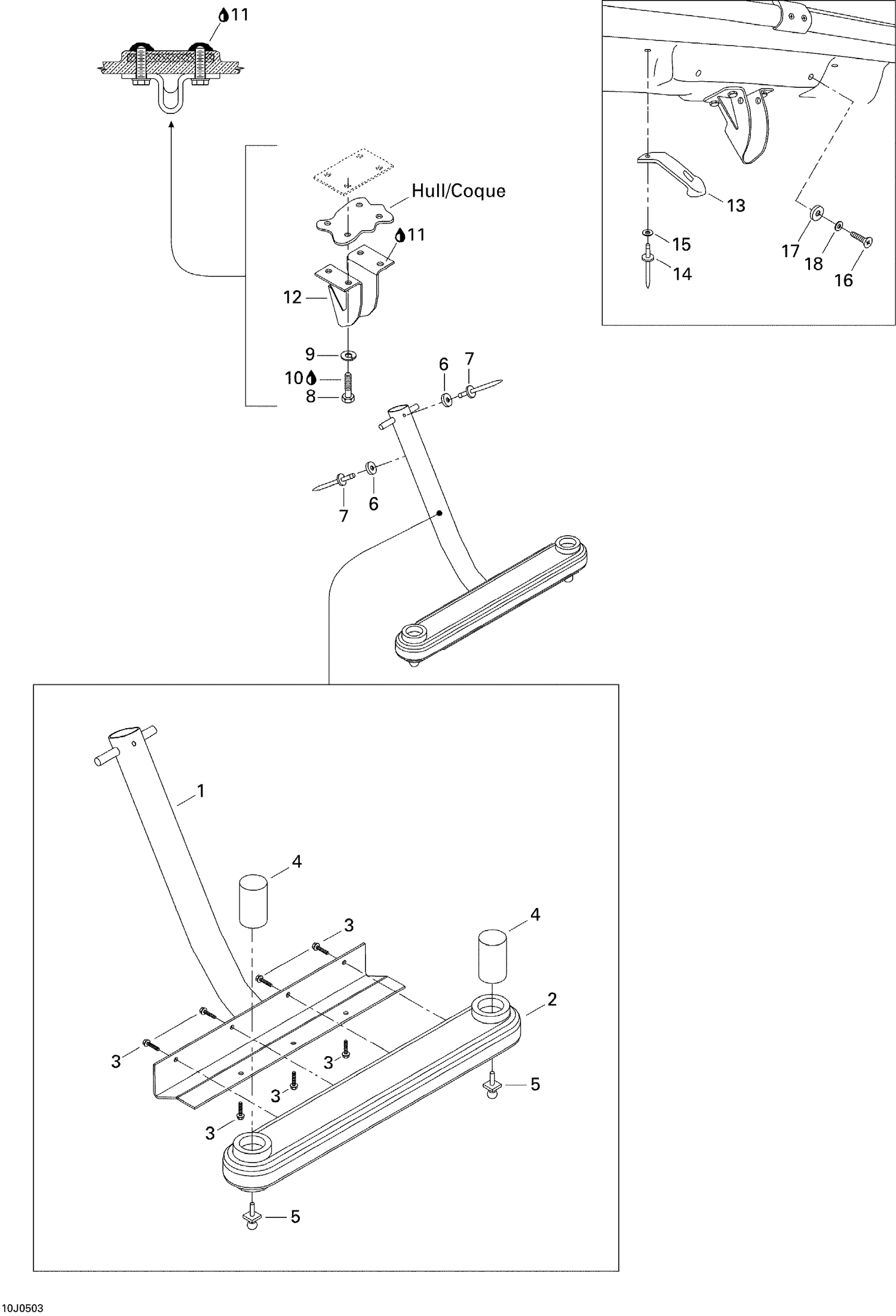

| Ref | Part Number | Description |
|---|
| 1 |
204061103 |
STEP ASS'Y - Call your local BRP dealership This part replaces 204060933. |
| 2 |
291001279 |
Step |
| 3 |
241641460 |
Flange Screw K40 X 14 |
| 4 |
291001280 |
Cap |
| 5 |
293000085 |
RETAINING KNOB - Call your local BRP dealership |
| 6 |
204073815 |
BUMPER PAD - Call your local BRP dealership This part replaces 204070760. |
| 7 |
293150055 |
RIVET_POP 3/16 - Call your local BRP dealership |
| 8 |
207183060 |
Hex. Screw M8 X 30 |
| 9 |
234180602 |
Lock Spring Washer 8 mm, Stainless |
| 10 |
293800060 |
Loctite 243, 10 ml |
| 11 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 12 |
204060956 |
Ladder Bracket |
| 13 |
570027100 |
Hood Latch |
| 14 |
293150013 |
Pop Rivet 3/16" |
| 15 |
234052600 |
Flat Washer 5 mm, Stainless |
| 16 |
204100147 |
PHILLIPS SCREW 6 X 1/2 - Call your local BRP dealership |
| 17 |
204073815 |
BUMPER PAD - Call your local BRP dealership This part replaces 204070760. |
