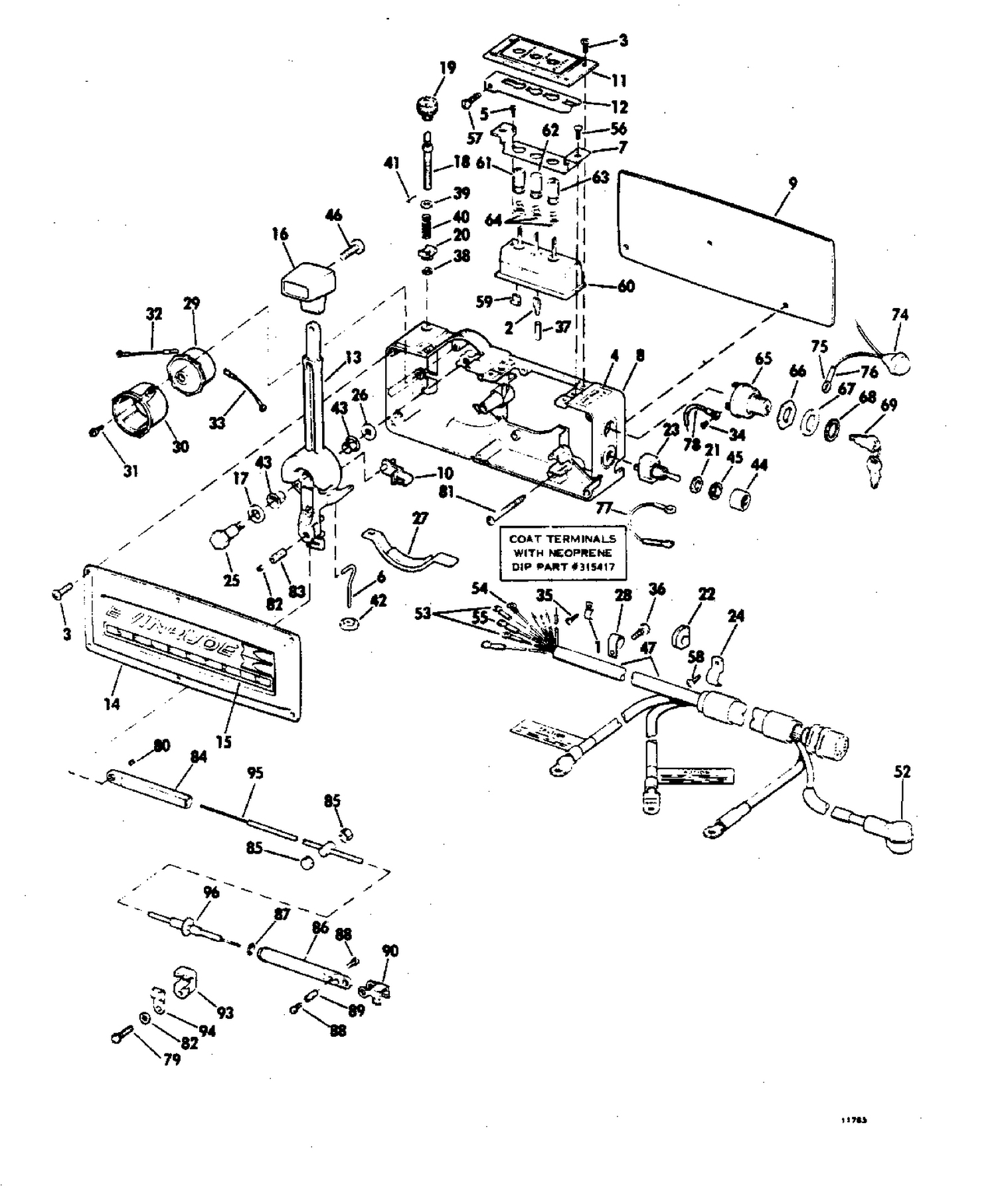

| Ref | Part Number | Description |
|---|
| 2 |
0510469 |
TAB |
| 3 |
0205038 |
SCREW, Cover plate |
| 4 |
0206426 |
TRANSFER, Choke inst |
| 6 |
0205046 |
SPRING, Roller |
| 7 |
0205161 |
BRACKET, Selector switch |
| 8 |
0206699 |
HOUSING |
| 9 |
0206401 |
SIDE PLATE, Rear |
| 10 |
0206402 |
ADJUSTMENT LINK |
| 11 |
0206403 |
COVER PLATE, Pushbotton |
| 12 |
0206404 |
YOKE, Pushbotton |
| 13 |
0206700 |
THROTTLE LEVER |
| 14 |
0279308 |
SIDE PLATE ASSEMBLY |
| 15 |
0206406 |
PLATE, Front |
| 16 |
0206709 |
KNOB, Throttle lever |
| 17 |
0206414 |
LOCKWASHER, Pivot screw |
| 18 |
0206415 |
FRICTION ADJUSTING SCREW |
| 19 |
0206416 |
KNOB, Adj. screw |
| 20 |
0206417 |
NUT FRICTION ADJUNSTMENT SCREW |
| 22 |
0206420 |
GROMMET, Cable |
| 23 |
0279175 |
CHOKE SWITCH ASSEMBLY |
| 25 |
0206409 |
PIVOT SCREW |
| 27 |
0279171 |
ARM & PAD ASSY |
| 29 |
0585992 |
HORN This part replaces 0279336. |
| 30 |
0206701 |
MOUNTING BRACKET, Honr |
| 31 |
0316571 |
SCREW |
| 32 |
0279337 |
LEAD, Horn to cable |
| 33 |
0279340 |
LEAD, Horn to switch |
| 36 |
0305230 |
SCREW |
| 39 |
0316166 |
WASHER |
| 40 |
0307025 |
SCREW,Friction adjusting screw |
| 42 |
0308517 |
ROLLER, Lever to box |
| 46 |
0308038 |
VIS, butée de ralenti |
| 47 |
0279455 |
INSTRUMENT CABLE, Std |
| 47 |
0279457 |
INSTRUMENT CABLE, Long |
| 56 |
0308544 |
SCREW, Bracket to box |
| 57 |
0308546 |
LINK,Adjustment |
| 60 |
0279458 |
SELECTOR SWITCH ASSY |
| 61 |
0309556 |
BUTTON, Forward |
| 62 |
0309559 |
BUTTON, Neutral |
| 63 |
0309560 |
BUTTON, Reverse |
| 64 |
0309590 |
SPRING, Pushbotton |
| 65 |
0386947 |
IGNITION SWITCH This part replaces 0383493. |
| 69 |
KEY, |
Ignition |
| 74 |
0279176 |
BLOCKING DIODE ASSEMBLY |
| 77 |
0279177 |
LEAD ASSEMBLY IGNITION SWITCH TO CHOKE SWITC |
| 78 |
0581002 |
LEAD, Ignition to shift switch |
| 79 |
0310686 |
SCREW |
| 80 |
0303317 |
SCREW |
| 81 |
0205040 |
SCREW, Housing to boat |
| 82 |
0310688 |
SAPCER, Anchor block |
| 83 |
0385959 |
CLAMP & SET SC R.ASSY. This part replaces 0206423. |
| 84 |
0206408 |
CASE GUIDE,Control hsg. |
| 87 |
0307063 |
O RING |
| 88 |
0173506 |
SCREW This part replaces 0303285. |
| 89 |
0173506 |
SCREW This part replaces 0303222. |
| 93 |
0310685 |
ABCHOR BLCOK, Trunnion |
| 94 |
0310687 |
DETENT SPRING, Anchor block |
| 95 |
THROTTLE |
CABLE, 5 thru 50 |
| 0279452 |
0279452 |
REMOTE CONTROL ASSY |
