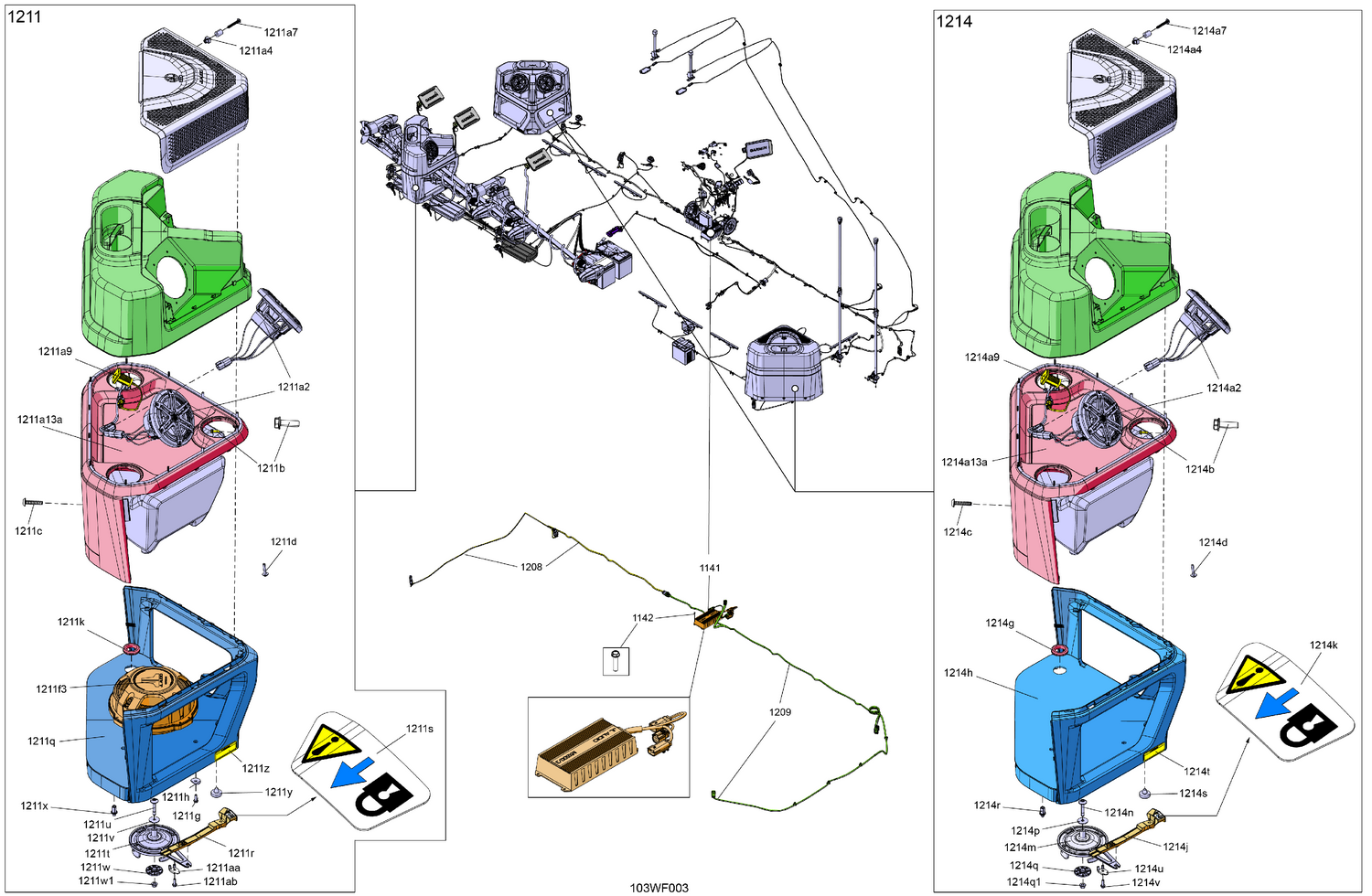

08- ELECTRIC - Audio System
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1141 | 278004685 | Audio Amplifier |
| 1142 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 1208 | 278004527 | Audio Device Wiring Harness |
| 1209 | 278004528 | Audio Device Wiring Harness |
| 1211a13a | 269003533 | Top Corner Table |
| 1211a2 | 278003939 | Loudspeaker |
| 1211a4 | 291003793 | Insert |
| 1211a7 | 250001191 | Plastite Torx Screw Cone HD. M6.81X4 |
| 1211a9 | 278004003 | Usb Port |
| 1211aa | 269004160 | Guide |
| 1211ab | 243162060 | Hex. Flange Screw M6.81 x 20 |
| 1211b | 243162060 | Hex. Flange Screw M6.81 x 20 |
| 1211c | 250000879 | Plastite Torx Screw M6.81X30 |
| 1211d | 250000399 | Hexagonal Cap Screw M6 X35 |
| 1211f3 | 278003964 | Bass Loudspeaker |
| 1211g | 243162060 | Hex. Flange Screw M6.81 x 20 |
| 1211h | 279000326 | Flat Washer |
| 1211k | 293720118 | Grommet 1-5/16" |
| 1211q | 269003315 | Corner Table Base |
| 1211r | 295101126 | Lever Latch Service Kit |
| 1211s | 219905993 | Lever Decal |
| 1211t | 269003311 | Seat Anchorage |
| 1211u | 250001154 | Torx Head M8 X 50 S.GRIP |
| 1211v | 250200130 | Flat Washer 8 mm |
| 1211w1 | 233181600 | Hex. Flange Nut M8 |
| 1211x | 269003492 | Locator Rod |
| 1211y | 269003502 | Rubber Stopper |
| 1211z | 219905883 | Seat Anchorage Warning Label |
| 1214a13a | 269003533 | Top Corner Table |
| 1214a2 | 278003939 | Loudspeaker |
| 1214a4 | 291003793 | Insert |
| 1214a7 | 250001191 | Plastite Torx Screw Cone HD. M6.81X4 |
| 1214a9 | 278004003 | Usb Port |
| 1214b | 243162060 | Hex. Flange Screw M6.81 x 20 |
| 1214c | 250000879 | Plastite Torx Screw M6.81X30 |
| 1214d | 250000399 | Hexagonal Cap Screw M6 X35 |
| 1214g | 293720118 | Grommet 1-5/16" |
| 1214h | 269003315 | Corner Table Base |
| 1214j | 295101126 | Lever Latch Service Kit |
| 1214k | 219905993 | Lever Decal |
| 1214m | 269003311 | Seat Anchorage |
| 1214n | 250001154 | Torx Head M8 X 50 S.GRIP |
| 1214p | 250200130 | Flat Washer 8 mm |
| 1214q1 | 233181600 | Hex. Flange Nut M8 |
| 1214r | 269003492 | Locator Rod |
| 1214s | 269003502 | Rubber Stopper |
| 1214t | 219905883 | Seat Anchorage Warning Label |
| 1214u | 269004160 | Guide |
