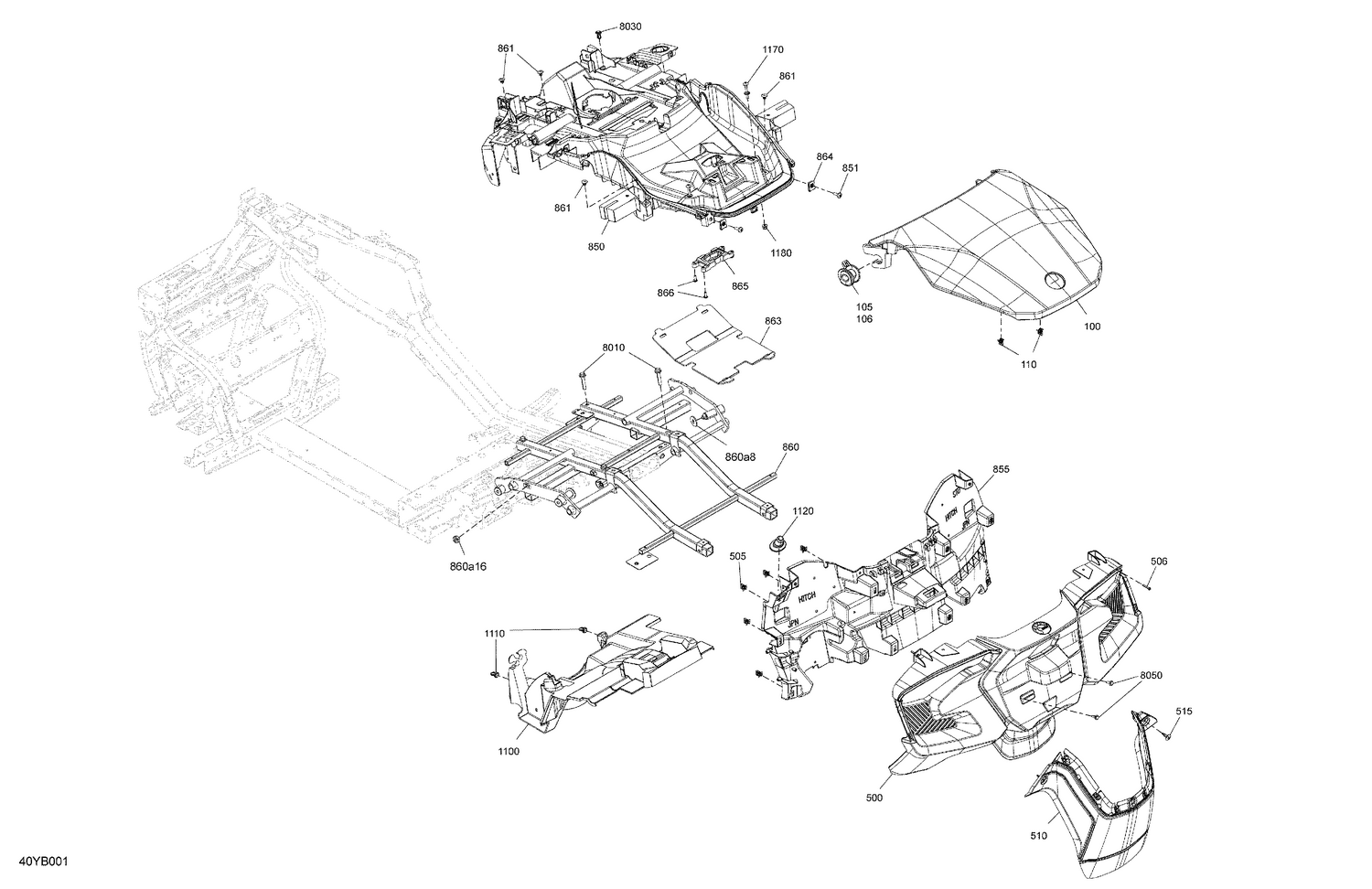

07- Body - Cargo Structure And Rear Fenders
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 708003404 | Hyper Silver, Rear Fairing |
| 105 | 708400404 | LH Anchorage Socket |
| 106 | 708400441 | RH Anchorage Socket |
| 110 | 517302785 | Edge Clip |
| 500 | 708302949 | Rear Fender |
| 505 | 517302785 | Edge Clip |
| 506 | 241142560 | Hex. Flange Screw K40 X 25 |
| 510 | 708301747 | Rear Fender Extention |
| 515 | 414745900 | Tuflock Phillips Plastic Screw |
| 850 | 708303979 | Rear Box Support |
| 851 | 250000705 | Torx Truss Screw M6 X 20 |
| 855 | 708303308 | Rear Cargo Structure |
| 860a16 | 233701400 | Hexagonal Nut |
| 860a8 | 234002600 | Flat Washer 10 mm, Stainless |
| 861 | 293150103 | Pop Rivet 3/16" |
| 863 | 708400407 | Rubber Protector |
| 864 | 250100208 | Panel Nut M6 X 1.0 |
| 865 | 708303172 | LinQ Fastener |
| 866 | 250000763 | Torx-Truss M/S M5 X 14 S.Grip |
| 1100 | 708303061 | Rear Wheel Arch |
| 1110 | 293150230 | Tuflok Plastic Rivet |
| 1120 | 708303169 | Antenna Cap |
| 1170 | 708303392 | Striker |
| 1180 | 233261494 | Hex. Flange Elastic Nut M6 |
| 8010 | 207684054 | Hex. Flange Screw M8 X 40 |
| 8030 | 293150230 | Tuflok Plastic Rivet |
