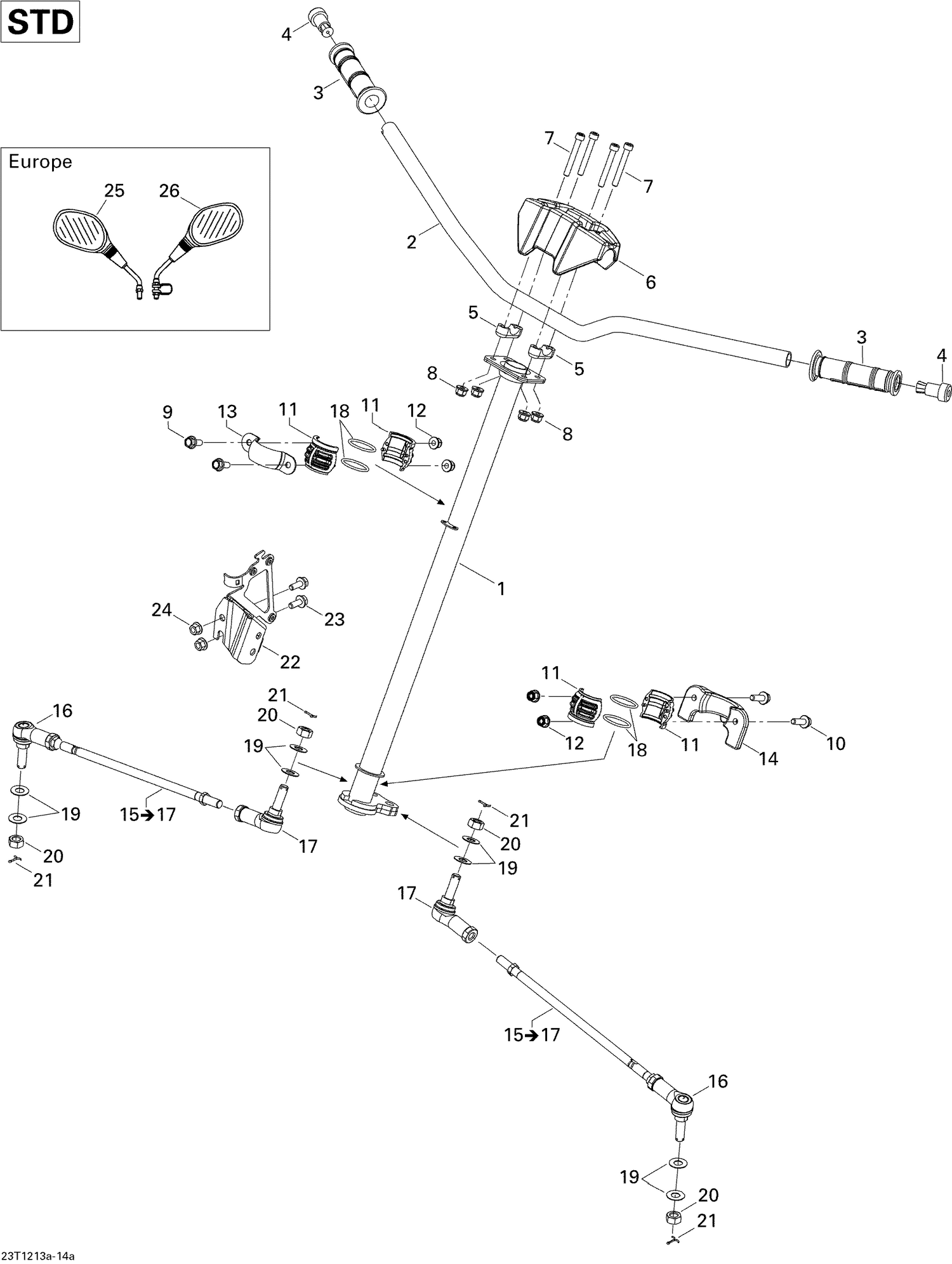

07- Steering STD
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 709401008 | Main Tube |
| 2 | 709401242 | Handlebar This part replaces 709400880. |
| 3 | 709400493 | Handle Grip |
| 4 | 709400449 | End Piece |
| 5 | 709400919 | Steering Support |
| 6 | 709400920 | SUPPORT - Call your local BRP dealership |
| 7 | 205086060 | Socket Head Screw M8 X 60 |
| 8 | 233281416 | Hex. Elastic Flange Nut M8 |
| 9 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 10 | 207682544 | Hex. Flange Screw M8 X 25 |
| 11 | 709400783 | Spherical Half Bushing |
| 12 | 233281414 | Hex. Flange Elastic Nut M8 |
| 13 | 709400827 | Upper Column Attachment |
| 14 | 709401428 | Column Attachment This part replaces 709400912. |
| 16 | 709402303 | LH Ball Joint This part replaces 709400486. |
| 17 | 709402302 | RH Ball Joint This part replaces 709400490. |
| 18 | 293300068 | O-Ring |
| 19 | 706200281 | Hardened Washer |
| 20 | 250100099 | Nut M12 |
| 21 | 211400013 | Cotter Pin |
| 22 | 709400994 | RH STEERING BRACKET - Call your local BRP dealership |
| 23 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 24 | 233081416 | Hex. Flange Nut M8 |
