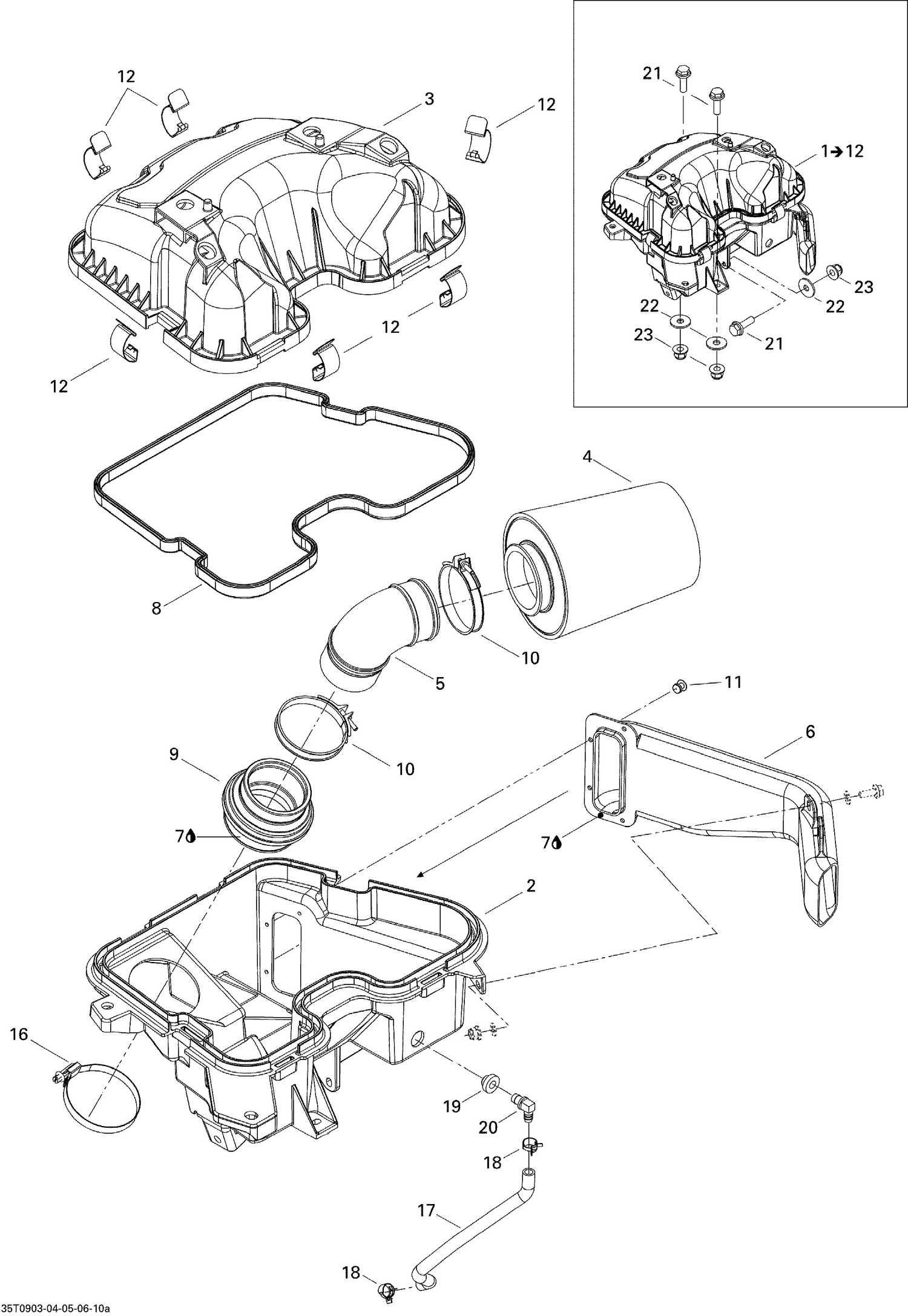

02- Air Intake Silencer
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 707800173 | Intake Silencer Base |
| 3 | 707800252 | Intake Silencer Cover |
| 4 | 707800174 | Air Filter |
| 5 | 707800270 | RIGID ADAPTOR - Call your local BRP dealership |
| 6 | 707800175 | FRONT INTAKE ADAPTOR - Call your local BRP dealership |
| 7 | 293800081 | Loctite 5910, 300 ml |
| 8 | 707800197 | Oil Seal |
| 9 | 707800177 | INTAKE ADAPTOR - Call your local BRP dealership |
| 10 | 293650175 | Clamp |
| 11 | 390402000 | Pop Rivet 3/16" |
| 12 | 707800231 | COVER BRACKET - Call your local BRP dealership |
| 16 | 293650091 | Norma Clamp |
| 17 | 707800206 | VENT HOSE - Call your local BRP dealership |
| 18 | 293650110 | Norma Clamp |
| 19 | 707800347 | Grommet This part replaces 570273900. |
| 20 | 414523600 | Elbow Fitting |
| 21 | 207662544 | Hex. Flange Screw M6 X 25 |
| 22 | 250200082 | Flat Washer This part replaces 391302000. |
