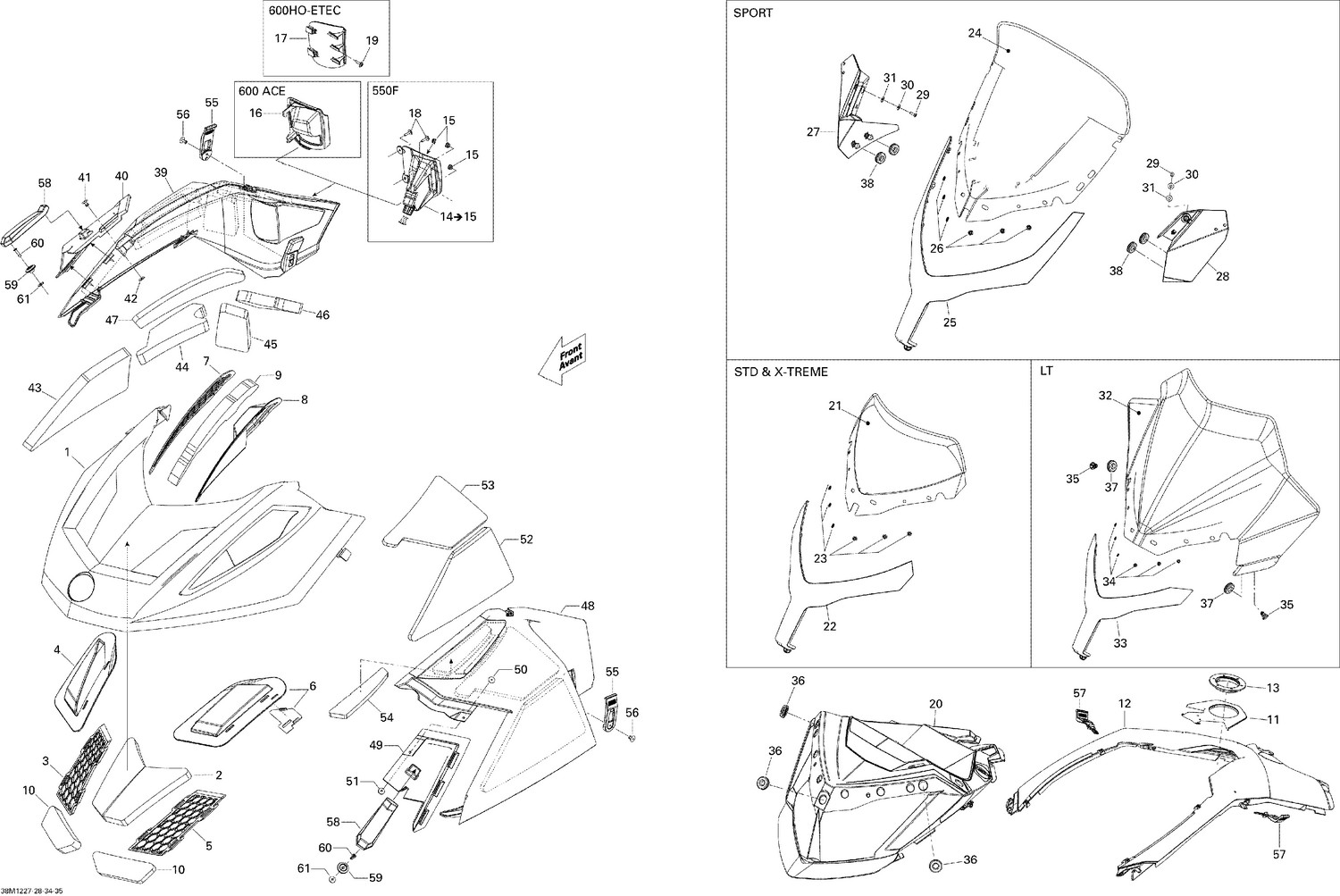

09- Hood, Windshield And Console
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517304070 | HOOD B-190 - Call your local BRP dealership |
| 4 | XXX | Not Available As Spare Parts |
| 6 | XXX | Not Available As Spare Parts |
| 8 | XXX | Not Available As Spare Parts |
| 9 | XXX | Not Available As Spare Parts |
| 10 | XXX | Not Available As Spare Parts |
| 11 | 517304027 | Deep Black, Cap Console |
| 12 | 517304206 | CONSOLE B-190 - Call your local BRP dealership |
| 13 | 517304518 | Console Nut |
| 16 | XXX | Not Available As Spare Parts |
| 17 | XXX | Not Available As Spare Parts |
| 19 | XXX | Not Available As Spare Parts |
| 36 | 517303756 | Grommet |
| 39 | 517304071 | PANEL_BODY RH B-190 - Call your local BRP dealership |
| 40 | 517304090 | RH Insert |
| 41 | 293150104 | Pop Rivet 3/16" |
| 42 | 517124300 | Washer |
| 43 | 517304870 | Foam |
| 44 | 517304871 | Foam |
| 45 | XXX | Not Available As Spare Parts |
| 46 | XXX | Not Available As Spare Parts |
| 47 | XXX | Not Available As Spare Parts |
| 49 | 517304092 | LH Panel Insert |
| 50 | 293150104 | Pop Rivet 3/16" |
| 51 | 517124300 | Washer |
| 52 | 517304874 | Foam |
| 53 | 517304875 | Foam |
| 55 | 517304999 | Rear Panel Latch |
| 56 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 57 | 517304093 | Center Panel Latch |
| 58 | 517305186 | Front Latch Panel This part replaces 517304094. |
| 59 | 517304320 | Anchor Link |
| 60 | 293150014 | Pop Rivet 3/16" |
