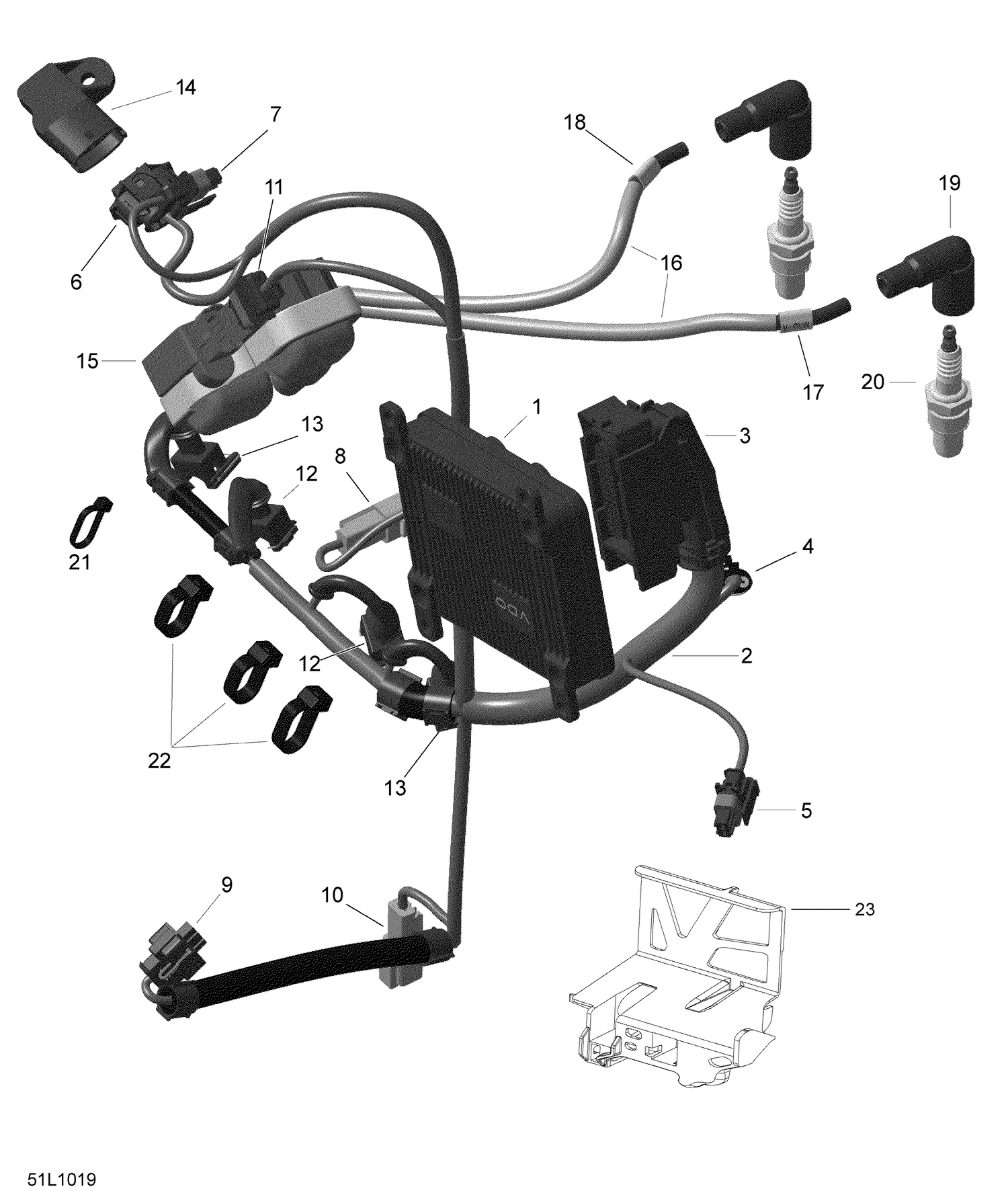

| Ref | Part Number | Description |
|---|
| 1 |
420665874 |
Electronic Box |
| 2 |
420665450 |
ENGINE WIRING HARNESS ASS'Y - Call your local BRP dealership |
| 3 |
420664450 |
ECM Connector |
| 4 |
Not |
Available As Spare Part - Connector EGT |
| 5 |
Not |
Available As Spare Part - Connector HIC |
| 6 |
Not |
Available As Spare Part - Connector APTS |
| 7 |
Not |
Available As Spare Part - Connector Knock sensor |
| 8 |
Not |
Available As Spare Part - Connector WTS |
| 9 |
Not |
Available As Spare Part - Connector TBS |
| 10 |
Not |
Available As Spare Part - Connector CPS |
| 11 |
Not |
Available As Spare Part - Connector Ignition coil |
| 12 |
Not |
Available As Spare Part - Connector injector |
| 13 |
Not |
Available As Spare Part - Connector injector |
| 14 |
707000995 |
Pressure And Temperature Sensor This part replaces 707000564. |
| 15 |
278001546 |
Ignition Coil |
| 16 |
420664302 |
SPARK PLUG CABLE, 190 MM - Call your local BRP dealership |
| 17 |
420660632 |
SLEEVE, MAG SIDE - Call your local BRP dealership |
| 18 |
420660630 |
SLEEVE, PTO SIDE - Call your local BRP dealership |
| 19 |
278000237 |
SPARK PLUG CAP - Call your local BRP dealership |
| 20 |
512060029 |
Spark Plug NGK BR8ECS |
| 21 |
420866714 |
Tie Rap |
| 22 |
420866716 |
Tie-Rap |
