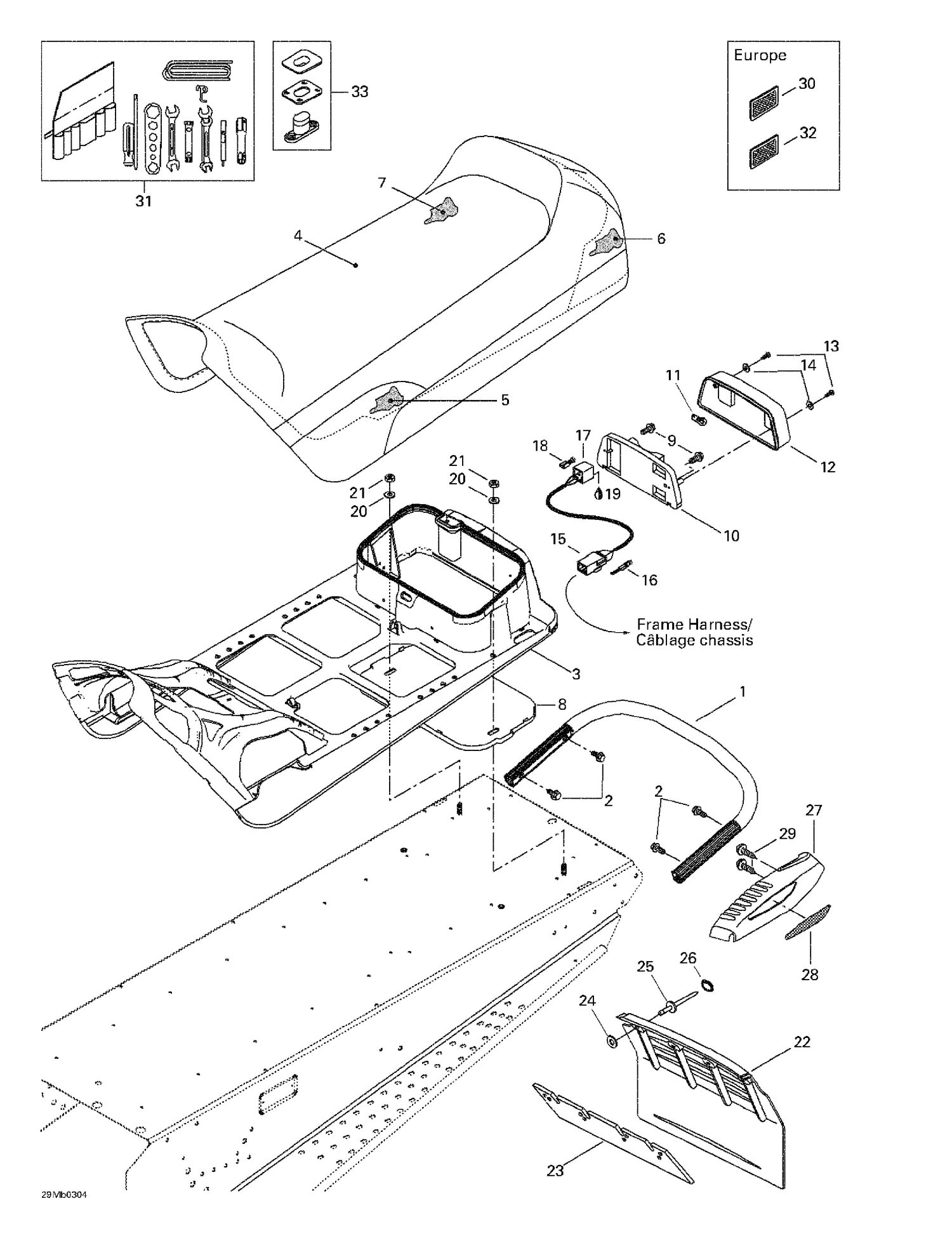

| Ref | Part Number | Description |
|---|
| 1 |
518322708 |
REAR BUMPER - Call your local BRP dealership |
| 2 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 3 |
510003983 |
Seat Base |
| 5 |
510003944 |
SEAT FOAM - Call your local BRP dealership |
| 6 |
510003945 |
Rear Seat Foam |
| 7 |
510004032 |
Seat Foam |
| 8 |
572107601 |
UNDER CHEST - Call your local BRP dealership |
| 9 |
732603006 |
Hex. Screw #10 X 1" |
| 10 |
510004061 |
LIGHT HOUSING - Call your local BRP dealership |
| 11 |
520000758 |
Bulb This part replaces 410504100. |
| 12 |
414513700 |
Lens |
| 13 |
209632540 |
Phillips Tapping Screw M3.9 X 25 |
| 14 |
414516400 |
Washer - Call your local BRP dealership |
| 15 |
515175494 |
Male Housing, 3 Circuits |
| 16 |
515175232 |
Male Terminal |
| 17 |
515175250 |
Female Terminal Housing, 3 Circuits |
| 18 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 19 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 20 |
234082410 |
Flat Washer 8 mm |
| 21 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 23 |
572108200 |
REINFORCEMENT - Call your local BRP dealership |
| 24 |
517225900 |
Flat Washer |
| 25 |
293150087 |
Pop Rivet 3/16” This part replaces 293150087. |
| 26 |
415073300 |
Cap |
| 27 |
861777700 |
RH MOULDING KIT - Call your local BRP dealership |
| 28 |
516000237 |
RH Reflector, Red |
| 29 |
243141630 |
Hex. Plastic Screw M4.8 X 16 This part replaces 243141640. |
| 30 |
520000271 |
Amber, Reflector |
| 31 |
529035881 |
Tool Kit |
| 32 |
415037900 |
White, Reflector |
| 516000238 |
LH |
Reflector, Red 516000238 |
| 516000238 |
Réflecteur |
GA, Rouge 516000238 |
| 516000241 |
Réflecteur |
DR, Jaune, Europe 516000241 |
| 516000241 |
RH |
Reflector, Yellow, Europe 516000241 |
| 516000242 |
LH |
Reflector, Yellow, Europe 516000242 |
| 516000242 |
Réflecteur |
GA, Jaune, Europe 516000242 |
| 861777800 |
LH |
Moulding Kit 861777800 |
