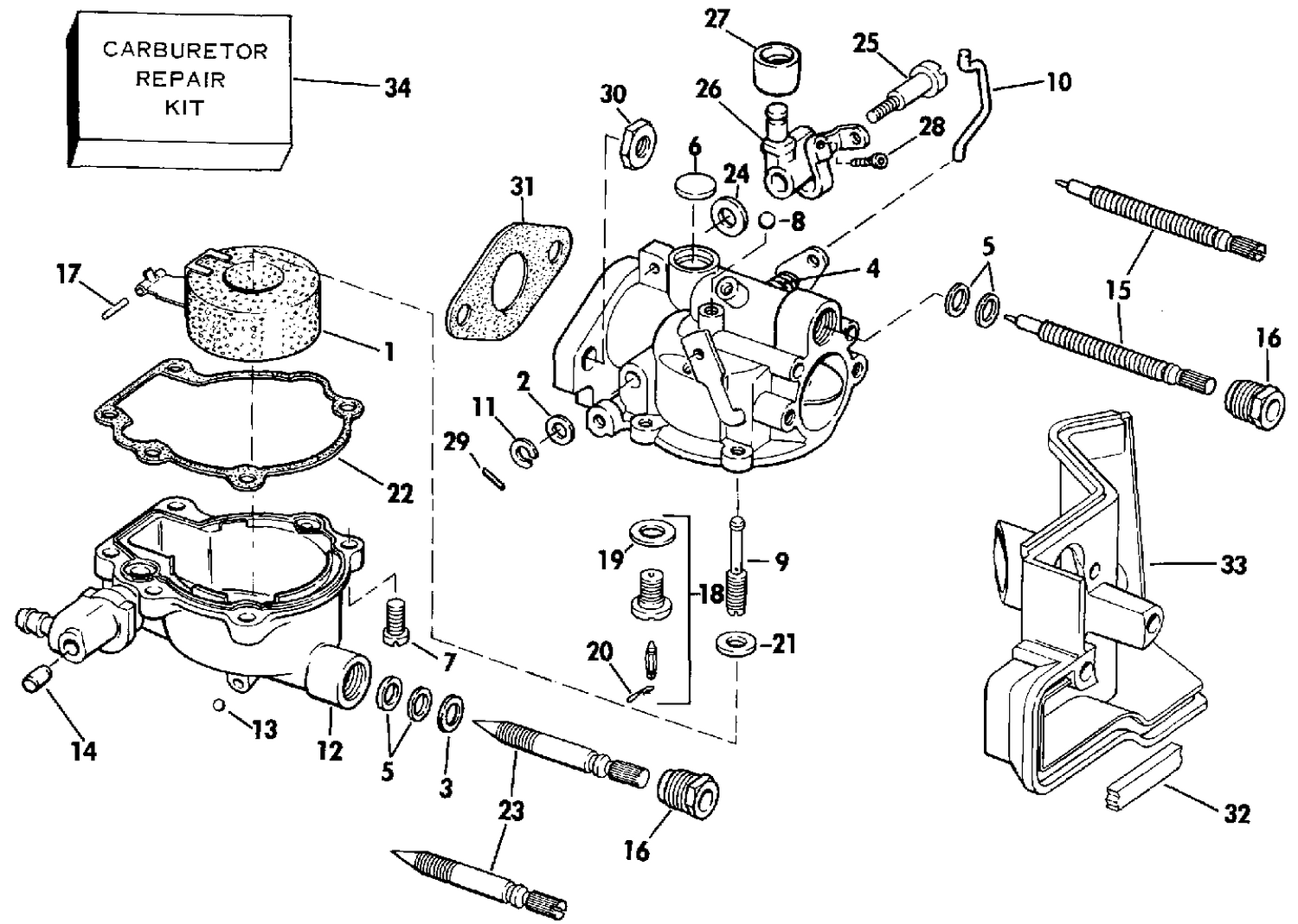

CARBURETOR
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 7 | 0330189 | SCREW |
| 9 | 0314264 | NOZZLE, High speed |
| 10 | 0330286 | LINK, Cam follower |
| 11 | 0203949 | E RING LINK This part replaces 0202755. |
| 12 | 0382999 | FLOAT CAHMBER ASSY. |
| 15 | 0392128 | NEEDLE VALVE, Low speed |
| 15 | 0431629 | NEEDLE VALVE, Low speed This part replaces 0390145. |
| 17 | 0300096 | HINGE PIN |
| 20 | 0336842 | CLIP, SPRING This part replaces 0603145. |
| 21 | 0331181 | GASKET |
| 22 | 0331203 | GASKET |
| 23 | 0316980 | NEEDLE VALVE, High speed |
| 23 | 0327461 | NEEDLE VALVE, High speed |
| 27 | 0323326 | GALET, came |
| 30 | 0328742 | NUT This part replaces 0306338. |
| 31 | 0303003 | GASKET |
| 32 | 0320406 | SEAL, Air silencer |
| 33 | 0322119 | AIR SILENCER |
| 0397386 | 0397386 | CARBURETOR ASSY. |
| 0397387 | 0397387 | CARBURETOR ASSY. |
