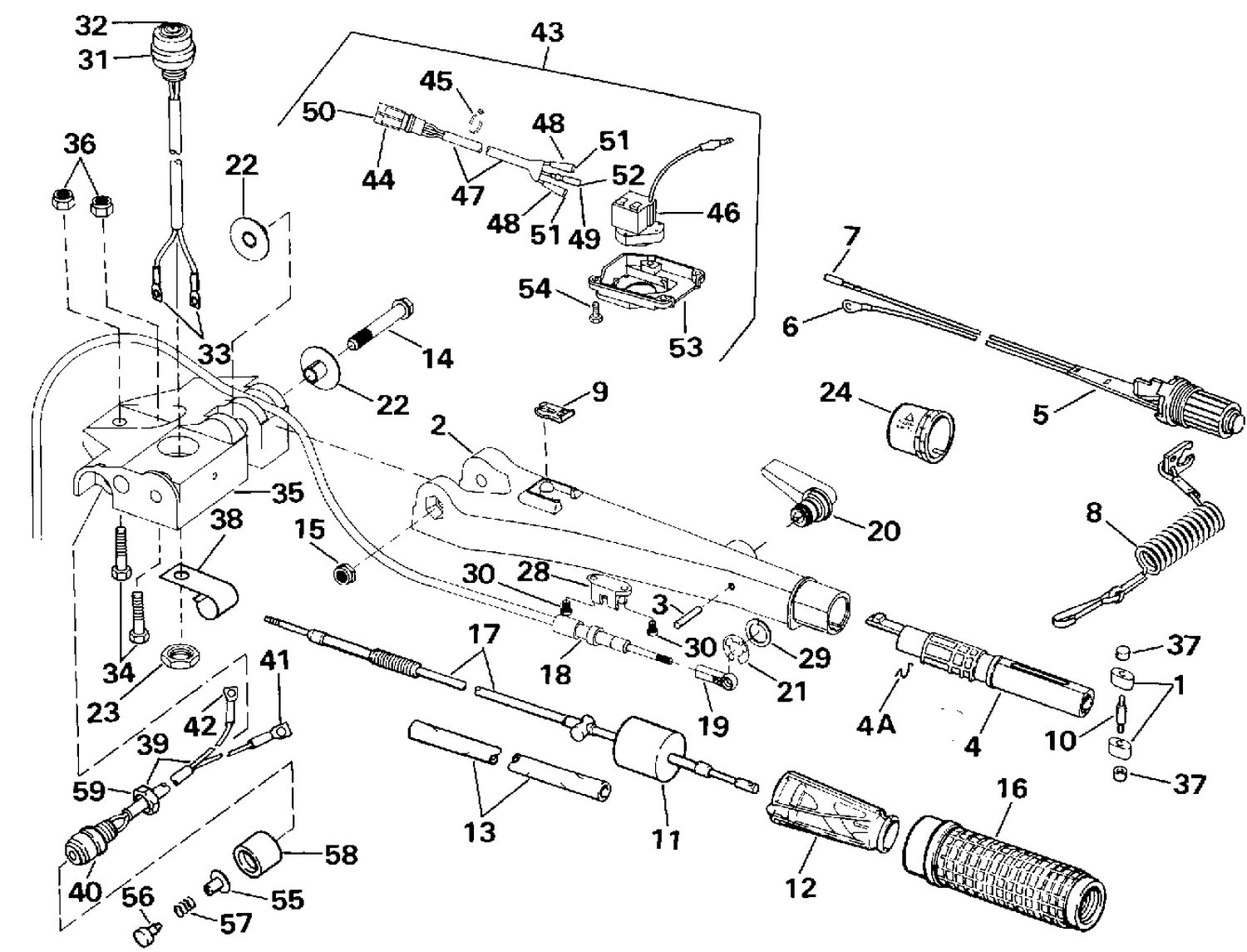

STEERING HANDLE
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 0434102 | STEERING HANDLE ASSY. This part replaces 0433516. |
| 5 | 0398692 | IDLE STOP SWITCH ASSY. This part replaces 0583974. |
| 12 | 0329882 | GRIP&HELIX AY |
| 16 | 0433657 | GRIP ASSY |
| 18 | 0434674 | CABLE AY., Tilt assist This part replaces 0432025. |
| 20 | 0431941 | LEVER |
| 21 | 0328260 | E-RING |
| 28 | 0334161 | ANCHOR BLOCK |
| 29 | 0334162 | WASHER |
| 30 | 0306014 | VIS, ancrage |
| 31 | 0583845 | PRIMER SWITCH AY |
| 35 | 0334642 | BRACKET, Steering handle |
| 43 | 0583934 | CABLE & HORN, VRO |
| 46 | 0585992 | HORN This part replaces 0584212. |
| 47 | 0583935 | CABLE ASSEMBLY |
| 49 | 0510136 | SLEEVE |
| 53 | 0334942 | COVER, Cable & horn |
| 57 | 0313584 | SPRING |
