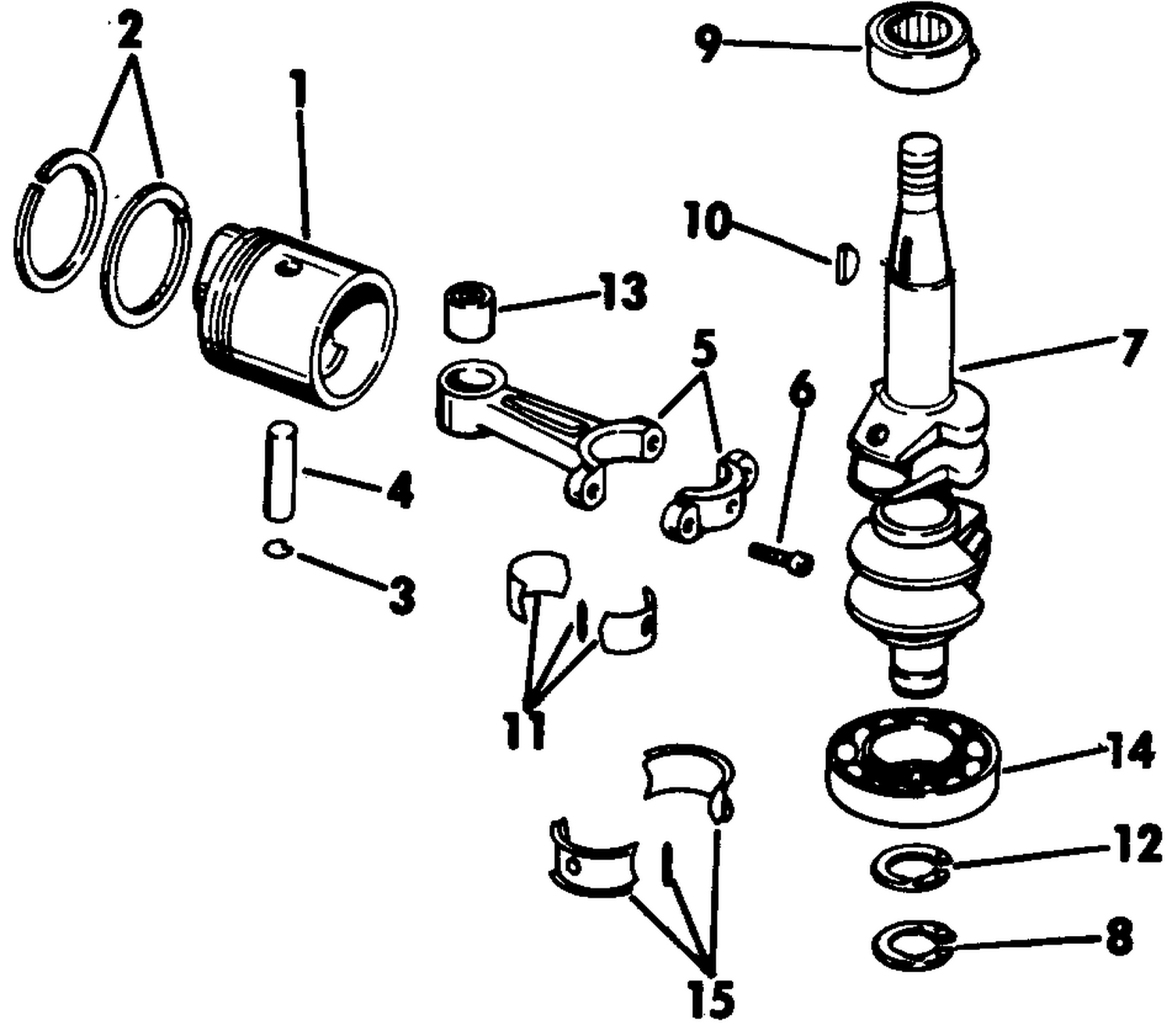

CRANKSHAFT & PISTON
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0393732 | PISTON ASSY., Std. |
| 1 | 0393799 | PISTON ASSY., .030 O.S |
| 2 | 0390082 | RING SET, Stbd. |
| 2 | 0390083 | RING SET, .030 O.S. |
| 3 | 0120110 | RETAING RING |
| 4 | 0328995 | WRIST PIN |
| 5 | 0394692 | CONNECTING ROAD ASSY. |
| 6 | 0324365 | SCREW, Rod cap |
| 7 | 0328840 | CRANKSHAFT |
| 8 | 0326904 | NEEDLE BEARING ASSY. |
| 9 | 0386008 | BEARING ASSEMBLY CRANKSHAFT |
| 10 | 0120395 | KEY |
| 11 | 0396068 | LINERS & NEEDLES, Rod |
| 12 | 0332934 | RETAINING RING This part replaces 0403807. |
| 14 | 0391849 | ROULEMENT À BILLES |
