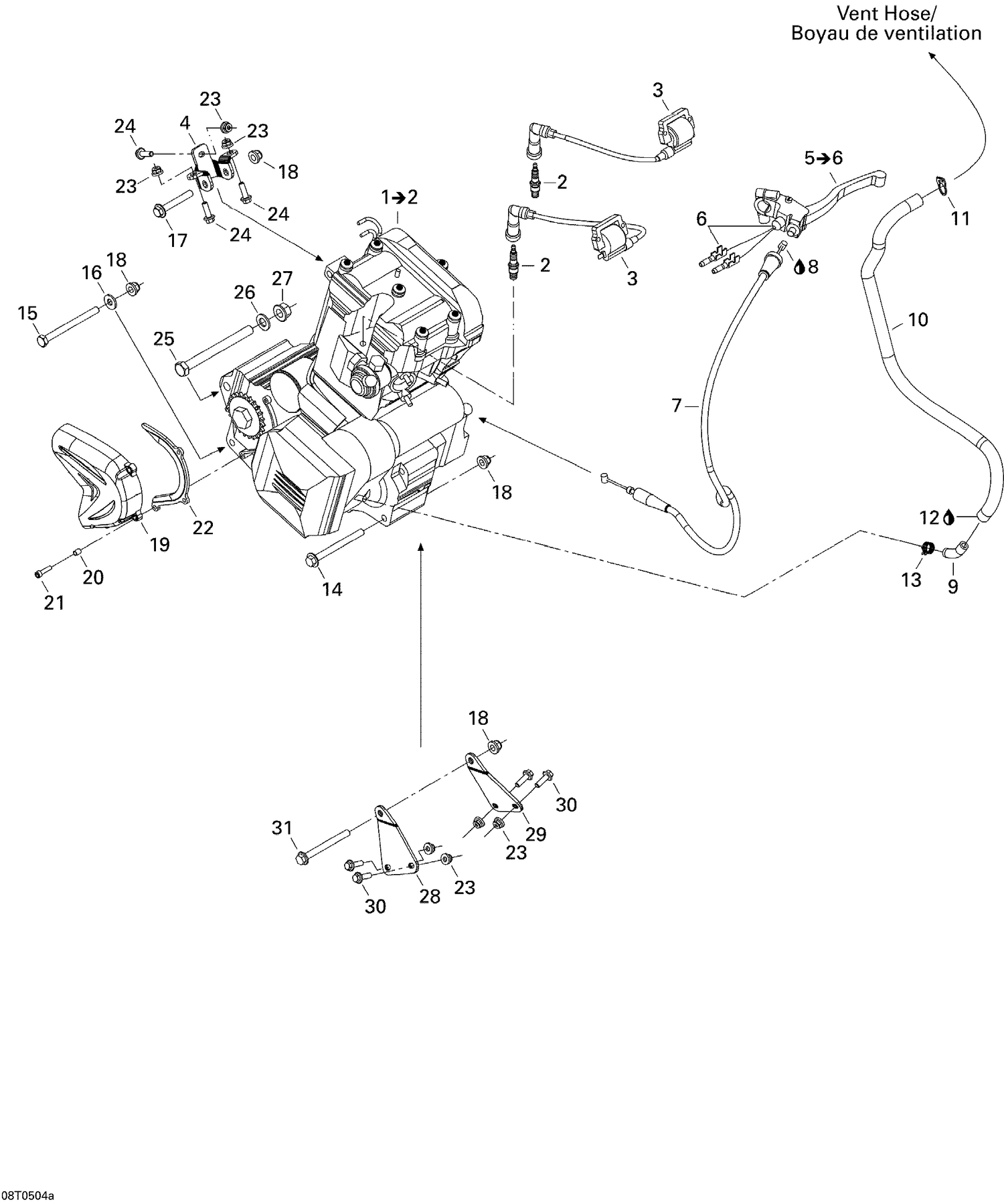

| Ref | Part Number | Description |
|---|
| 2 |
707000008 |
Spark Plug NGK DR8EA |
| 3 |
420265357 |
Ignition Coil |
| 4 |
707000029 |
Support Bracket |
| 6 |
707000183 |
LEVER SHIFTER SWITCH - Call your local BRP dealership |
| 7 |
707000027 |
SHIFTER LEVER CABLE - Call your local BRP dealership |
| 8 |
293600041 |
CABLE LUBRICANT, 400 G - Call your local BRP dealership |
| 9 |
219704422 |
HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership |
| 10 |
219704394 |
Was 276000001 Hose 12.5 mm |
| 11 |
293650119 |
HOSE CLAMP - Call your local BRP dealership |
| 13 |
414655700 |
Spring Clamp |
| 14 |
230501046 |
Hex. Screw M10 X 110, Scotch Grip |
| 15 |
230202046 |
Hex. Screw M10 X 120, Scotch Grip |
| 16 |
224002251 |
FLAT WASHER - Call your local BRP dealership |
| 17 |
207507046 |
Hex. Screw M10 X 70, Scotch Grip |
| 18 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 19 |
707000024 |
Pinion Cover |
| 20 |
707000065 |
Spacer |
| 21 |
205062544 |
Socket Head Screw M6 X 25 |
| 22 |
707000163 |
CHAIN GUARD - Call your local BRP dealership |
| 23 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 24 |
207682544 |
Hex. Flange Screw M8 X 25 |
| 25 |
230275044 |
HEX. SCREW M14 X 150, SCOTCH GRIP - Call your local BRP dealership |
| 26 |
234071410 |
Flat Washer 14 mm |
| 27 |
233271414 |
ELASTIC FLANGED NUT M14 - Call your local BRP dealership |
| 28 |
707000268 |
RH SUPPORT ENGINE - Call your local BRP dealership |
| 29 |
707000269 |
LH SUPPORT ENGINE - Call your local BRP dealership |
| 30 |
207682544 |
Hex. Flange Screw M8 X 25 |
