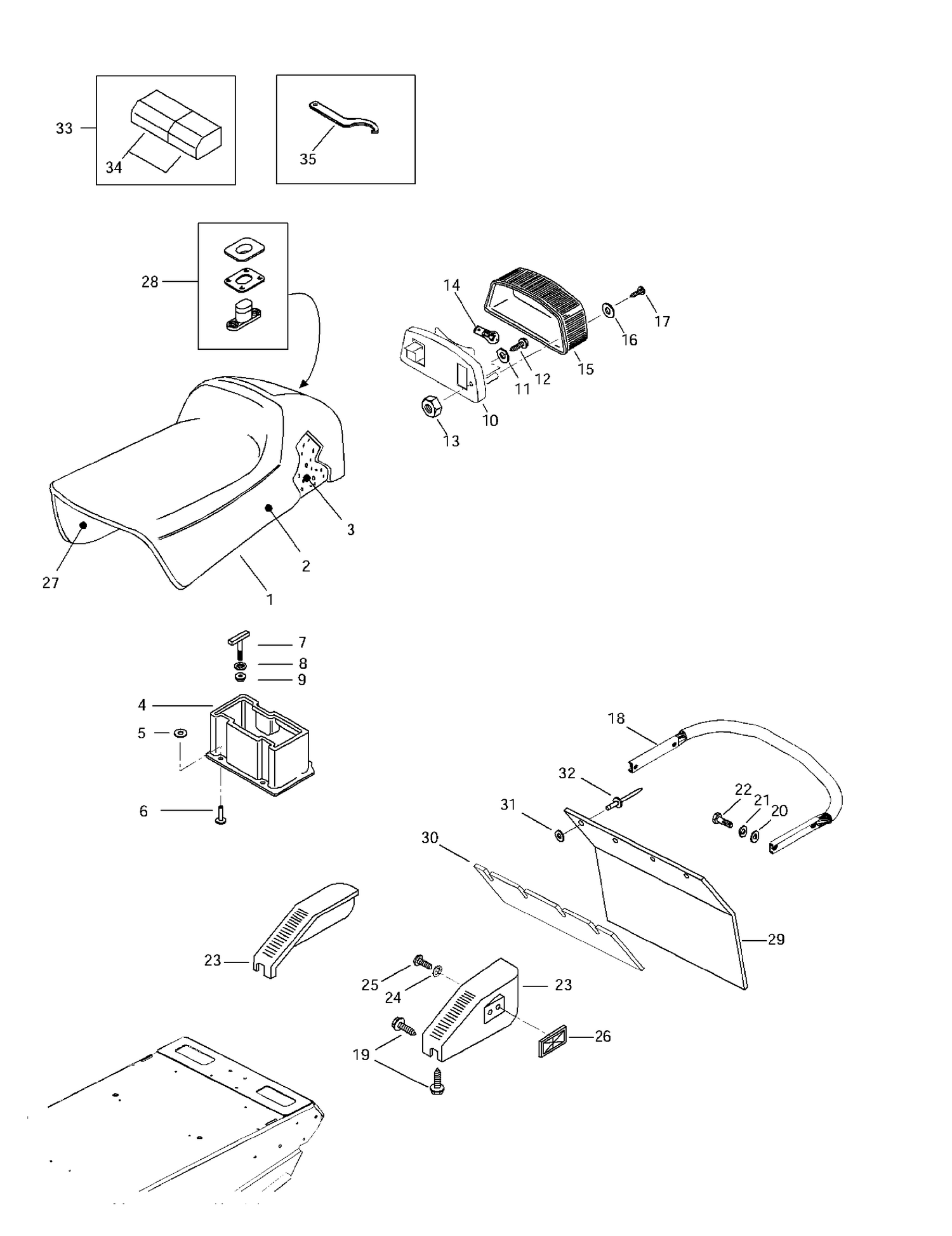

| Ref | Part Number | Description |
|---|
| 1 |
Not |
Available As Spare Part - Seat Ass'y(1 pass.) |
| 2 |
415041703 |
Seat Cover |
| 3 |
414837100 |
Foam Seat |
| 4 |
572039802 |
Rear Trunk |
| 5 |
517225900 |
Flat Washer |
| 6 |
293150104 |
Pop Rivet 3/16" This part replaces 390409600. |
| 8 |
732610072 |
Push Nut |
| 9 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 10 |
510004061 |
LIGHT HOUSING - Call your local BRP dealership This part replaces 414513600. |
| 11 |
517225900 |
Flat Washer |
| 12 |
207053044 |
Hex. Screw M5 X 30 This part replaces 222053065. |
| 13 |
233251434 |
Flange Elastic Nut M5 This part replaces 228751045. |
| 14 |
520000758 |
Bulb This part replaces 410504000. |
| 15 |
414513700 |
Lens |
| 16 |
414516400 |
Washer - Call your local BRP dealership |
| 17 |
209632540 |
Phillips Tapping Screw M3.9 X 25 This part replaces 732601253. |
| 18 |
518314000 |
REAR BUMPER - Call your local BRP dealership |
| 19 |
365901100 |
HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 20 |
234081410 |
Flat Washer 8 mm This part replaces 224081171. |
| 21 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 22 |
207182044 |
Hex. Screw M8 X 20 This part replaces 222082065. |
| 24 |
224151101 |
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership |
| 25 |
208651041 |
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership This part replaces 222851065. |
| 26 |
414510100 |
REFLECTOR, RED - Call your local BRP dealership |
| 27 |
572059600 |
Sub-Seat |
| 28 |
414728000 |
SEAT BUCKLE - Call your local BRP dealership |
| 29 |
572085100 |
Snow Guard |
| 30 |
572097000 |
Reinforcement |
| 31 |
517225900 |
Flat Washer |
| 32 |
390909600 |
Rivet (Black) 3/16 |
| 33 |
529027900 |
Tool Kit |
| 34 |
708200043 |
TOOLS BOX - Call your local BRP dealership This part replaces 572036310. |
| 580641700 |
LH |
Moulding Ass'y 580641700 |
