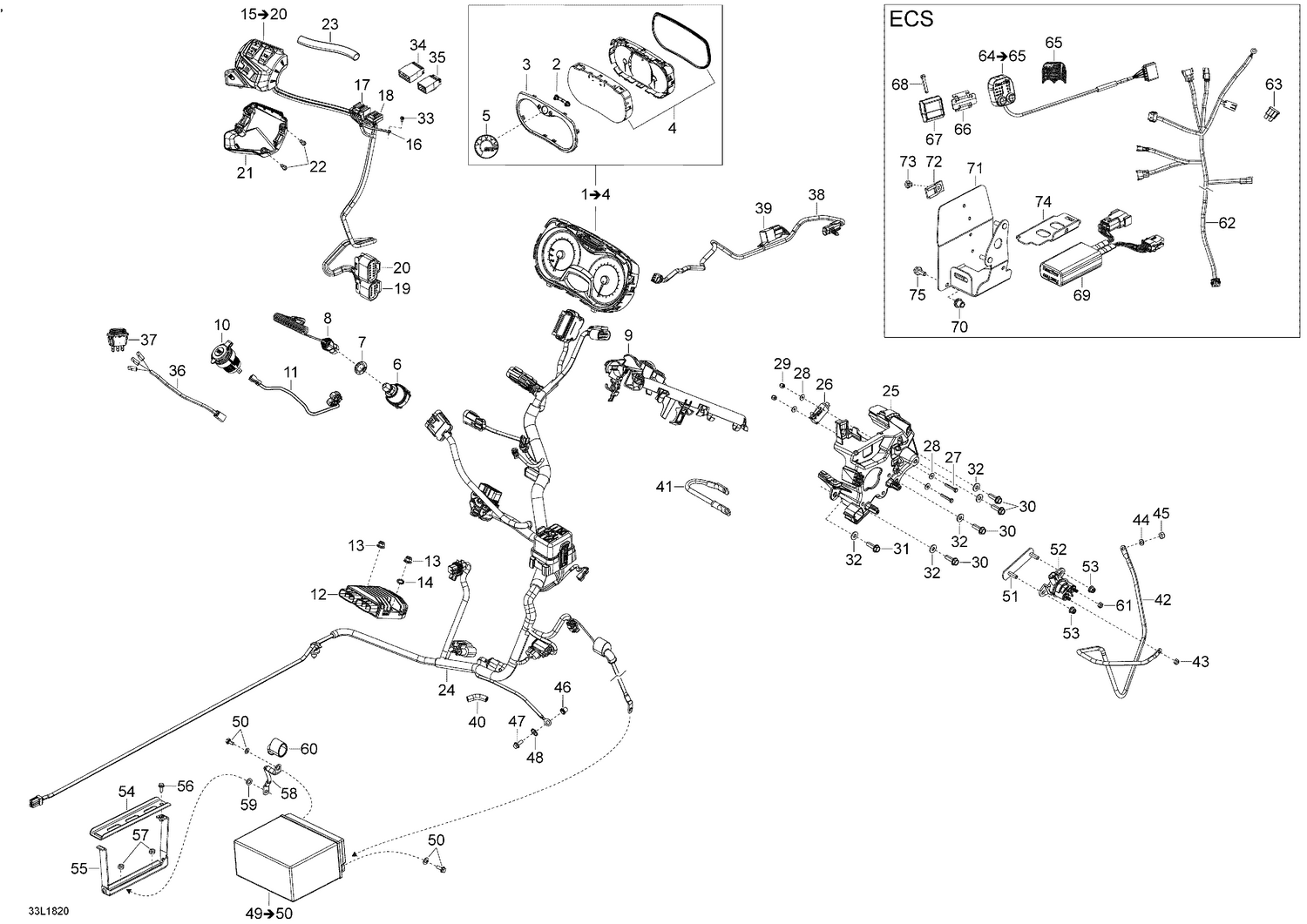

| Ref | Part Number | Description |
|---|
| 2 |
415129355 |
Speedometer Button |
| 3 |
415129370 |
Gauge Ring |
| 4 |
415129349 |
Lens |
| 5 |
516006224 |
BRP Logo, 20 mm |
| 6 |
515178840 |
Terminal Dess One-Wire This part replaces 515178225. |
| 7 |
278002963 |
Safety Nut (DESS Switch) |
| 8 |
515178044 |
DESS Cap |
| 8 |
515178046 |
DESS Cap (Learning Key) |
| 9 |
515177134 |
Connector Plate |
| 10 |
710001248 |
Outlet DC |
| 12 |
710010539 |
Voltage Regulator This part replaces 515177325. |
| 13 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 14 |
234461608 |
External Serrated Lock Washer 6 mm |
| 16 |
515175504 |
Ring Terminal |
| 17 |
515175231 |
Female Terminal |
| 17 |
515175543 |
Female Terminal Housing, 6 Circuits |
| 18 |
515175231 |
Female Terminal |
| 18 |
515175845 |
Female Terminal Housing, 4 Circuits |
| 19 |
710001928 |
Housing |
| 20 |
710001930 |
Female Housing, 12 Circuits |
| 21 |
515177147 |
Housing Plate |
| 22 |
250000671 |
Torx Screw |
| 23 |
415129879 |
Protector Tube |
| 24 |
515177943 |
Wiring Harness |
| 25 |
515177347 |
Plate |
| 26 |
515177460 |
Switch Ass'y |
| 27 |
207132044 |
Hex Screw M3 X 20 |
| 28 |
234032600 |
Flat Washer M3, Stainless |
| 29 |
232531423 |
Elastic Stop Nut M3 |
| 30 |
210262040 |
Hex. Flanged Screw M6 X 20 |
| 31 |
210262550 |
Hex. Flanged Forming Screw M6 X 25 |
| 32 |
250200039 |
Flat Washer |
| 33 |
250000690 |
Pan Screw Forming, 7500C |
| 34 |
515175662 |
Male Terminal Housing, 6 Circuits |
| 35 |
515175846 |
Male Terminal Housing, 4 Circuits |
| 36 |
515179615 |
NEEDS DESCRIPTION This part replaces 515177568. |
| 37 |
515177569 |
ECO Rocker Switch |
| 39 |
710010053 |
RELAY This part replaces 515177041. |
| 40 |
520001525 |
Trim |
| 41 |
515177014 |
Ground Wire |
| 42 |
515177427 |
Battery Wire |
| 43 |
232561414 |
Elastic Stop Nut M6 |
| 44 |
234061410 |
Flat Washer 6 mm |
| 45 |
232561414 |
Elastic Stop Nut M6 |
| 46 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 47 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 48 |
250200041 |
Lock Washer Serrated M6 |
| 50 |
250000282 |
Battery Bolt Kit |
| 51 |
515177740 |
Relay Support |
| 52 |
278003012 |
Starter Relay |
| 53 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 54 |
518327281 |
Battery Strap |
| 55 |
518327282 |
Battery Strap |
| 56 |
207561644 |
Hex Flange Screw M6 X 16, Scotch Grip |
| 57 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 58 |
515176780 |
Ground Wire |
| 59 |
234061410 |
Flat Washer 6 mm |
| 60 |
570151000 |
Protection Cap |
| 61 |
232561414 |
Elastic Stop Nut M6 |
| 63 |
278001197 |
Fuse, 10 Amperes |
