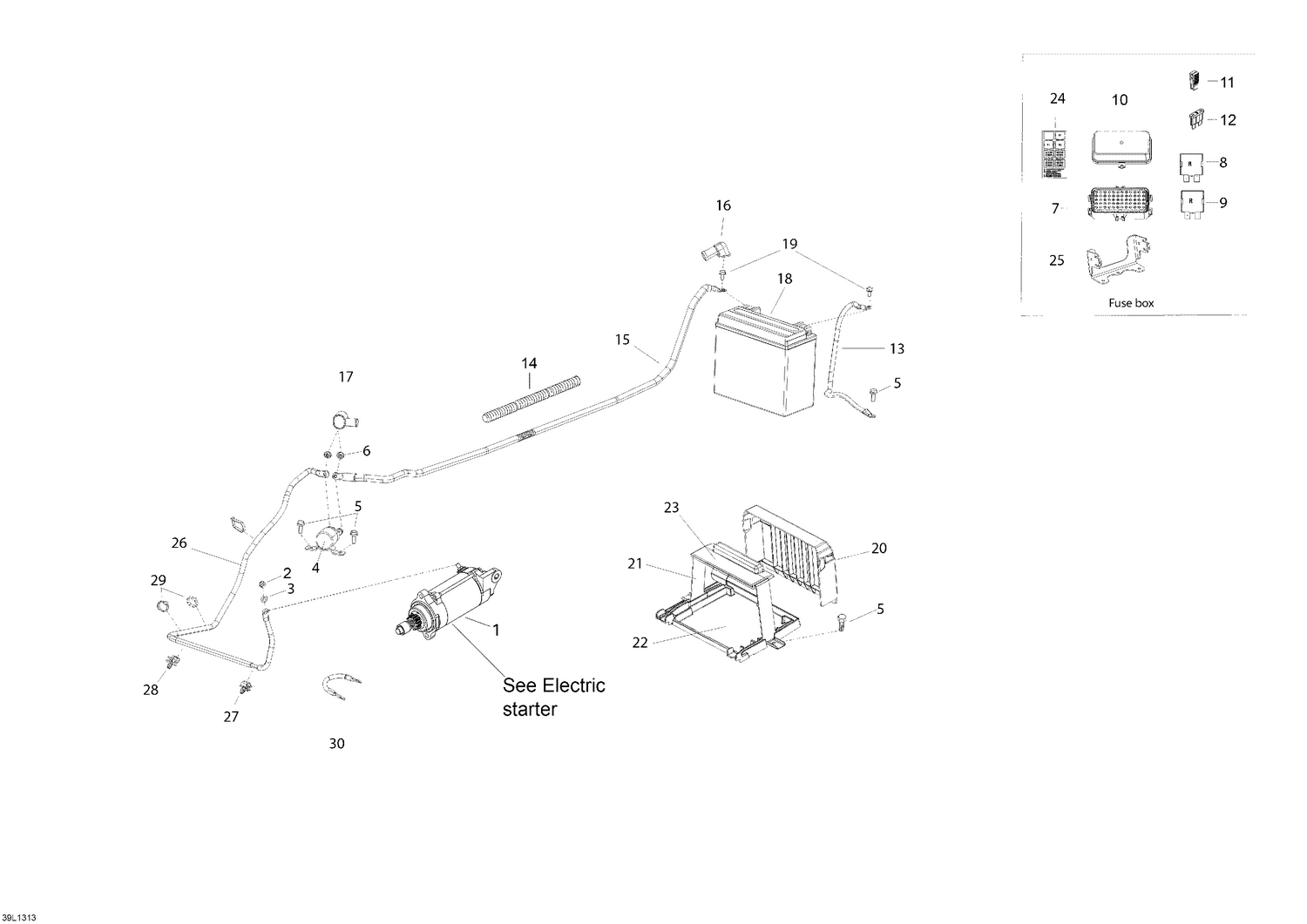

10- Battery And Starter
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420893531 | Electric Starter This part replaces 420892421. |
| 2 | 232561434 | Elastic Stop Nut M6 |
| 3 | 234061410 | Flat Washer 6 mm |
| 4 | 515176011 | Solenoid |
| 5 | 207561644 | Hex Flange Screw M6 X 16, Scotch Grip |
| 6 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 7 | Not | Available As Spare Part - Fuse housing |
| 8 | 515176775 | Relay 50 A (bigger) |
| 9 | 515176774 | Relay, 30 AMP |
| 10 | 710001026 | Cover |
| 11 | 515175811 | FUSE TOOL - Call your local BRP dealership |
| 12 | 710000742 | Little Fuse, 5 Ampere |
| 12 | 710000743 | Fuse 7,5A |
| 12 | 710000744 | Little Fuse, 10 Ampere |
| 12 | 710000745 | Little Fuse, 15 Ampere |
| 12 | 710000746 | Little Fuse, 20 Ampere |
| 12 | 710000747 | Little Fuse, 30 Amperes |
| 13 | 515176780 | Battery ground cable 380 mm. |
| 14 | 28015 | Tubing |
| 15 | 515176778 | BATTERY WIRE - Call your local BRP dealership |
| 16 | 278001771 | PROTECTOR CAP - Call your local BRP dealership |
| 17 | 570151000 | Cover |
| 19 | 250000282 | Battery Bolt Kit This part replaces 295500849. |
| 20 | 510005079 | Battery cover |
| 21 | 510005250 | Retainer strap |
| 22 | 515176804 | Battery support |
| 24 | 516005517 | Fuse decal 1200 |
| 25 | 515177073 | FUSEBOX SUPPORT - Call your local BRP dealership |
| 26 | 515176779 | Start cable 1000 mm. |
| 27 | 515176795 | Tie Rap Mount (Screwable) |
| 28 | 605627000 | Stud |
| 29 | 414115200 | Tie-Rap 180 mm |
