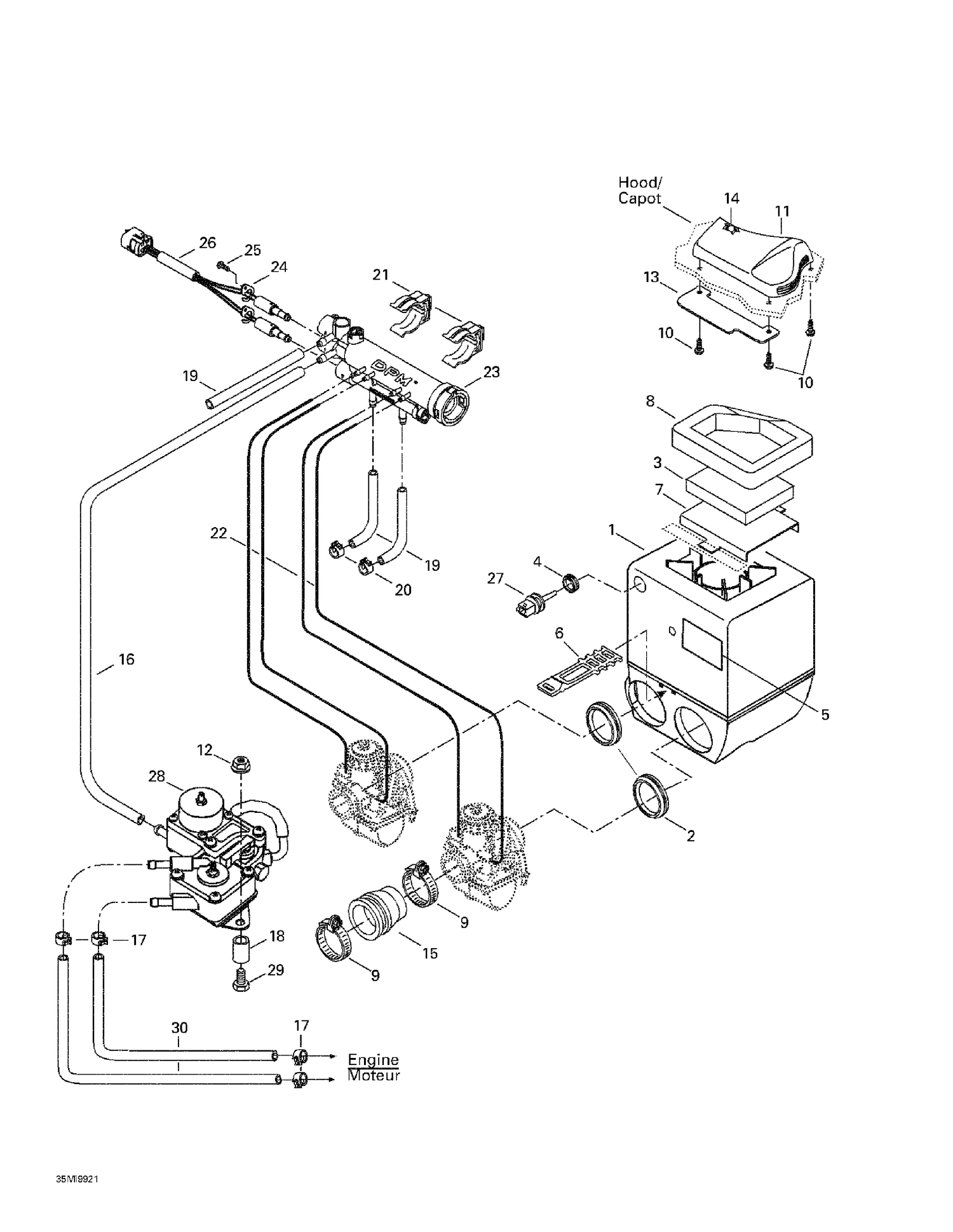

02- Air Intake System
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 570049000 | Intake Adaptor VM 40 |
| 3 | 415014800 | Air Filter |
| 4 | 570065500 | GROMMET - Call your local BRP dealership |
| 5 | 516002715 | CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516000130. |
| 6 | 570069700 | LATCH - Call your local BRP dealership |
| 7 | 517283900 | Grill Intake |
| 8 | 415105900 | Exterior Foam |
| 9 | 414532800 | Collar |
| 10 | 243141630 | Hex. Plastic Screw M4.8 X 16 This part replaces 243141640. |
| 11 | 572077900 | INTAKE COVER - Call your local BRP dealership |
| 12 | 233251434 | Flange Elastic Nut M5 This part replaces 228751045. |
| 13 | 517292800 | Deflector |
| 14 | 414972600 | Air Filter |
| 15 | 512059047 | Adaptor Carburetor |
| 16 | 270000306 | Hose 4.5 mm |
| 17 | 414415200 | Spring Clamp |
| 18 | 512058934 | Spacer |
| 19 | 219704410 | Polyurethane Hose 10000Mm Long |
| 20 | 414554800 | Spring Clamp |
| 21 | 512058919 | SUPPORT - Call your local BRP dealership |
| 22 | 404161814 | Hose |
| 24 | 415061600 | SOLENOID LOCK - Call your local BRP dealership |
| 25 | 241140060 | Screw K40 X 10 This part replaces 211000028. |
| 26 | 515175219 | Collector Harness |
| 27 | 270600000 | AIR TEMPERATURE SENSOR - Call your local BRP dealership |
| 28 | 415109000 | Air Pump |
| 29 | 207053044 | Hex. Screw M5 X 30 This part replaces 222053065. |
