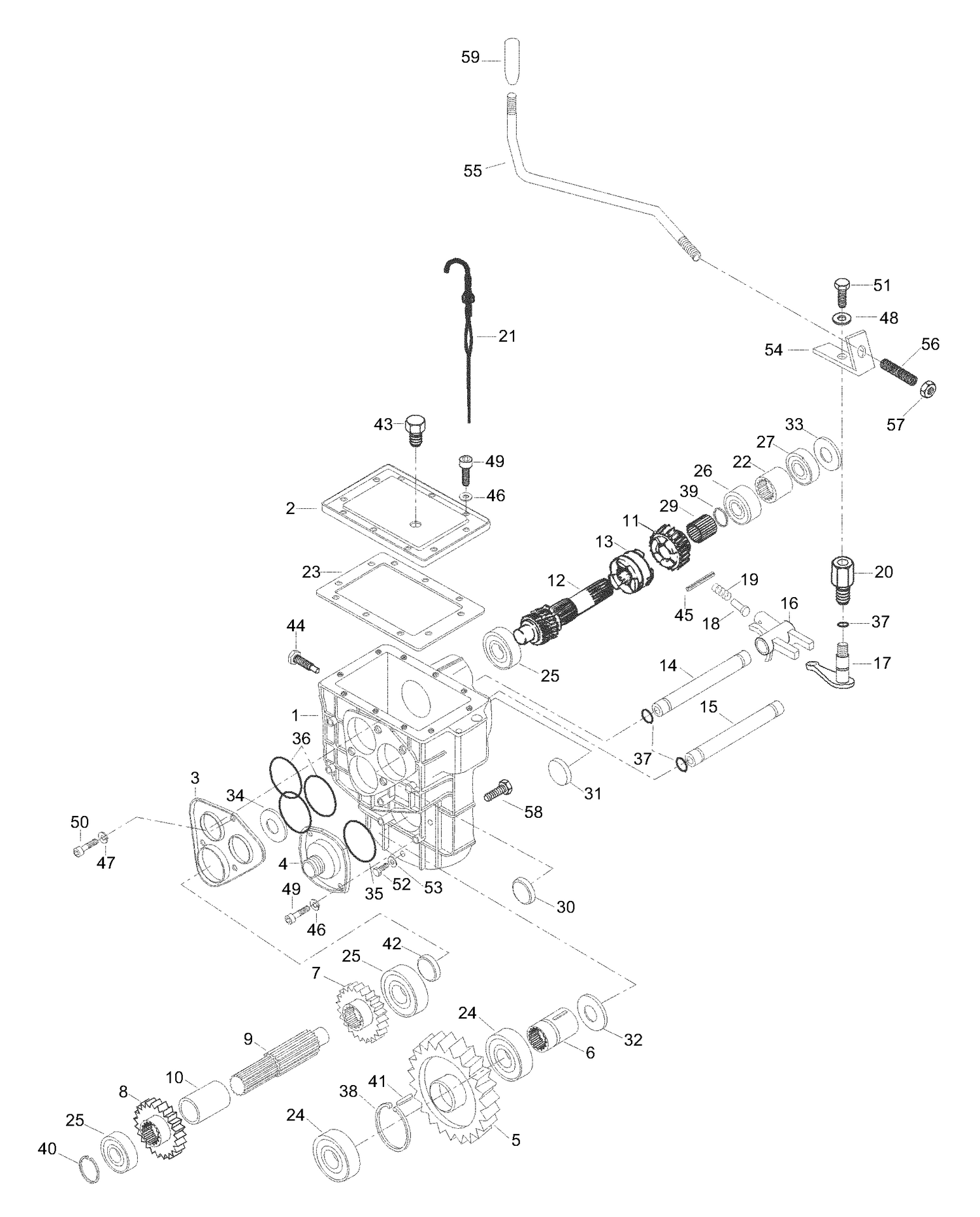

05- Gearbox
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 875146257 | Housing |
| 2 | 875156070 | Cover |
| 3 | 875146050 | Side cover |
| 4 | 875136252 | Cover,lower |
| 5 | 875155048 | Wheel,lower Z-64 |
| 6 | 875136962 | Shaft, lower |
| 7 | 875146042 | Gear Z-32 |
| 8 | 875146043 | Gear Z-36 |
| 9 | 875147162 | Shaft |
| 10 | 875146112 | Sleeve |
| 11 | 875146037 | Gear Z-27 |
| 12 | 875156212 | Clutch shaft assy |
| 13 | 875156120 | Clutch wheel |
| 14 | 875146051 | Shift fork shaft |
| 15 | 875146052 | Back shaft,shift fork |
| 16 | 875146018 | Shift fork |
| 17 | 875156210 | Shift fork |
| 18 | 875119655 | Lock pin |
| 19 | 875128952 | Spring |
| 20 | 875156208 | Screw-in sleeve |
| 21 | 875146814 | Dipstick |
| 22 | 875138073 | Clutch sleeve |
| 23 | 875146411 | Gasket |
| 24 | 6008 | Bearing - Call your local BRP dealership |
| 25 | 6304 | Bearing - Call your local BRP dealership This part replaces 610063040. |
| 26 | 3205 | Bearing, dublex |
| 27 | 6005 | Bearing |
| 29 | 611002529 | Needle bearing |
| 30 | 614100052 | Plug |
| 31 | 614100047 | Plug |
| 32 | 2652101 | Seal oil - Call your local BRP dealership |
| 33 | 614102542 | Oil seal |
| 34 | 614102040 | Oil seal |
| 35 | 614606825 | O-ring |
| 36 | 614605225 | O-ring |
| 37 | 614601024 | O-ring |
| 38 | 617300040 | Circlip |
| 39 | 617450025 | CIRCLIP - Call your local BRP dealership |
| 40 | 617300020 | Circlip |
| 41 | 603345070 | Key |
| 42 | 640016025 | Plug |
| 43 | 33025 | Plug |
| 44 | 875146697 | Screw |
| 45 | 595952630 | Spring cotter |
| 46 | 500950602 | Spring washer |
| 47 | 20014 | Spring washer |
| 48 | 501150902 | Washer |
| 49 | 40332 | Allen screw M6x16 |
| 50 | 40066 | Allen sc. M8 x 16 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 51 | 528801382 | Screw M8x20 |
| 52 | 40114 | Screw M6x10 |
| 53 | 615580611 | Gasket ring |
| 54 | 5346582 | Shifter plate |
| 55 | 5246692 | Shifter shaft |
| 56 | 542102 | Spring |
| 57 | 33012 | Nut elastic M10 |
| 58 | 40337 | Screw M8x16 |
