| Ref | Part Number | Description |
|---|
| 9 |
0339706 |
PROPELLER SHAFT |
| 21 |
0438617 |

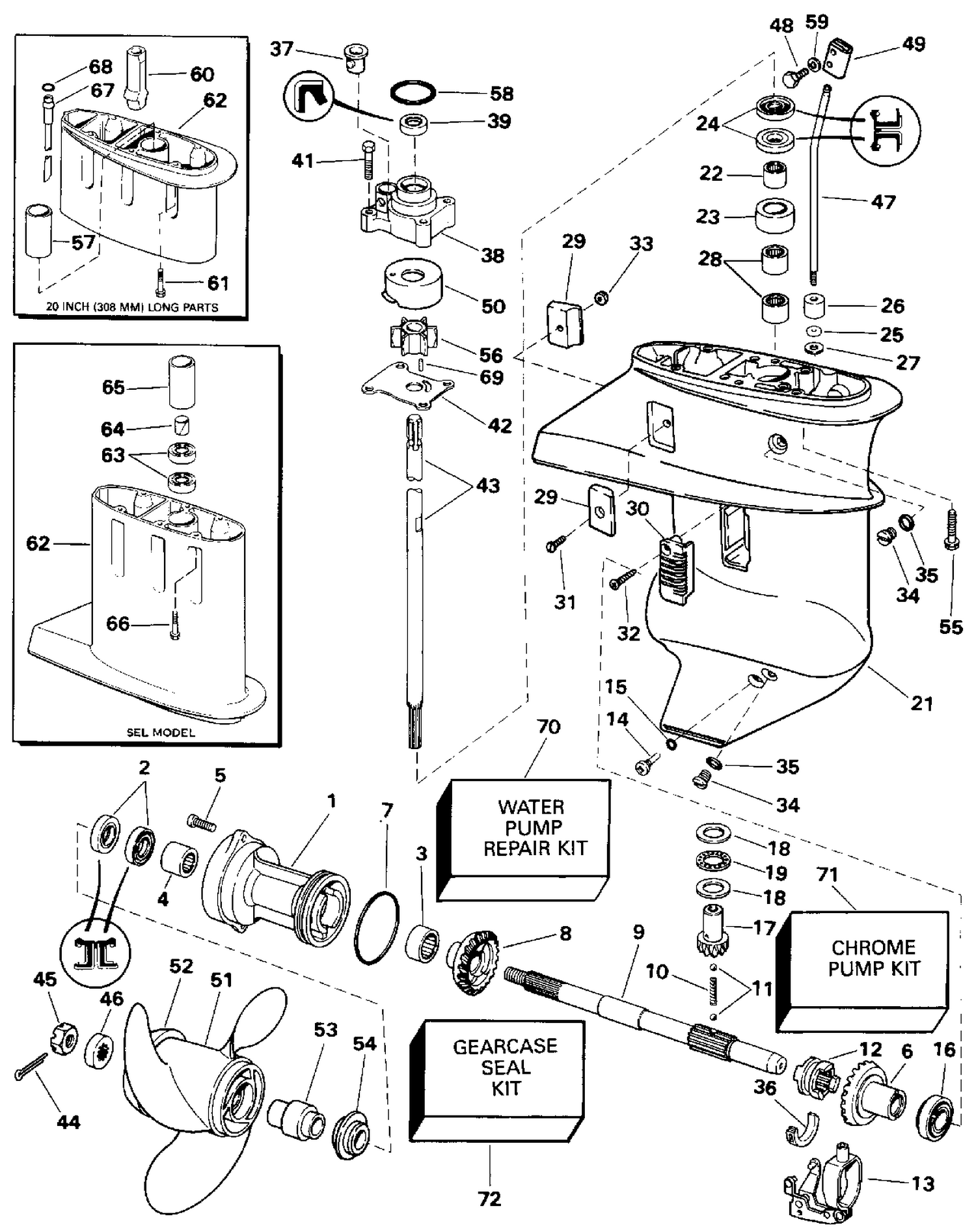

GEARCASE Assy, This part replaces 0435393. |
| 25 |
0301877 |
O RING SHIFT ROD |
| 37 |
0327035 |
GROMMET, Water tube lower |
| 38 |
0435390 |
IMPELLER HSG. & SEAL ASSY. |
| 42 |
0318995 |
PLATE, Impeller housing |
| 43 |
0328299 |
DRIESHAFT,Sel only |
| 43 |
0341590 |
DRIVESHAFT, Standard This part replaces 0329510. |
| 47 |
0318992 |
SHIFT ROD LOWER, Standard |
| 47 |
0328300 |
SHIFT ROD LOWER |
| 50 |
0323535 |
COUPELLE, carter de turbine |
| 50 |
0324097 |
CUP, Impeller housing |
| 51 |
0175323 |
PROPELLER, 9.5 x 12.5, 15 models |
| 51 |
0398126 |
PROPELLER, 10 x 7, 3 blade |
| 51 |
0778772 |
RH Alum. 9 1/2 x 10 This part replaces 0174950. |
| 54 |
0334590 |
THRUST BUSHING, Prop. |
| 56 |
0386084 |
IMPELLER |
| 62 |
0395894 |
EXTENSION, Gearcase |
| 67 |
0395124 |
WATER TUBE |
| 69 |
0300611 |
AXE, turbine vers arbre d'entraînement |
| 70 |
0394711 |
CHROME PUMP KIT This part replaces 0391698. |
| 71 |
0394711 |
CHROME PUMP KIT This part replaces 0389114. |
| 0434135 |
0434135 |
EXTENSION KIT ASSY. |
| 0435712 |
0438617 |
GEARCASE Assy, This part replaces 0435712. |
