Home / BRP / 2013 / GRAND TOURING / GRAND TOURING SPORT 600 XP, 2013 000EDDA00 / 01- Engine And Engine Support

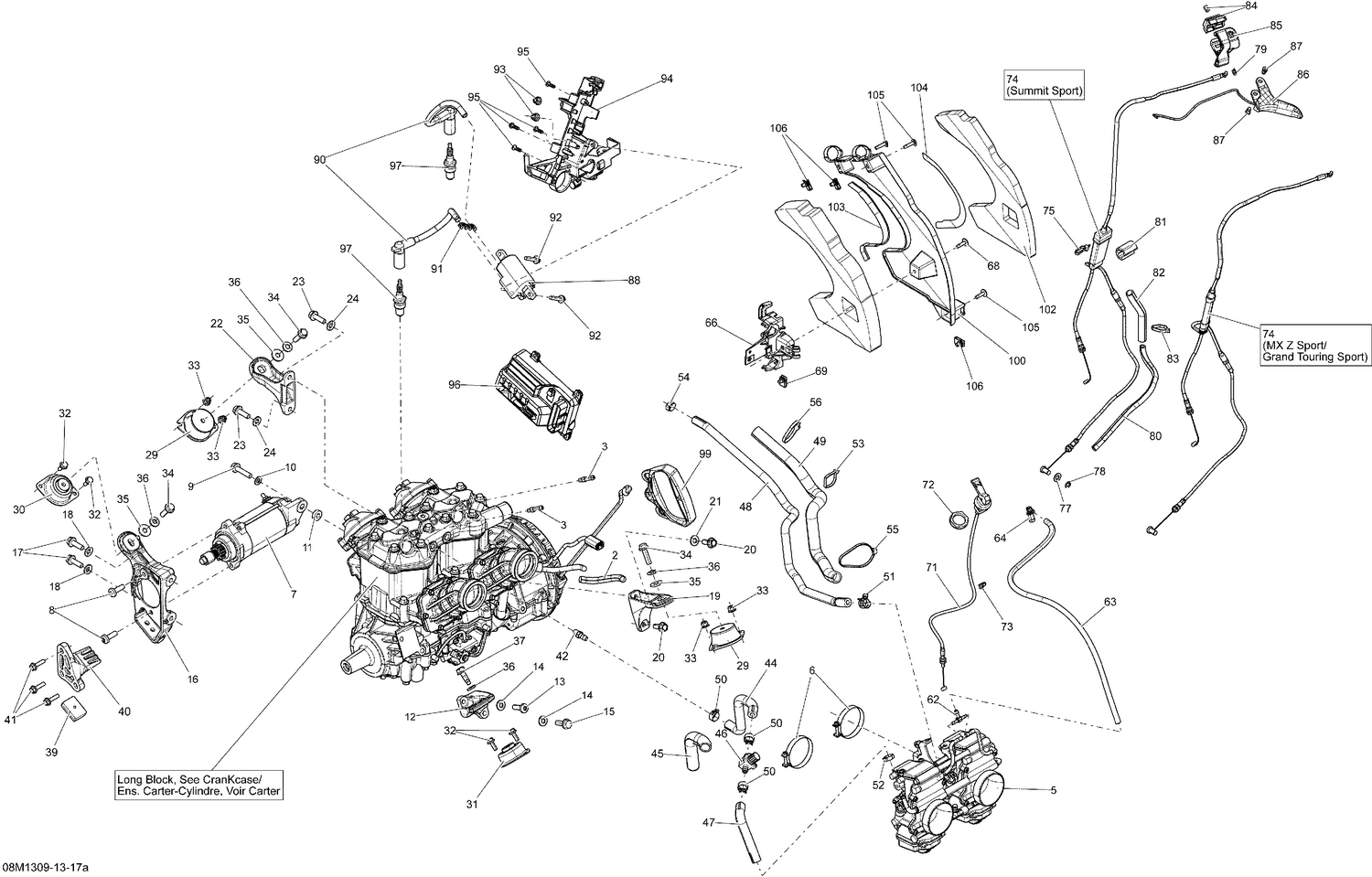

01- Engine And Engine Support

01- Engine And Engine Support

Parts (81)

RefPart NumberDescription
2 219704407 Tubing 10 MM 1000MM Long
3 420924724 Hose Nipple
5 403138815 Carburetor Kit, TM40-B418
6 512059835 Gemi Clamp
12 512060478 Rear Support, PTO
13 250000752 Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248.
14 250200146 Conical Spring Washer M8
15 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
16 512060712 FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.
17 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
18 250200146 Conical Spring Washer M8
19 512060559 Rear Support, MAG
20 207582044 Hex. Flange Screw M8 X 20, Scotch Grip
21 250200146 Conical Spring Washer M8
22 512060469 Front Support, MAG
23 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
24 250200146 Conical Spring Washer M8
29 512060729 Rubber Mount
30 512061507 Vibration Damper This part replaces 512060387.
31 512060448 Rubber Mount
32 207561644 Hex. Flange Screw M6 X 16, Scotch Grip
33 233261414 Hex. Flange Elastic Nut M6 x 1.0
34 207683044 Hex. Flange Screw M8 X 30
35 503183200 Yellow, Washer
36 250200146 Conical Spring Washer M8
37 250000796 Hex. Flange Screw M8 X 1.25 X 25 This part replaces 250000570.
39 512060627 Stopper
40 512060576 Stopper Support
41 207562544 Hex. Flange Screw M6 X 25
42 512060196 Male Connector 1/8"-27 NPT
44 512060355 Hose Formed
45 219704408 Tubing 16 Mm 1000Mm Long
46 512059324 Valve 5/16”
47 512060353 Hose Formed
48 512060347 Hose Formed
49 219704408 Tubing 16 Mm 1000Mm Long
50 414655700 Spring Clamp
51 293650214 Norma Spring Clamp
52 293650125 Oetiker Clamp
53 414115200 Tie-Rap 180 mm
54 293650046 Oetiker Clamp
55 293750008 Tie Wrap 368 mm
56 414115200 Tie-Rap 180 mm
62 572045500 T-Fitting
63 219704410 Polyurethane Hose 10000Mm Long
64 414580700 Male Connector
66 512060298 Solenoid Support
68 250000528 Torx Screw M5 X 20
69 250000958 Panel Nut M5 X 0.8 This part replaces 250000079.
71 512060672 Choke Cable
72 512060671 Plastic Nut
73 414115200 Tie-Rap 180 mm
74 512060886 Throttle Cable This part replaces 512060669.
75 414115200 Tie-Rap 180 mm
77 234081100 Flat Washer 8 mm, Nylon
78 414753500 Circlip
79 414274500 Circlip
80 219704425 Tubing 6 Mm 3000Mm Long
81 512060313 Protector
82 219704407 Tubing 10 MM 1000MM Long
83 414115200 Tie-Rap 180 mm
84 512060859 Upper Housing
85 512060860 Lower Housing
86 512061252 Throttle Handle Ass'y This part replaces 512060616.
87 732601143 Flange Screw
88 512059968 Ignition Coil
90 512060291 Cable
91 410914600 Plastic Clip, Spark Plug Wire
92 207563034 Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044.
93 233261414 Hex. Flange Elastic Nut M6 x 1.0
94 512060924 Coils Support This part replaces 512060745.
95 241151640 Hex. Flange Screw K50 X 2.24 X 16
96 512060680 Calibrated Module, 600
97 415128524 Spark Plug NGK BR9ECS
99 512060136 Starter Grip
100 512060338 Noise Shield
101 512060341 Inner Noise Foam
102 512060342 Outer Noise Foam
103 512060574 Heat Shield
104 512060575 Heat Shield
105 250000528 Torx Screw M5 X 20
