Home / BRP / 2007 / Expedition / Expedition TUV V800, 2007 000FK7A00 000FK7B00 / 01- Cooling System

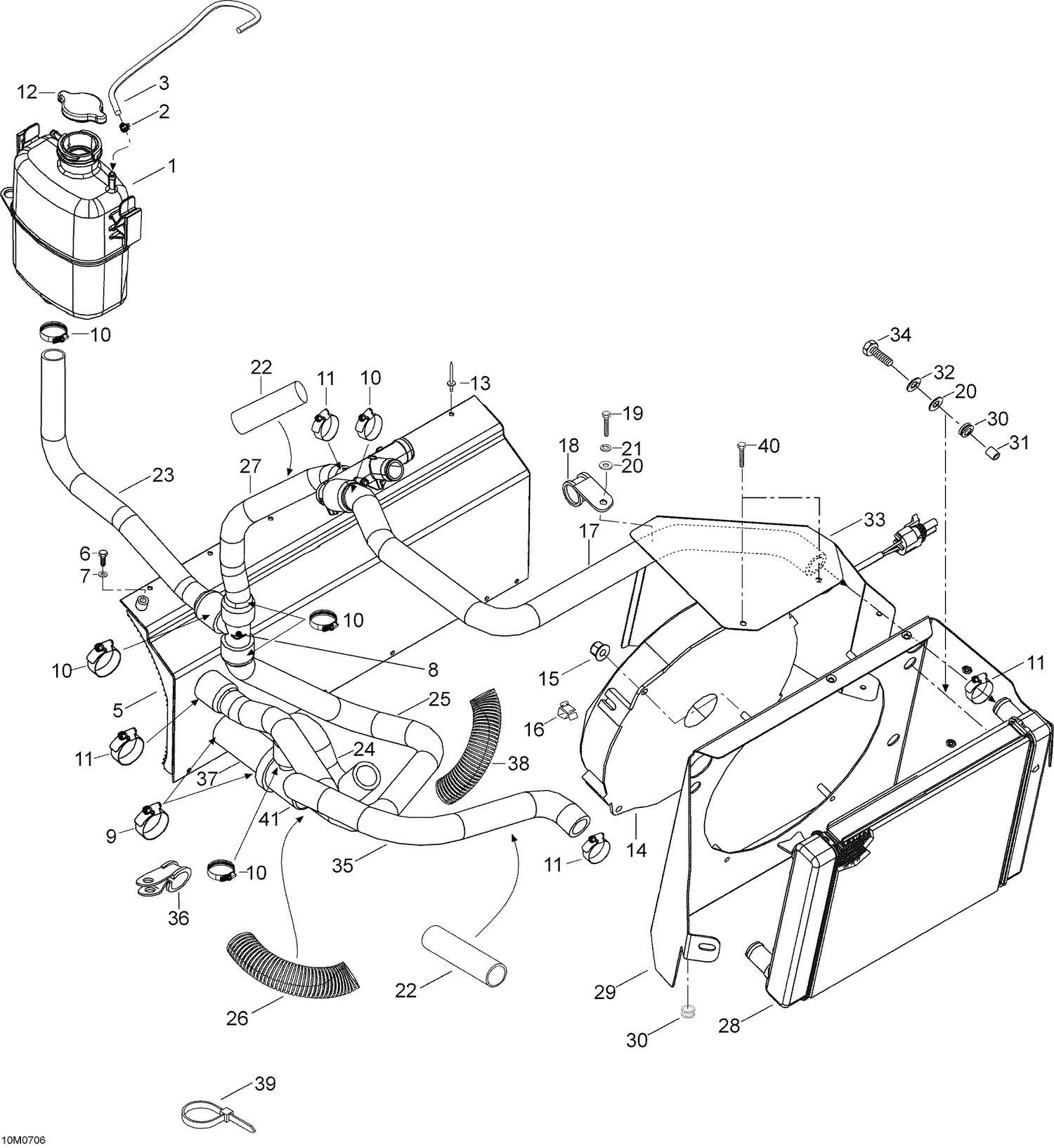

01- Cooling System

01- Cooling System

Parts (39)

RefPart NumberDescription
1 276000086 Coolant Tank
2 605627003 Clamp
3 219704410 Polyurethane Hose 10000Mm Long
5 605253699 Radiator
6 207161044 HEX. SCREW M6 X 10 - Call your local BRP dealership
7 M20041 Seal
8 509000219 T-Fitting
9 408800400 TRIDON GEAR CLAMP - Call your local BRP dealership
10 605627002 CLAMP - Call your local BRP dealership
11 605627004 Clamp
12 509000180 Radiator Pressure Cap
13 36108 Rivet This part replaces M36108.
14 Not Available As Spare Part - Motor Fan
15 233261414 Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200.
16 414227300 Clip
17 605253694 HOSE - Call your local BRP dealership
18 M27039 CLAMP - Call your local BRP dealership
19 207161644 Hex. Screw M6 X 16
20 234062410 Flat Washer 6 mm This part replaces M20009.
21 233261414 Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200.
22 M39062 TUBING - Call your local BRP dealership
23 605253689 HOSE - Call your local BRP dealership
24 605253692 HOSE - Call your local BRP dealership
25 605253691 HOSE - Call your local BRP dealership
26 M28036 Tubing
27 605253690 HOSE - Call your local BRP dealership
28 605353238 RADIATOR 250 - Call your local BRP dealership
29 605253698 SUPPORT - Call your local BRP dealership
30 709000582 Grommet This part replaces 293720053.
31 605453745 Bushing
32 234161471 Lock Washer M6, Black
33 605254458 DEFLECTOR PLATE - Call your local BRP dealership
34 210251650 Hex. Forming Screw M5 X 16 This part replaces 210251680.
35 605253693 HOSE - Call your local BRP dealership
36 M27039 CLAMP - Call your local BRP dealership
37 605253695 HOSE - Call your local BRP dealership
38 219704355 TUBING 1000MM LONG - Call your local BRP dealership
39 414115200 Tie-Rap 180 mm
40 207162044 Hex. Screw M6 X 20
