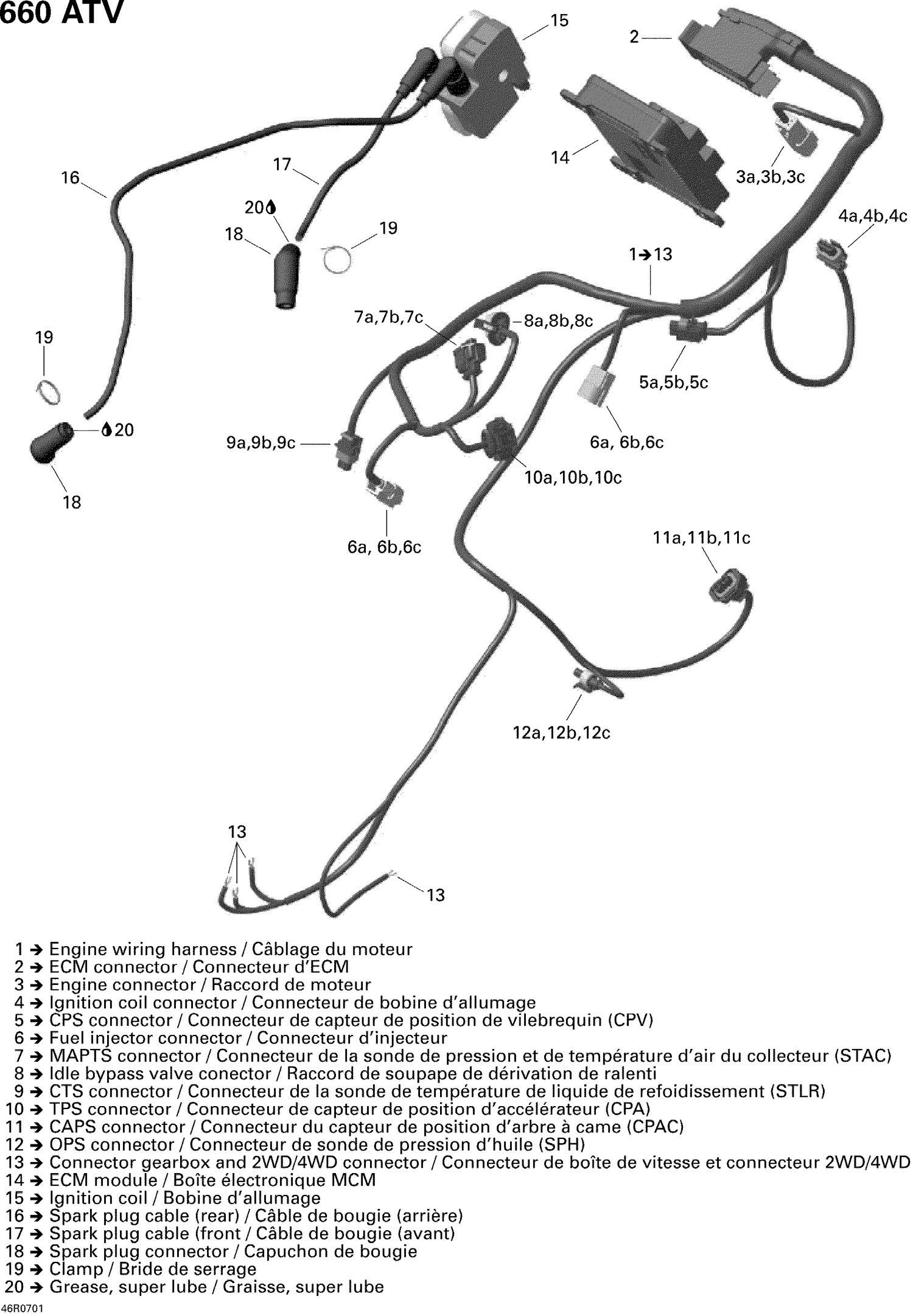

| Ref | Part Number | Description |
|---|
| 2 |
420664450 |
ECM Connector |
| 3a |
278000631 |
Male Terminal |
| 3b |
278000635 |
Female Housing, 4 Circuits |
| 3c |
278000636 |
Female Wedge, 4 Circuits |
| 4a |
710000403 |
WIRE SEAL - Call your local BRP dealership |
| 4b |
278001210 |
FEMALE TERMINAL - Call your local BRP dealership |
| 4c |
278000997 |
Male Housing, 3 Circuits |
| 5a |
710000403 |
WIRE SEAL - Call your local BRP dealership |
| 5b |
278001210 |
FEMALE TERMINAL - Call your local BRP dealership |
| 5c |
278001005 |
Male Housing, 2 Circuits |
| 6a |
Not |
Available As Spare Part - Wire Seal |
| 6b |
Not |
Available As Spare Part - Terminal |
| 6c |
Not |
Available As Spare Part - Housing Connector, 2 Circuits |
| 7a |
710000403 |
WIRE SEAL - Call your local BRP dealership |
| 7b |
Not |
Available As Spare Part - Terminal |
| 7c |
Not |
Available As Spare Part - Housing Connector, 4 Circuits |
| 8a |
Not |
Available As Spare Part - Wire Seal |
| 8b |
Not |
Available As Spare Part - Connector |
| 8c |
Not |
Available As Spare Part - Housing Connector, 4 Circuits |
| 9a |
710000403 |
WIRE SEAL - Call your local BRP dealership |
| 9b |
Not |
Available As Spare Part - Terminal |
| 9c |
278001005 |
Male Housing, 2 Circuits |
| 10a |
710000403 |
WIRE SEAL - Call your local BRP dealership |
| 10b |
Not |
Available As Spare Part - Terminal |
| 10c |
278001829 |
Housing Connector, 3 Circuits |
| 11a |
710000403 |
WIRE SEAL - Call your local BRP dealership |
| 11b |
Not |
Available As Spare Part - Terminal |
| 11c |
278001830 |
Housing Connector, 3 Circuits |
| 12a |
278001013 |
Wire Seal |
| 12b |
278001014 |
Female Terminal |
| 12c |
278001012 |
Male Housing, 1 Circuit |
| 13 |
Not |
Available As Spare Part - Connector |
| 14 |
420266505 |
ECM, ENGINE CONTROL MODULE - Call your local BRP dealership This part replaces 420266503. |
| 15 |
278001546 |
Ignition Coil This part replaces 420266070. |
| 16 |
420665333 |
Spark Plug Cable, 790 mm, Rear This part replaces 420665330. |
| 17 |
420665333 |
Spark Plug Cable, 790 mm, Rear This part replaces 420664300. |
| 18 |
420265248 |
Spark Plug Connector This part replaces 420265240. |
| 19 |
420866710 |
Tie Rap |
