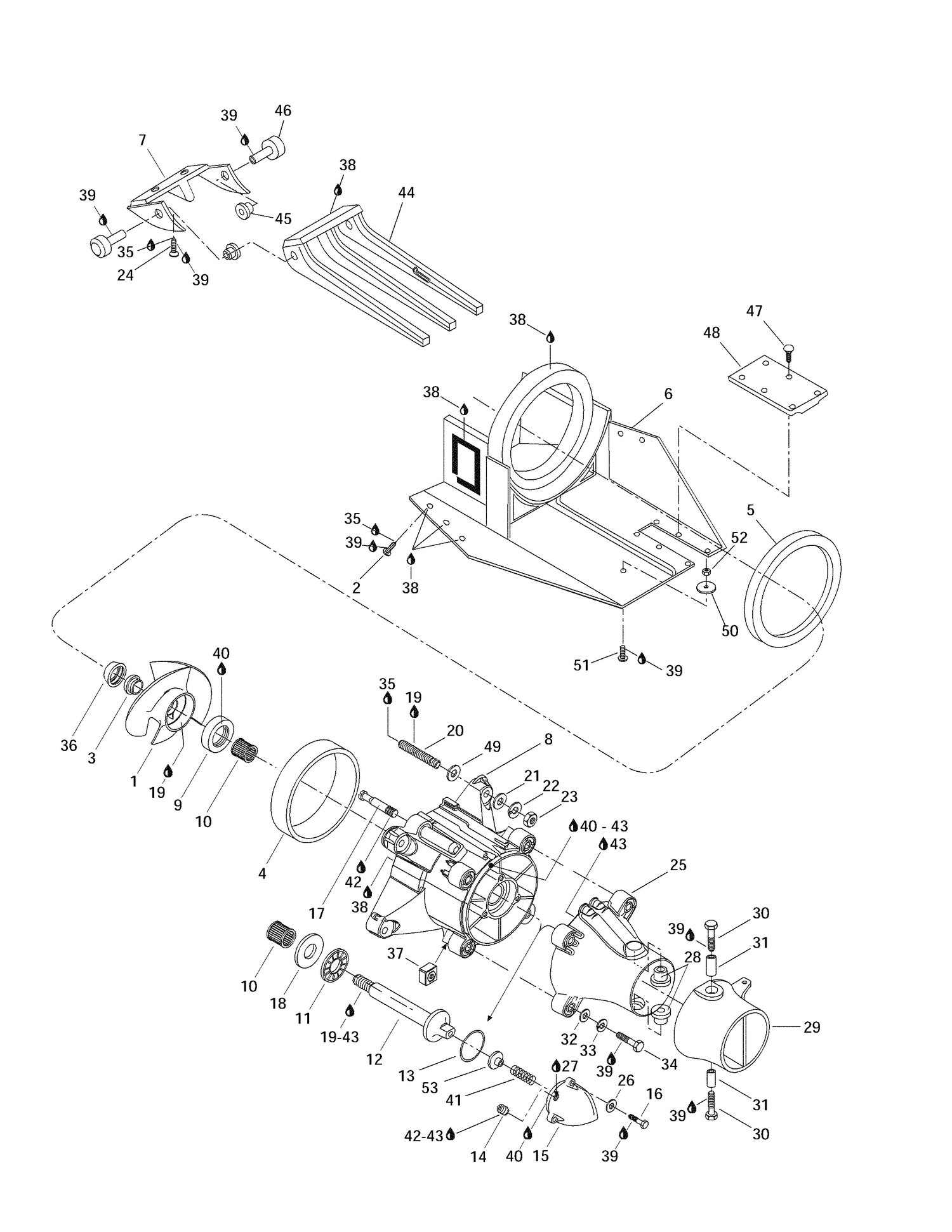

| Ref | Part Number | Description |
|---|
| 1 |
204160004 |
Stainless Steel Impeller |
| 2 |
208564060 |
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership This part replaces 216364060. |
| 3 |
271000516 |
Impeller Boot |
| 4 |
271000290 |
Wear Ring |
| 5 |
293200024 |
SEAL NEOPRENE - Call your local BRP dealership |
| 6 |
204120002 |
Shoe |
| 7 |
204120014 |
GRATE SUPPORT - Call your local BRP dealership |
| 9 |
267000094 |
Oil Seal This part replaces 293200025. |
| 10 |
293350017 |
Needle Bearing |
| 11 |
293350019 |
BEARING THRUST - Call your local BRP dealership |
| 12 |
271000291 |
IMPELLER SHAFT - Call your local BRP dealership |
| 13 |
293300011 |
O-Ring |
| 14 |
211500001 |
Pipe Plug Socket Head 1/8-27 Npt |
| 15 |
271000670 |
IMPELLER COVER - Call your local BRP dealership |
| 16 |
207152060 |
Hex. Screw M5 X 20 This part replaces 210000009. |
| 17 |
293700019 |
FITTING-PUMP - Call your local BRP dealership |
| 18 |
293350020 |
THRUST WASHER - Call your local BRP dealership |
| 19 |
293800005 |
Loctite 271, 10 ml |
| 20 |
211300015 |
STUD-M10 - Call your local BRP dealership |
| 21 |
234001600 |
Flat Washer 10 mm, Stainless This part replaces 213200003. |
| 22 |
234101601 |
Helicoidal Lock Washer M10 This part replaces 213000003. |
| 23 |
232001600 |
HEX. NUT M10 - Call your local BRP dealership This part replaces 212100007. |
| 24 |
208562560 |
Phillips Screw M6 X 25 This part replaces 216362560. |
| 25 |
271000624 |
Venturi |
| 26 |
234051600 |
Flat Washer M5, Stainless This part replaces 213200004. |
| 27 |
779221 |
JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML This part replaces 293600011. |
| 28 |
293900001 |
Venturi Bushing |
| 29 |
204120066 |
Steering Nozzle (Black) |
| 30 |
207182560 |
HEX. SCREW M8 X 25 - Call your local BRP dealership This part replaces 210000002. |
| 31 |
271001816 |
Sleeve This part replaces 271000122. |
| 32 |
234081600 |
Stainless, Flat Washer 8 mm This part replaces 213200002. |
| 33 |
234181601 |
Lock Washer 8 mm, Stainless This part replaces 213000001. |
| 34 |
215687560 |
Hex. Screw M8 x 75 |
| 35 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 36 |
271000517 |
Impeller Ring |
| 37 |
211100033 |
Square Nut M8 |
| 38 |
219701421 |
Instant Gasket This part replaces 293800028. |
| 39 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 41 |
271000704 |
SPRING - Call your local BRP dealership |
| 42 |
219704455 |
Was 293800018 Loctite 592, 50 ml |
| 43 |
219704458 |
Was 293800041 Loctite Primer 7649 |
| 44 |
204120015 |
Mobil Grate |
| 45 |
204390001 |
PLASTIC BUSHING - Call your local BRP dealership |
| 46 |
211000099 |
SOCKET SCREW M6 X 8 - Call your local BRP dealership |
| 47 |
216351060 |
SCREW-CTSK.OV.HD.PH.DIN.966A-A2 - Call your local BRP dealership |
| 48 |
291000446 |
Ride Shoe Cap |
| 49 |
0460011 |
NEEDS DESCRIPTION This part replaces 204120067. |
| 50 |
271000477 |
Anode-Zinc |
| 51 |
211000084 |
Screw 1/4-20 x 5/8 |
| 52 |
243163560 |
Plastite Hex. Screw M6.8 X 35 This part replaces 211000026. |
