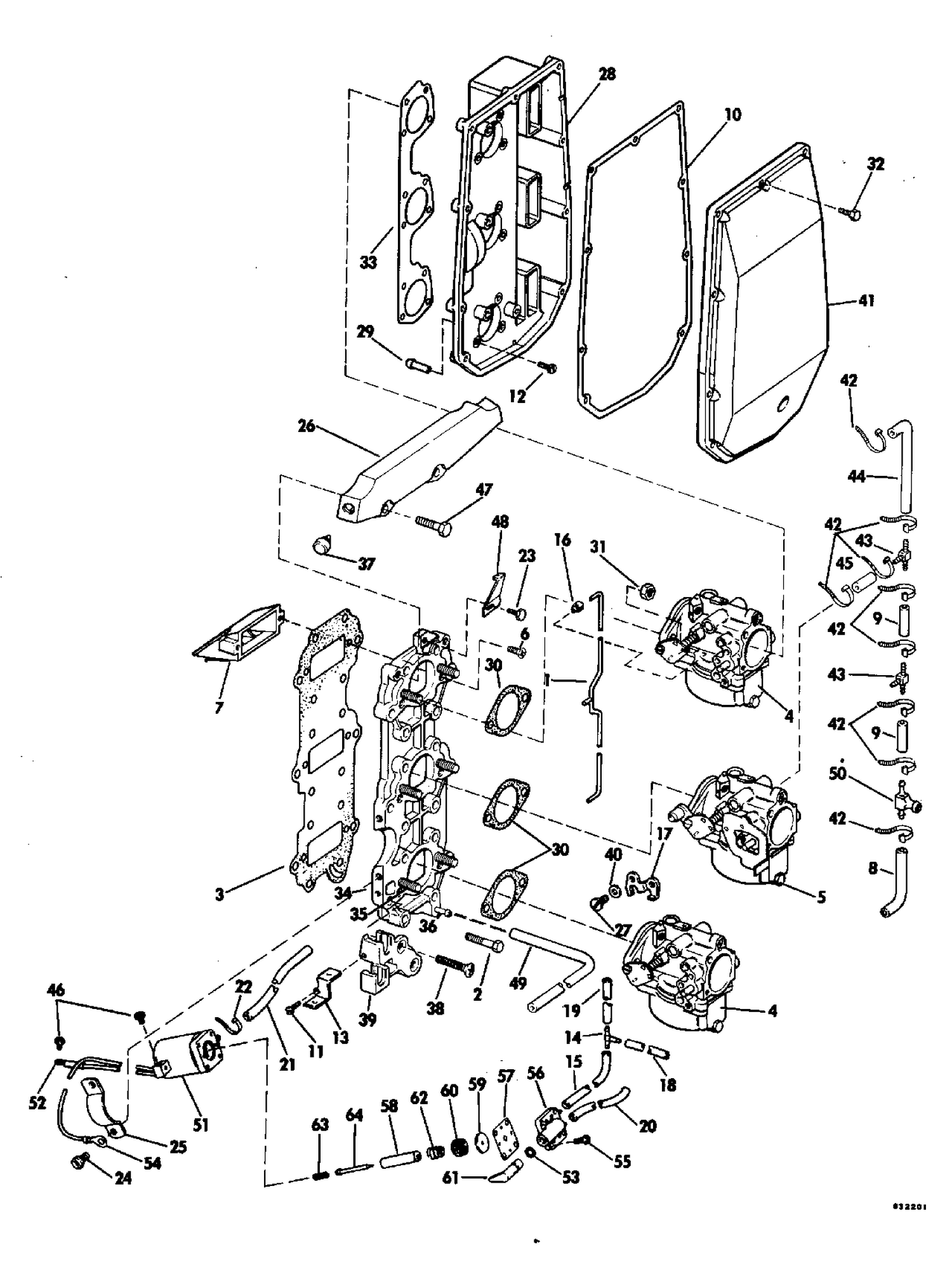

INTAKE MANIFOLD — Parts Catalog

Parts (45)

Ref	Part Number	Description
1	0432271	LINK & PIN, Middle arm This part replaces 0393198.
2	0554306	SCREW, Cyl. to crankcase
3	0326926	GASKET, Plat to manifold
4	CARBURETOR	ASSEMBLY, Upper and lower
5	CARBURETOR	ASSEMBLY, Middle
6	0316116	SCREW
7	0389731	LEAF PLATE ASSEMBLY This part replaces 0389553.
8	HOSE,	Tee to carburetor, lower, 1-3/4" length
9	HOSE,	Tee to tee 1" length
10	0321794	GASKET, Air silencer cover
11	0310626	SCREW, Retainer
12	0327794	SCREW, Base to carburetor
13	0320180	RETAINER, Trunnion
14	0325569	T, amorçage
15	HOSE,	Primer to tee 7"
16	0313329	LOCKWASHER, Carburetor link
17	0321071	LEVER, Throttle adjustment
18	HOSE,	Tee to middle carb. 2-3/4"
19	HOSE,	Tee to upper carb 5"
20	HOSE,	Primer to lower carb 3-3/8"
21	HOSE,	Tee to primer 4-1/2"
23	0303212	VIS, collier & capot
24	0319292	SCREW, Clamp This part replaces 0308762.
25	0328284	CLAMP, Choke solenoid
26	0339776	BRACKET, Engine cover This part replaces 0316647.
28	0333009	BASE ASSEMBLY This part replaces 0321744.
30	0325092	GASKET
31	0316355	BUT, Carburetor mounting
33	0333008	GASKET, Air silencer This part replaces 0321793.
34	0389395	MANIFOLD, Intake
37	0314021	BUMBER, Exhaust manifold
38	0324315	SCREW, Anchor block
39	0324316	ANCHOLR BLOCK, Trunnion
41	0388264	COVER, Air silencer
42	0320107	ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet
44	HOSE,	Tee to carburetor, upper, 5" length
45	HOSE,	Tee to carburetor, middle, 1-3/4" lengt h
47	0306418	VIS, ancrage
48	0332682	TIMING POINTER This part replaces 0318328.
49	HOSE,	Air silencer to manifold 4-1/2" long
50	0326031	TEE, Carburetor hose
51	5007356	Kit Ay This part replaces 0582111.
56	0511807	COVER&GASKET AY
57	0333448	GASKET This part replaces 0511808.
59	0333448	GASKET This part replaces 0511810.
