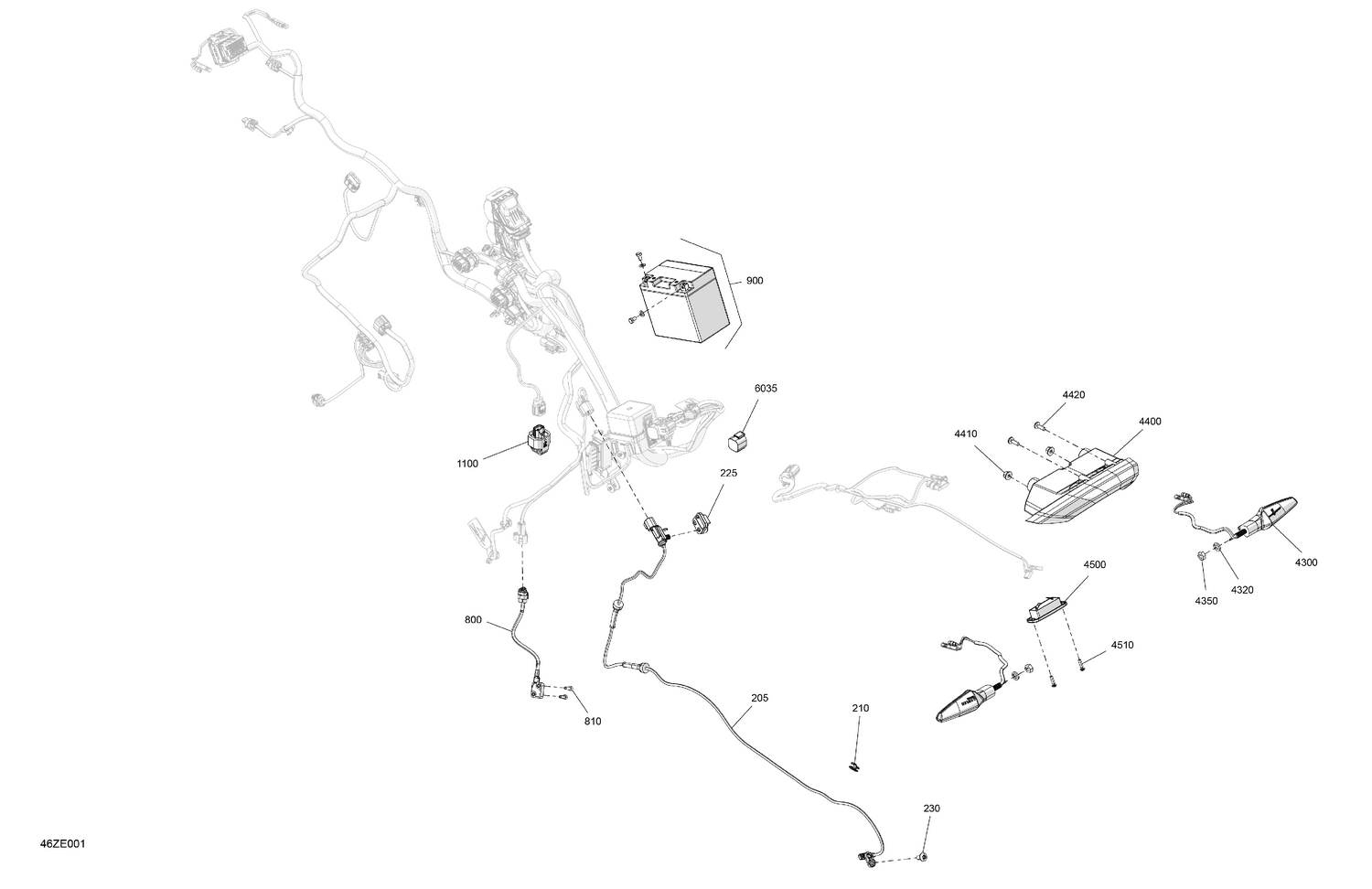

08- Electric - Rear Electric
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 205 | 710006982 | Speed Sensor |
| 210 | 710010345 | Cable Support |
| 225 | 710010658 | Connector Support |
| 230 | 250000789 | Torx Truss M6X14 |
| 800 | 705209246 | Kickstand Switch |
| 810 | 205041254 | Socket Head Screw M4 X 12 |
| 1100 | 710009862 | Tilt Switch |
| 4300 | 710009747 | Turn Signal Amber Light |
| 4320 | 710006520 | Slotted Washer |
| 4350 | 710006521 | Slotted Nut |
| 4400 | 710009127 | Tail Light |
| 4410 | 233161464 | Hex. Elastic Flange Nut M6 |
| 4420 | 250000720 | Torx Screw K50 X 16 |
| 4500 | 710005501 | License Light |
| 4510 | 250000287 | Flange Torx Screw K40 X 16 |
