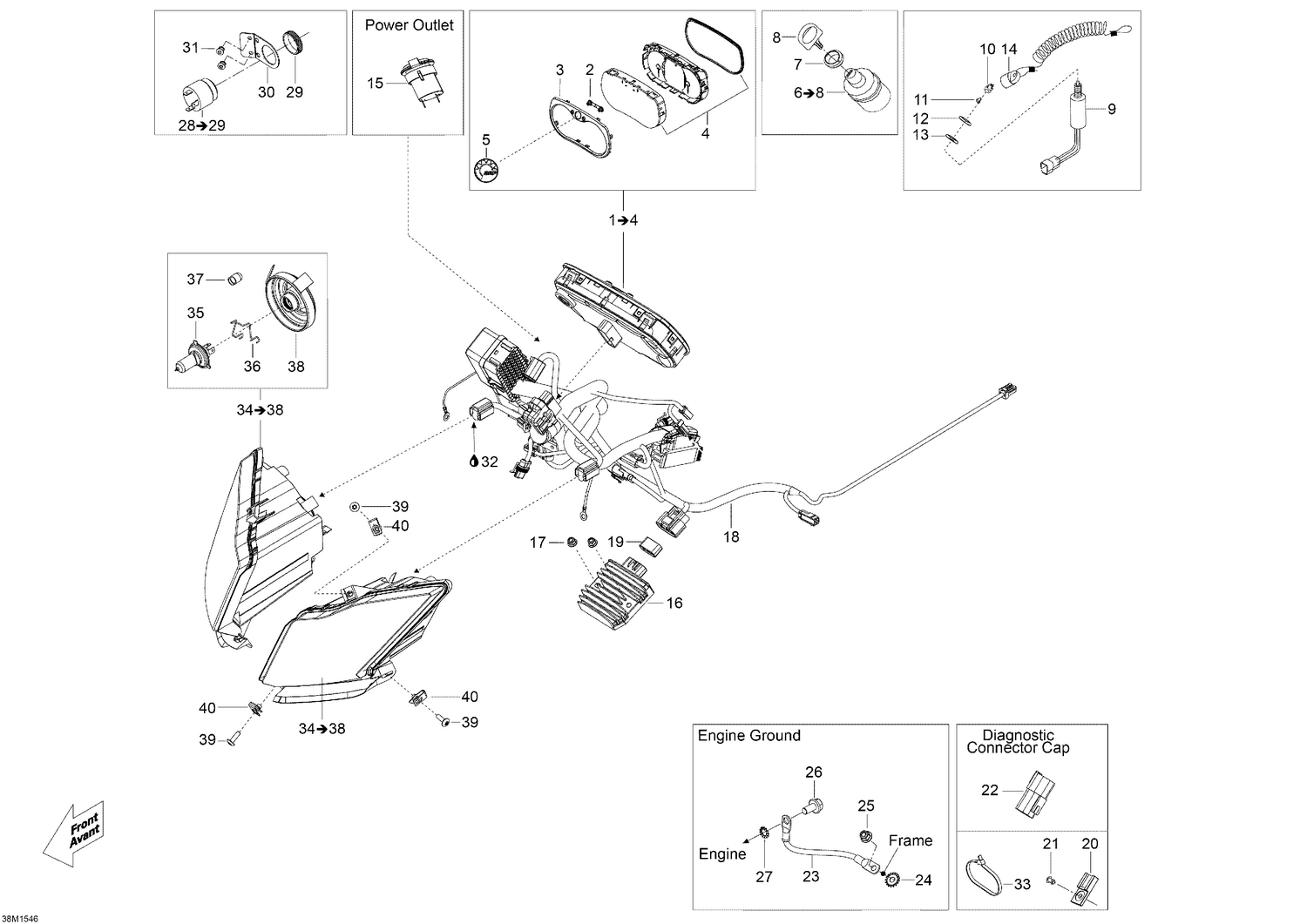

| Ref | Part Number | Description |
|---|
| 2 |
Not |
Available As Spare Part - Speedometer Button |
| 3 |
Not |
Available As Spare Part - Gauge Ring |
| 4 |
Not |
Available As Spare Part - Lens And Seal |
| 5 |
516006224 |
BRP Logo 20MM x 2MM This part replaces 219902677. |
| 7 |
Not |
Available As Spare Part - Nut |
| 8 |
Not |
Available As Spare Part - Blank Key |
| 9 |
515175653 |
Brake Switch |
| 10 |
515145900 |
Switch Nut |
| 11 |
570151100 |
Plunger Cap |
| 12 |
250200084 |
Flat Washer |
| 13 |
732610010 |
RH Threaded Hex. Jam Nut M10 |
| 14 |
515178283 |
Cap Ass'y This part replaces 515176463. |
| 15 |
710001248 |
DC Outlet |
| 16 |
515176699 |
Voltage Regulator |
| 17 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 18 |
515177505 |
WIRING HARNESS MAIN - Call your local BRP dealership |
| 19 |
515176681 |
Lock |
| 20 |
270000141 |
Clip |
| 21 |
390402200 |
Pop Rivet 3/16" |
| 22 |
515176234 |
FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership |
| 23 |
515176745 |
Ground Wire |
| 24 |
250200041 |
Lock Washer Serrated M6 |
| 25 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 26 |
207581646 |
Hex. Flange Screw M8 X 16, Scotch Grip |
| 27 |
234481608 |
Serrated Lock Washer 8 mm |
| 29 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 30 |
515176822 |
REVERSE BUZZ HOLDER - Call your local BRP dealership |
| 31 |
250000725 |
Screw M4 X 16 |
| 32 |
Not |
Available As Spare Part - Loctite 8151 (Dielectric Grease), 75ml |
| 33 |
293750001 |
Tie Wrap 94 mm |
| 33 |
293750002 |
Tie Wrap 142 mm |
| 33 |
293750008 |
Tie Wrap 368 mm |
| 33 |
414115200 |
Tie-Rap 180 mm |
| 35 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 36 |
Not |
Available As Spare Part - Bulb Holder |
| 37 |
515176498 |
Cap |
| 38 |
219800280 |
Rubber Cap Protector This part replaces 515176499. |
| 39 |
250000722 |
Torx Screw M6 X 20 |
