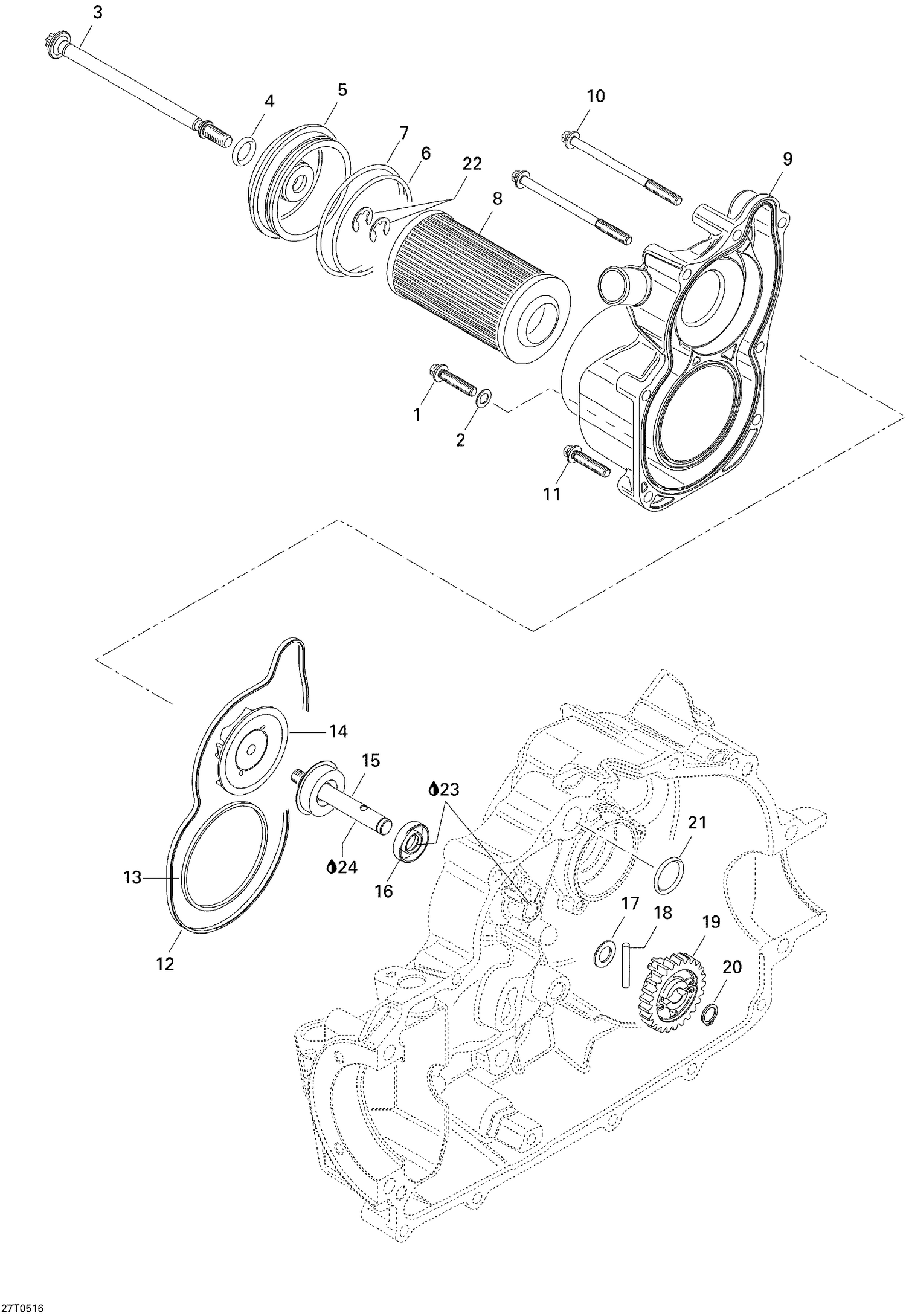

| Ref | Part Number | Description |
|---|
| 1 |
420440274 |
Torx Flange Screw M6 X 35 This part replaces 420440272. |
| 2 |
404146600 |
Sealing Washer |
| 3 |
295501207 |
Oil Filter Screw Kit This part replaces 420641105. |
| 4 |
420950860 |
O-Ring |
| 5 |
420610326 |
OIL FILTER COVER - Call your local BRP dealership |
| 6 |
420230923 |
O-Ring This part replaces 420230920. |
| 7 |
420850500 |
O-Ring |
| 8 |
420956741 |
Oil Filter |
| 9 |
420222651 |
WATER PUMP HOUSING - Call your local BRP dealership |
| 10 |
420641228 |
Torx Flange Screw M6 X 85 This part replaces 420440342. |
| 11 |
420440274 |
Torx Flange Screw M6 X 35 This part replaces 420440272. |
| 12 |
420630100 |
GASKET - Call your local BRP dealership |
| 13 |
420630170 |
GASKET - Call your local BRP dealership |
| 14 |
420222540 |
WATER IMPELLER - Call your local BRP dealership |
| 15 |
420220827 |
Waterpump Shaft |
| 16 |
Not |
Available As Spare Part - Oil Seal (See Crankcase) |
| 17 |
420827590 |
Thrust Washer |
| 18 |
420232431 |
Needle Pin This part replaces 420232430. |
| 19 |
420635191 |
Idle Gear, 25 Teeth |
| 20 |
420245330 |
Snap Ring |
| 21 |
Not |
Available As Spare Part - O-Ring (See Crankcase) |
| 22 |
420845240 |
RETAINING RING - Call your local BRP dealership |
| 23 |
293550030 |
Grease, Super Lube |
