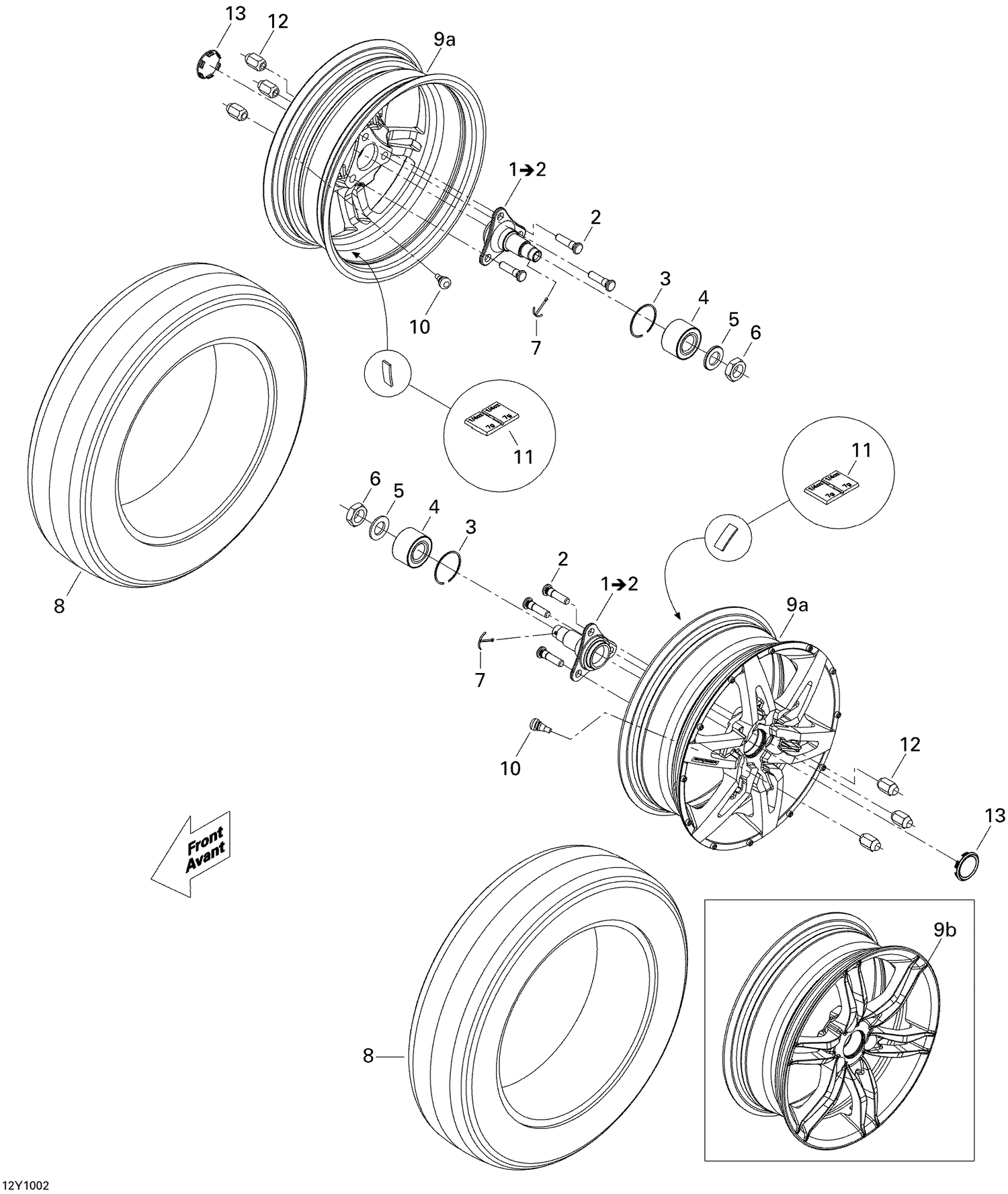

| Ref | Part Number | Description |
|---|
| 1 |
706202435 |
Hub This part replaces 706201159. |
| 2 |
250300024 |
WHEEL STUD M12 X 1.5 - Call your local BRP dealership |
| 3 |
293370019 |
Circlip |
| 4 |
293350150 |
Ball Bearing This part replaces 293350040. |
| 5 |
250200094 |
Flat Washer |
| 6 |
250100103 |
Hex. Jam Nut M24 |
| 7 |
250400047 |
Cotter Pin |
| 8 |
706201411 |
Front Tire This part replaces 706201292. |
| 10 |
705400193 |
Rim Valve With Cap |
| 11 |
705502106 |
Self Adhesive Weight, 5G 20mm This part replaces 705501383. |
| 12 |
250100154 |
Chrome, Wheel Nut M12 X 1.5 This part replaces 250100057. |
