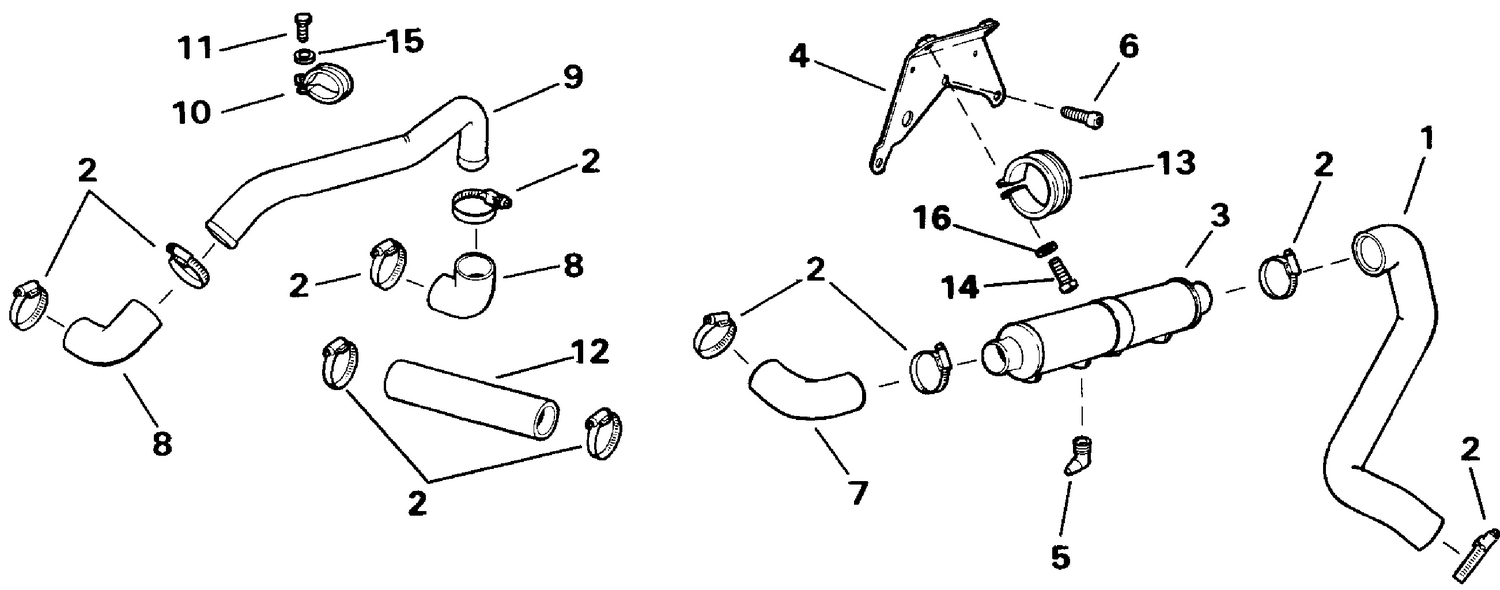

| Ref | Part Number | Description |
|---|
| 1 |
0915593 |
HOSE, Gimbal to engine |
| 2 |
0915513 |
CLAMP, Hose, engine coolant |
| 3 |
0915594 |
COOLER UNIT, Hydraulic & fuel |
| 4 |
0915602 |
BRACKET, Bicooler unit |
| 5 |
0916068 |
ELBOW, Fuel outlet, bicooler |
| 6 |
3853419 |
SCREW, Clamp, front This part replaces 0915043. |
| 7 |
0915596 |
HOSE ELBOW, Bicooler to intercooler |
| 8 |
0915516 |
HOSE ELBOW, Expansion tank |
| 9 |
0915597 |
PIPE, Intercooler to heat exchanger |
| 10 |
0915598 |
CLAMP, Pipe to heat exchanger |
| 11 |
0915451 |
BOLT, Clamp, pipe to heat exchanger |
| 12 |
0915599 |
HOSE, Heat exchanger to elbow |
| 13 |
0915600 |
CLAMP, Bicooler unit |
| 14 |
0916067 |
BOLT, Clamp, bicooler unit |
| 15 |
0915470 |
WASHER, Clamp to heatshield |
