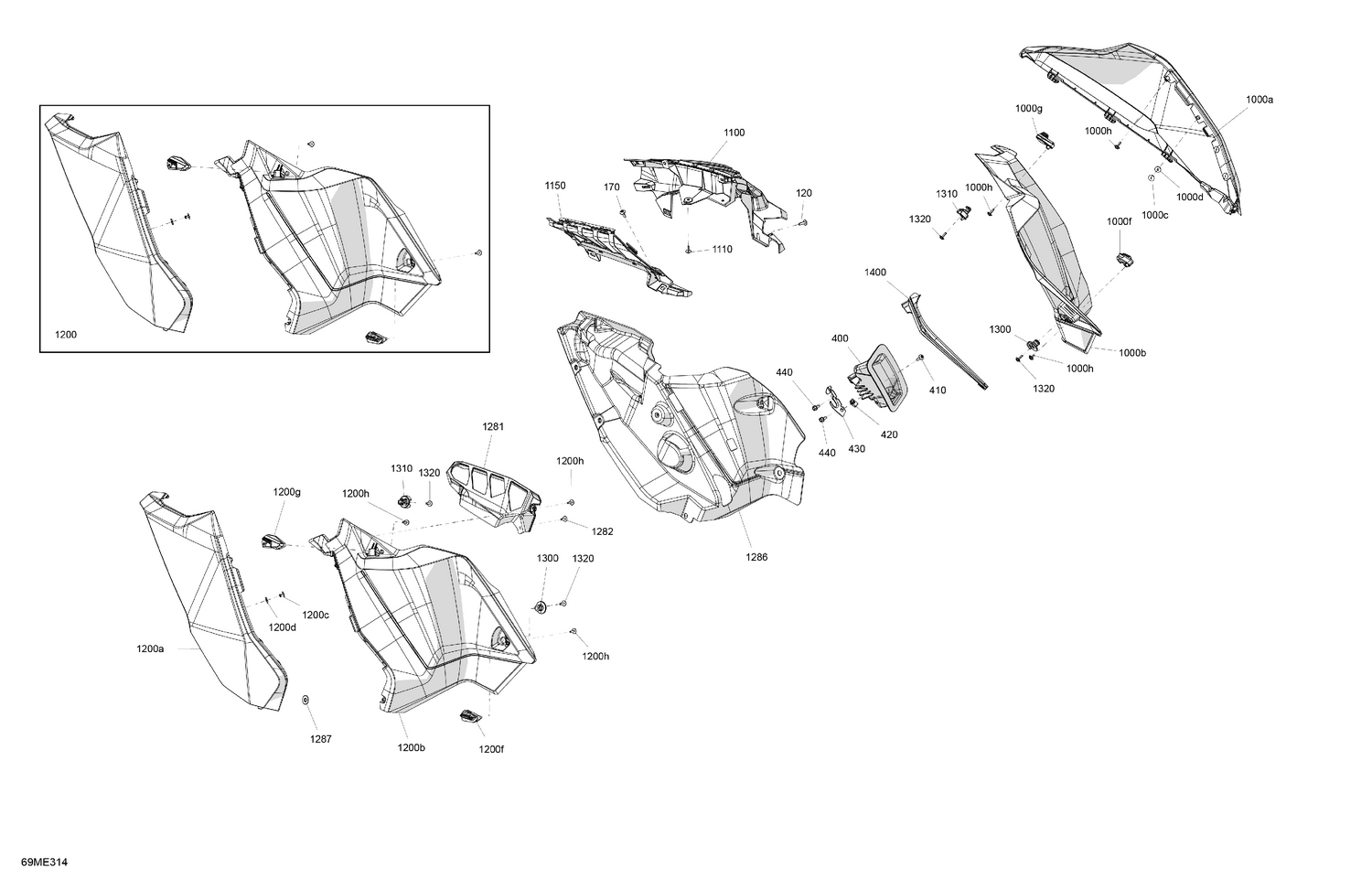

07- Body - Side Panels
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 120 | 250000528 | Torx Screw M5 X 20 |
| 170 | 250000528 | Torx Screw M5 X 20 |
| 400 | 517306759 | RH Console |
| 410 | 250000586 | Torx Truss M5 X 20 |
| 420 | 250000958 | Panel Nut M5 X 0.8 |
| 430 | 517306315 | Rope Guide |
| 440 | 210261250 | Hex. Flange Screw M6 X 12 |
| 1000a | 517309009 | RH Front Panel |
| 1000b | 517307938 | Deep Black, RH Rear Panel |
| 1000c | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 1000d | 517124300 | Washer |
| 1000f | 517305773 | RH Rear Latch |
| 1000g | 517305979 | RH Front Latch |
| 1000h | 250000725 | Screw M4 X 16 |
| 1100 | 517308074 | RH Hood Grille |
| 1110 | 250000725 | Screw M4 X 16 |
| 1150 | 517308650 | LH Hood Trim |
| 1200a | 517309011 | LH Front Panel |
| 1200b | 517307928 | Black, LH Rear Panel |
| 1200c | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 1200d | 517124300 | Washer |
| 1200f | 517305774 | LH Rear Latch |
| 1200g | 517305980 | LH Front Latch |
| 1200h | 250000725 | Screw M4 X 16 |
| 1281 | 517307985 | LH Panel Grille |
| 1282 | 250000725 | Screw M4 X 16 |
| 1286 | 517309308 | Acoustic Panel |
| 1287 | 508000853 | Push Nut |
| 1300 | 517305985 | Rear Stud |
| 1310 | 517305988 | Front Stud |
| 1320 | 250000725 | Screw M4 X 16 |
