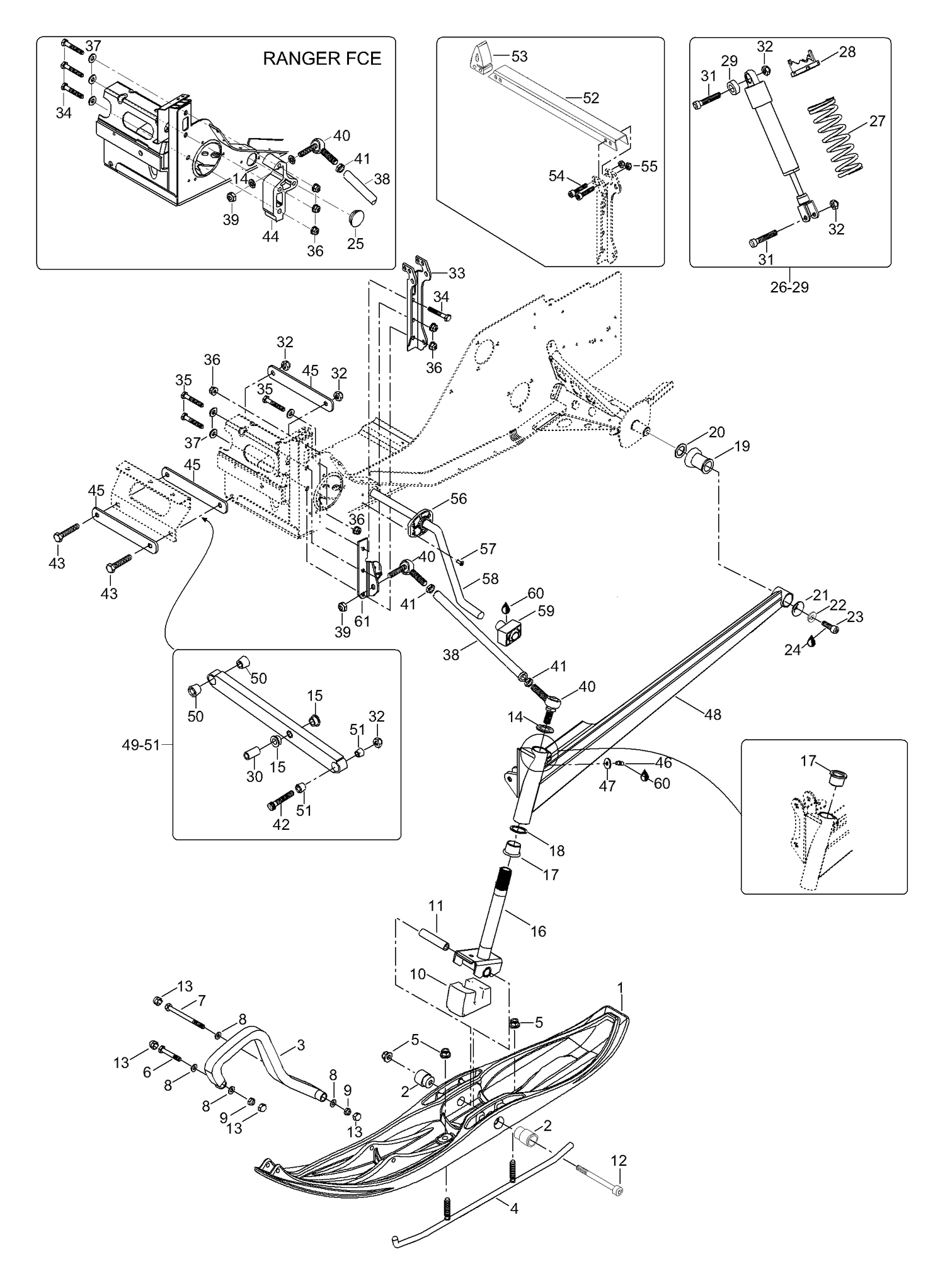

08- Front Suspension

08- Front Suspension

Parts (58)

RefPart NumberDescription
2 605348392 Sleeve
3 505070963 Plastic handle
4 605349310 Runner carbide
5 33074 NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership
6 40009 Screw M8 x 50
7 207089044 Hex. Screw M8 x 90 This part replaces 40264.
8 234081410 Flat Washer 8 mm This part replaces 20004.
9 232581414 Hex. Elastic Stop Nut M8 This part replaces 33011.
10 605348458 SKI STOPPER - Call your local BRP dealership
11 506133300 Spacer
12 40225 Allen screw M10 x140
13 28056 Cover
14 20074 Lock washer
15 31088 Bearing
16 605248927 Ski leg
17 505070003 Bushing
18 505070004 WASHER - Call your local BRP dealership
19 570062200 DAMPER - Call your local BRP dealership
20 503146700 WASHER - Call your local BRP dealership
21 506079600 CUP - Call your local BRP dealership
22 20014 Spring washer
23 40289 Allen screw M8 x 25
24 293800060 Loctite 243, 10ml
25 414916600 Plug
28 505073625 Adjustment Cam This part replaces 503183700.
29 230055 Rubber bushing
30 5441433 Bushing
31 40837 Allen Screw M10x55 DIN 912 (1=10pcs) - Call your local BRP dealership
32 33012 Nut elastic M10
33 5247702 Shock bracket
34 40010 Screw M8 x 55
35 207089044 Hex. Screw M8 x 90 This part replaces 40264.
36 233281414 Hex. Flange Elastic Nut M8 This part replaces 33201.
37 234081410 Flat Washer 8 mm This part replaces 20104.
38 605348813 Upper arm
39 33087 Jam nut elastic M12
40 31092 Ball joint
41 33048 Jam nut M12
42 40136 Allen screw M10 x 50 (1=10pcs) - Call your local BRP dealership
43 40814 Screw M10 x 110
44 5447559 L.H. Upper arm bracket
44 5447566 R.H. Upper arm bracket
45 5346112 Support plate
46 34011 Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership
47 20007 Washer
48 605248965 L.H. Swing arm, Nautical bl.
48 605248966 R.H. Swing arm, Nautical bl
50 5447769 Inner sleeve
51 5447770 Outer sleeve
52 5347225 Bracket
53 5348099 Rubber
54 40345 Allen screw M6 x 40
55 33010 Lock Nut M6 (1=10Pcs)
56 Not Available As Spare Part - Sleeve - DOES NOT APPLY TO THIS MODEL
57 Not Available As Spare Part - Rivet - DOES NOT APPLY TO THIS MODEL
58 Not Available As Spare Part - Sway bar - DOES NOT APPLY TO THIS MODEL
59 Not Available As Spare Part - Block-joint ball - DOES NOT APPLY TO THIS MODEL
60 413711500 SYNTHETIC GREASE - Call your local BRP dealership
