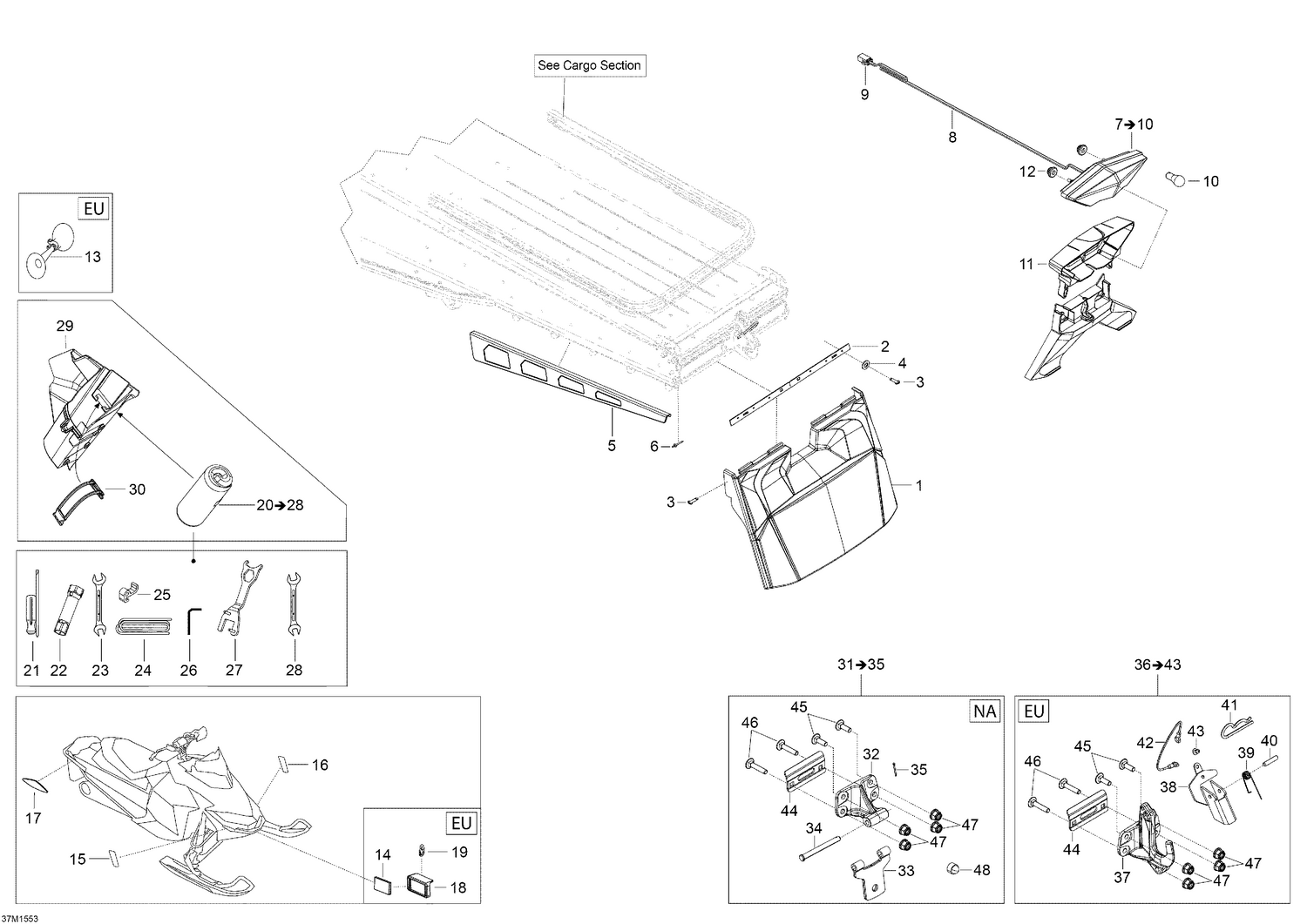

09- Utilities _37M1553
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 520001021 | Plate |
| 3 | 250000676 | Forming Screw M5 x 16 |
| 4 | 250200025 | Washer M5 |
| 5 | 520000693 | RH Protector |
| 5 | 520000694 | LH Protector |
| 6 | 293150163 | Rivet Hucklok |
| 8 | 520000849 | Rear Wiring Harness |
| 9 | 515175494 | Male Housing, 3 Circuits |
| 10 | 520000758 | Bulb |
| 11 | 511000764 | Rear Light Cover |
| 12 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 15 | 520001600 | Yellow, RH Reflector This part replaces 520000843. |
| 16 | 520001601 | Yellow, LH Reflector This part replaces 520000844. |
| 21 | 529000004 | SCREWDRIVER - Call your local BRP dealership |
| 22 | 529000046 | Set Key, 16/21 mm |
| 23 | 529000002 | FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 24 | 219704403 | Was 412500100 Rope-Starter |
| 25 | 529000060 | Starter Grip |
| 26 | 520001142 | Spacing Tool |
| 27 | 520000988 | WRENCH SUSPENSION - Call your local BRP dealership |
| 28 | 34017 | Wrench |
| 29 | 520000720 | TOOL KIT RACK - Call your local BRP dealership |
| 30 | 520000528 | Latch |
| 44 | 520000727 | Plate |
| 45 | 207782544 | Carriage Bolt, M8 X 25 |
| 46 | 207784044 | Bolt Carriage M8 X 40 |
| 47 | 233281414 | Hex. Flange Elastic Nut M8 |
