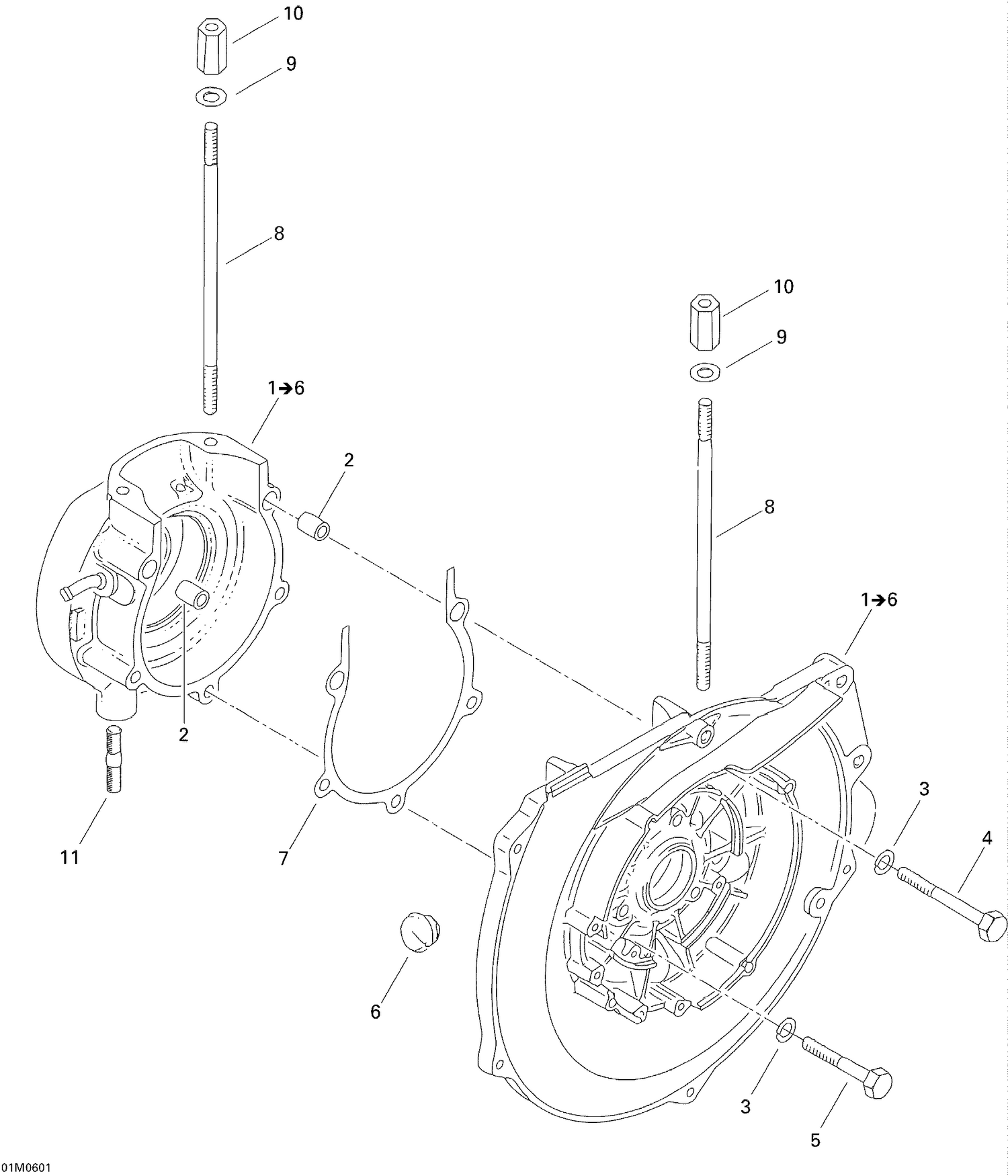

| Ref | Part Number | Description |
|---|
| 2 |
420229150 |
DOWEL - Call your local BRP dealership |
| 3 |
420945832 |
Washer-Lock Din.128 This part replaces 420945752. |
| 4 |
207087544 |
HEX. SCREW M8 X 75 - Call your local BRP dealership |
| 5 |
207085596 |
HEX. SCREW M8 X 55 - Call your local BRP dealership |
| 6 |
420860962 |
Cable Grommet |
| 7 |
420850060 |
GASKET CRANKCASE - Call your local BRP dealership |
| 8 |
420840620 |
STUD M8 X 175 - Call your local BRP dealership |
| 9 |
420250315 |
Flat Washer 8.4 mm This part replaces 420250311. |
| 10 |
420842010 |
DISTANCE NUT M8 X 27.5 - Call your local BRP dealership |
