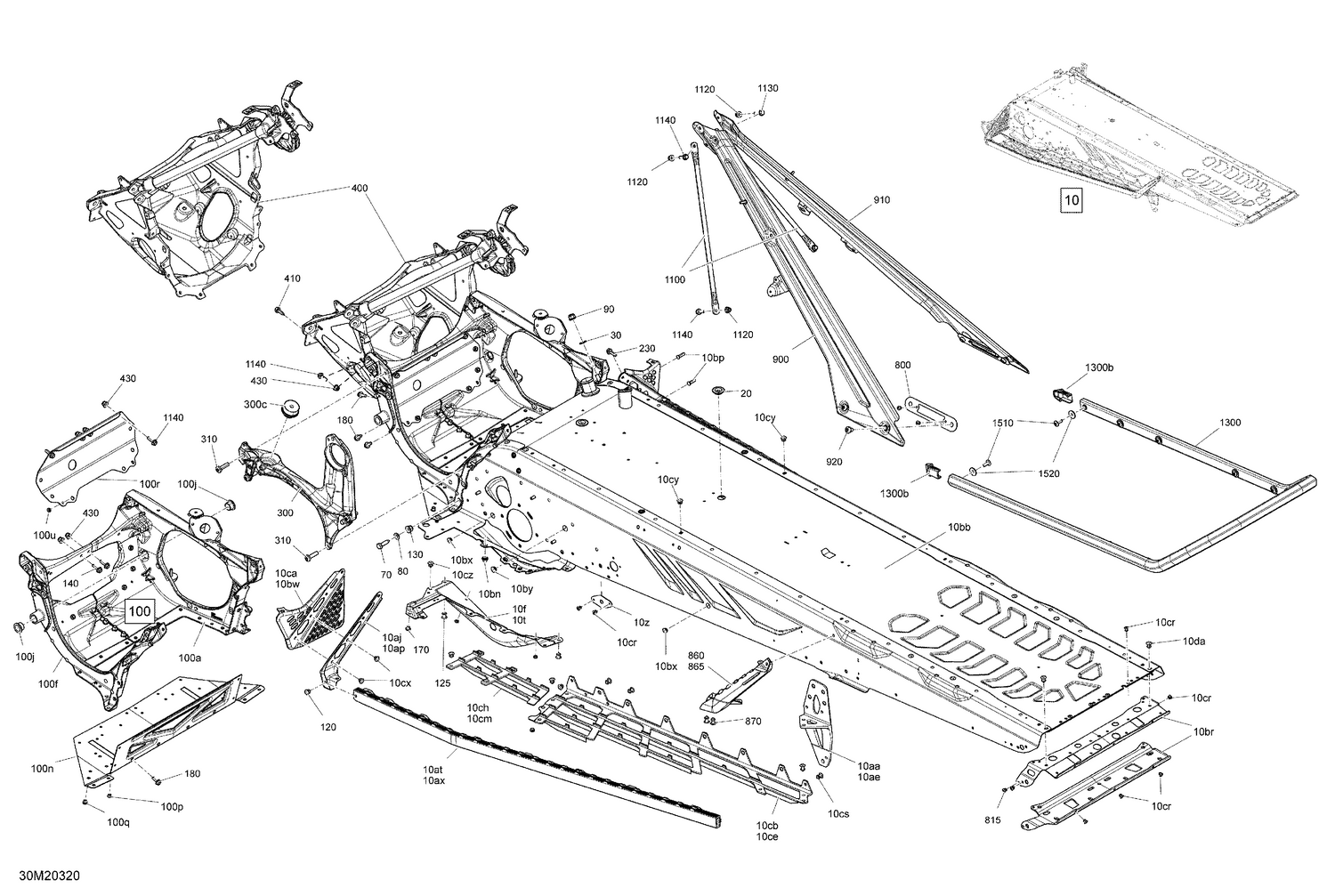

| Ref | Part Number | Description |
|---|
| 10aa |
518334392 |
LH Rear Suspension Support This part replaces 518329053. |
| 10ae |
518334393 |
Support_Suspension Rear R This part replaces 518329054. |
| 10aj |
518331253 |
Stirrup Reinforcement |
| 10ap |
518331560 |
Deep Black, LH Chasssis Reinforcement |
| 10at |
518328737 |
RH Roller |
| 10ax |
518328738 |
LH Roller |
| 10bb |
518334491 |
Radiator Tunnel 154 Ass'y This part replaces 415130288. |
| 10bn |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 10bp |
250300027 |
Clinch Stud M6 X 20 |
| 10br |
518331704 |
Rear Cap Ass'y This part replaces 518331294. |
| 10bu |
293150203 |
Rivet Avibulb 3/16 |
| 10bw |
518328460 |
RH Footrest |
| 10bx |
293730047 |
Black, Dart 8 mm |
| 10by |
293730060 |
Black, Dart 10 mm |
| 10ca |
518333007 |
LH Footrest This part replaces 518331556. |
| 10cb |
518330960 |
LH Rear Perforated Footstep |
| 10ce |
518330962 |
Footstep R Rh Perforated |
| 10ch |
518330385 |
LH Front Driver Footrest |
| 10cm |
518330388 |
RH Front Driver Footrest |
| 10cr |
293150203 |
Rivet Avibulb 3/16 |
| 10cs |
293150183 |
Rivet |
| 10cx |
293150096 |
Hemlock Rivet, 6.5 mm |
| 10cy |
293150119 |
Hemlock Rivet, 6.5 mm |
| 10cz |
293150174 |
Hemlock Rivet, 6.4 mm |
| 10da |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 10f |
518330320 |
RH Footrest Reinforcement |
| 10t |
518330321 |
LH Footrest Reinforcement |
| 10z |
518326647 |
Reinforcement Plate |
| 20 |
293730052 |
Black, Plug |
| 30 |
506151252 |
Washer |
| 70 |
250000942 |
Hex Screw M8 X 30 |
| 80 |
234081410 |
Flat Washer 8 mm |
| 90 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 100a |
518332687 |
RH Member Ass'y This part replaces 518330545. |
| 100f |
518334599 |
LH Side Member Ass'y This part replaces 518330547. |
| 100j |
505073317 |
Leg Cushion |
| 100n |
518331661 |
Bottom Plate This part replaces 518330074. |
| 100p |
293150203 |
Rivet Avibulb 3/16 |
| 100q |
293450268 |
Insert M5 X 0.8 |
| 100r |
518330100 |
Front Member |
| 100u |
293150203 |
Rivet Avibulb 3/16 |
| 120 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 125 |
293150120 |
Hemlock Rivet 6.5 mm |
| 130 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 170 |
293450267 |
Insert M5 - 0.8 |
| 180 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 230 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 300c |
512061516 |
Vibration Damper This part replaces 512060295. |
| 310 |
250001060 |
Screw-Pan HD.Torx M8X30 |
| 400 |
518334460 |
Chassis Suspension Module This part replaces 518330167. |
| 410 |
250001051 |
Screw-Forming Hex.HD.FL. M6 X 16 |
| 430 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 800 |
518329480 |
Member Fixation Plate |
| 815 |
293150203 |
Rivet Avibulb 3/16 |
| 860 |
518331394 |
SunburstYellow, LH Rear Footrest Reinfor |
| 860 |
518331396 |
Labrador Blue, LH Rear Footrest Reinforc |
| 865 |
518331393 |
Yellow, RH Rear Footrest Reinforcement |
| 865 |
518331395 |
Blue, RH Rear Footrest Reinforcement |
| 870 |
293150183 |
Rivet |
| 900 |
518330061 |
Yellow, LH Member This part replaces 518329079. |
| 910 |
518331054 |
Sunburst Yellow, RH Rear Diag Cross Memb |
| 920 |
250000887 |
Pan Head Torx Screw M8 X 12 |
| 1100 |
518329974 |
Upper Colomn Support |
| 1120 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1130 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 1140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 1300b |
520001612 |
Cap |
| 1510 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 1520 |
224061201 |
Flat Washer |
