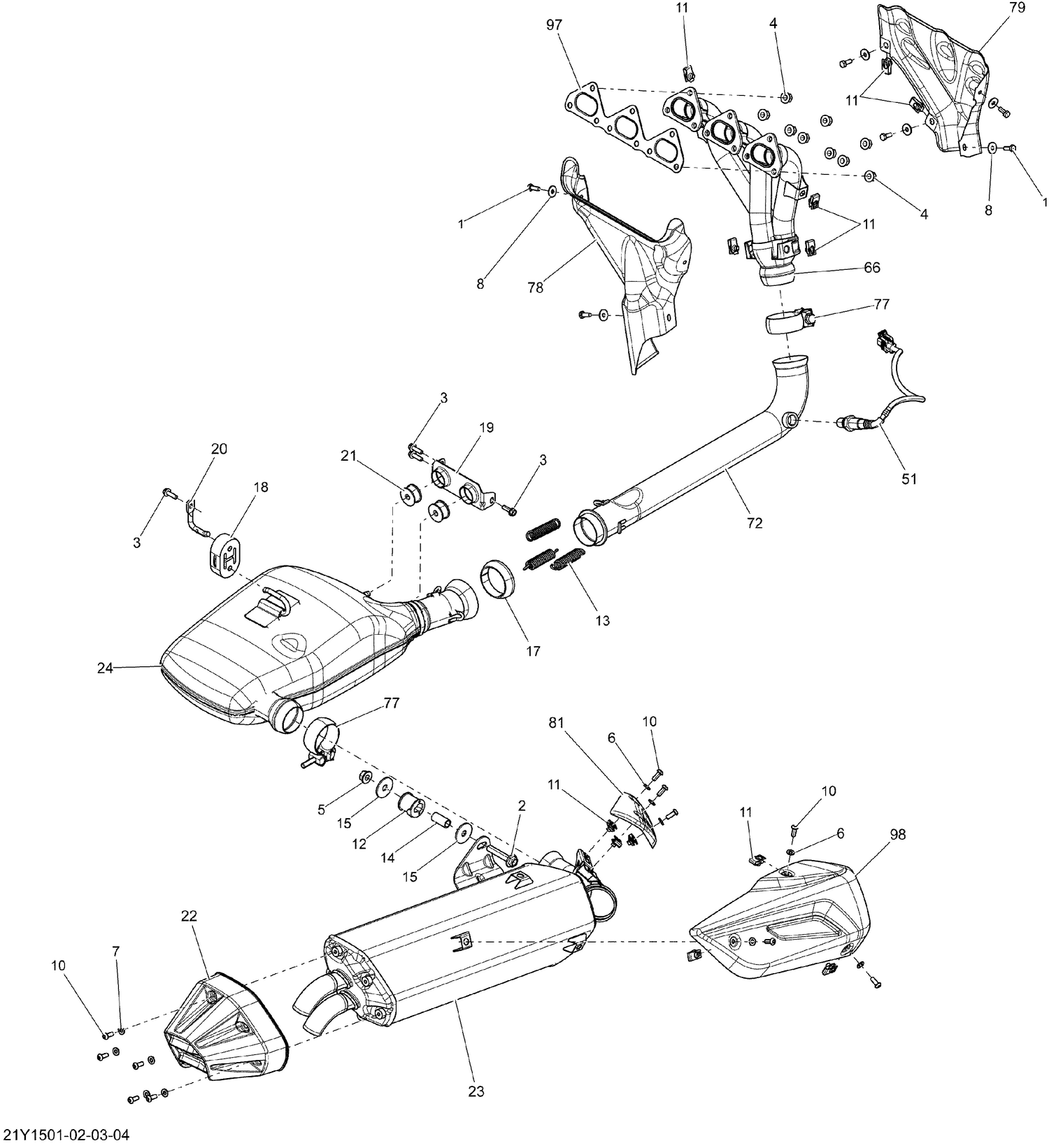

| Ref | Part Number | Description |
|---|
| 1 |
207361660 |
Hex. Screw M6 X 16, Scotch Grip |
| 2 |
207505046 |
Hex. Flange Screw M10 X 50, Scotch Grip |
| 3 |
210262050 |
Hexagonal Head Screw This part replaces 210262080. |
| 4 |
233081416 |
Hex. Flange Nut M8 |
| 5 |
233101600 |
Hex. Flange Nut M10 |
| 6 |
234061670 |
Black, Flat Washer 6 mm |
| 7 |
234061670 |
Black, Flat Washer 6 mm |
| 8 |
234062600 |
Flat Washer M6, Stainless |
| 10 |
250000616 |
Black, Socket Screw, M6 X 16 S.Grip |
| 11 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 12 |
293830162 |
Anti-Vibration Rubber |
| 13 |
415107100 |
Spring |
| 14 |
503189282 |
Bushing |
| 15 |
506150000 |
Washer 10 mm |
| 17 |
514054174 |
Exhaust Gasket |
| 18 |
707600638 |
Rubber Bumper |
| 19 |
707600661 |
Front Bracket |
| 20 |
707600666 |
RETAINING ROD - Call your local BRP dealership |
| 21 |
707600702 |
Anti-Vibration Rubber |
| 22 |
707601995 |
Carbon Black, RH Rear Muffler Trim This part replaces 707601048. |
| 23 |
219800492 |
Carbon Black, Secondary Mufller This part replaces 707601341. |
| 24 |
707601881 |
Primary Muffler This part replaces 707600793. |
| 51 |
707600872 |
Oxygen Sensor |
| 66 |
707601922 |
Exhaust Manifold This part replaces 707600937. |
| 72 |
707600942 |
EXHAUST TUNED PIPE - Call your local BRP dealership |
| 77 |
707600980 |
Exhaust Clamp |
| 78 |
707603641 |
Heat Shield interior This part replaces 707601028. |
| 79 |
707601029 |
External Heat Deflector |
| 81 |
707601054 |
Carbon Black, Heat Shield |
| 97 |
707601857 |
Exhaust Seal This part replaces 707601257. |
