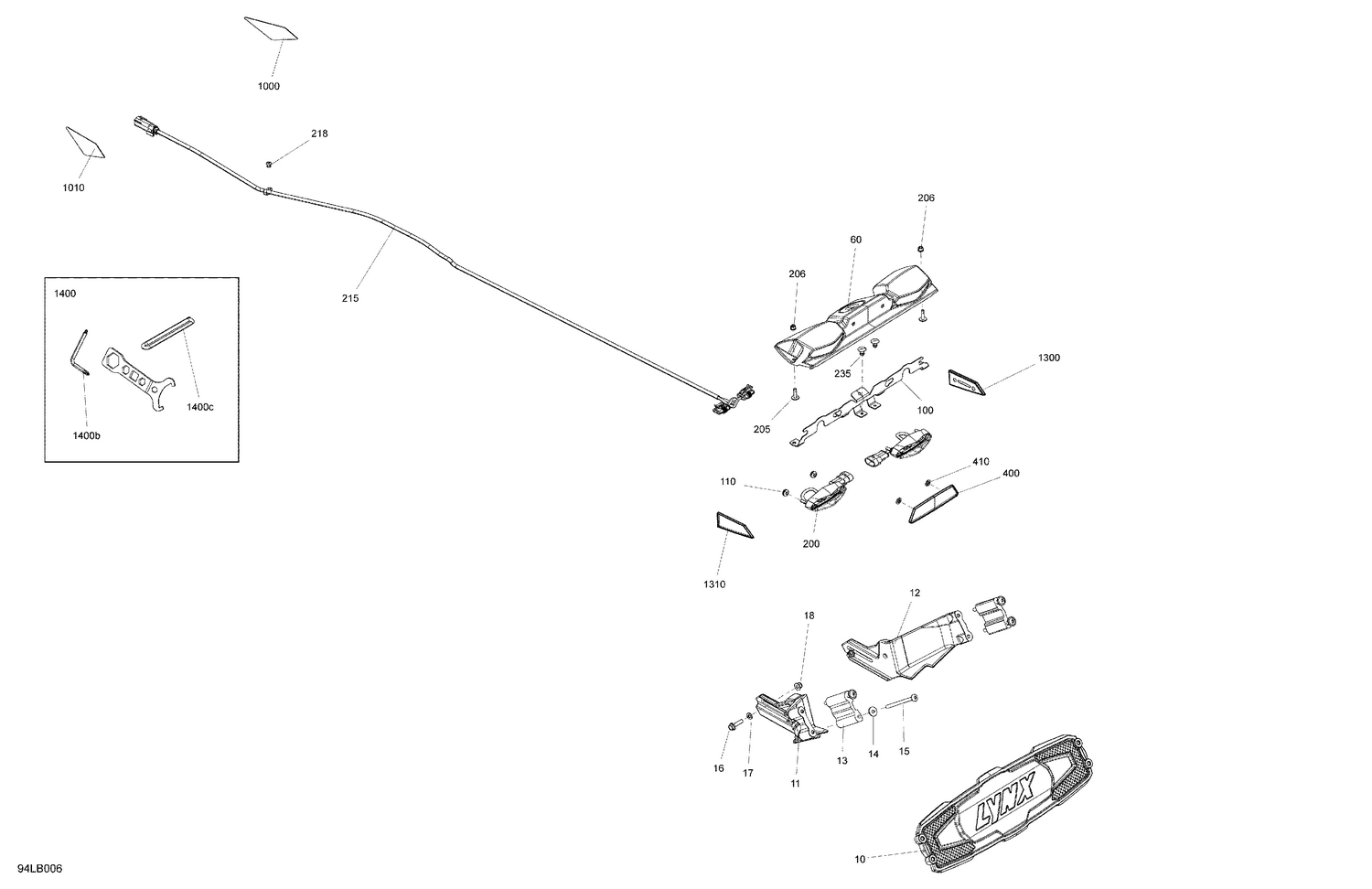

09- Miscellaneous - Utilities
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520001695 | Snowflap |
| 11 | 520002688 | LH Support |
| 12 | 520002689 | RH Support |
| 14 | 20117 | Washer |
| 15 | 250000956 | Torx-Truss M/S M6 X 90 |
| 16 | 207562544 | Hex. Flange Screw M6 X 25 |
| 17 | 234061410 | Flat Washer 6 mm |
| 18 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 60 | 520001700 | Light Fairing |
| 100 | 520001783 | Rear Light Support Plate |
| 110 | 293720101 | Grommet |
| 200 | 520002636 | Tail Light This part replaces 520001738. |
| 205 | 250000586 | Torx Truss M5 X 20 |
| 206 | 233251494 | Elastic Flanged Nut M5 |
| 215 | 515178360 | Câblage Électrique |
| 218 | 390402200 | Pop Rivet 3/16 |
| 235 | 293150104 | Pop Rivet 3/16 |
| 400 | 705015952 | Rear Reflector |
| 410 | 732610072 | Push Nut |
| 1000 | 520002343 | RH Front Reflector |
| 1010 | 520002344 | LH Front Reflector |
| 1300 | 705016308 | Réflecteur DR |
| 1310 | 705016309 | Réflecteur GA |
| 1400b | 520001815 | Key |
| 1400c | 529017500 | Rope Starter |
