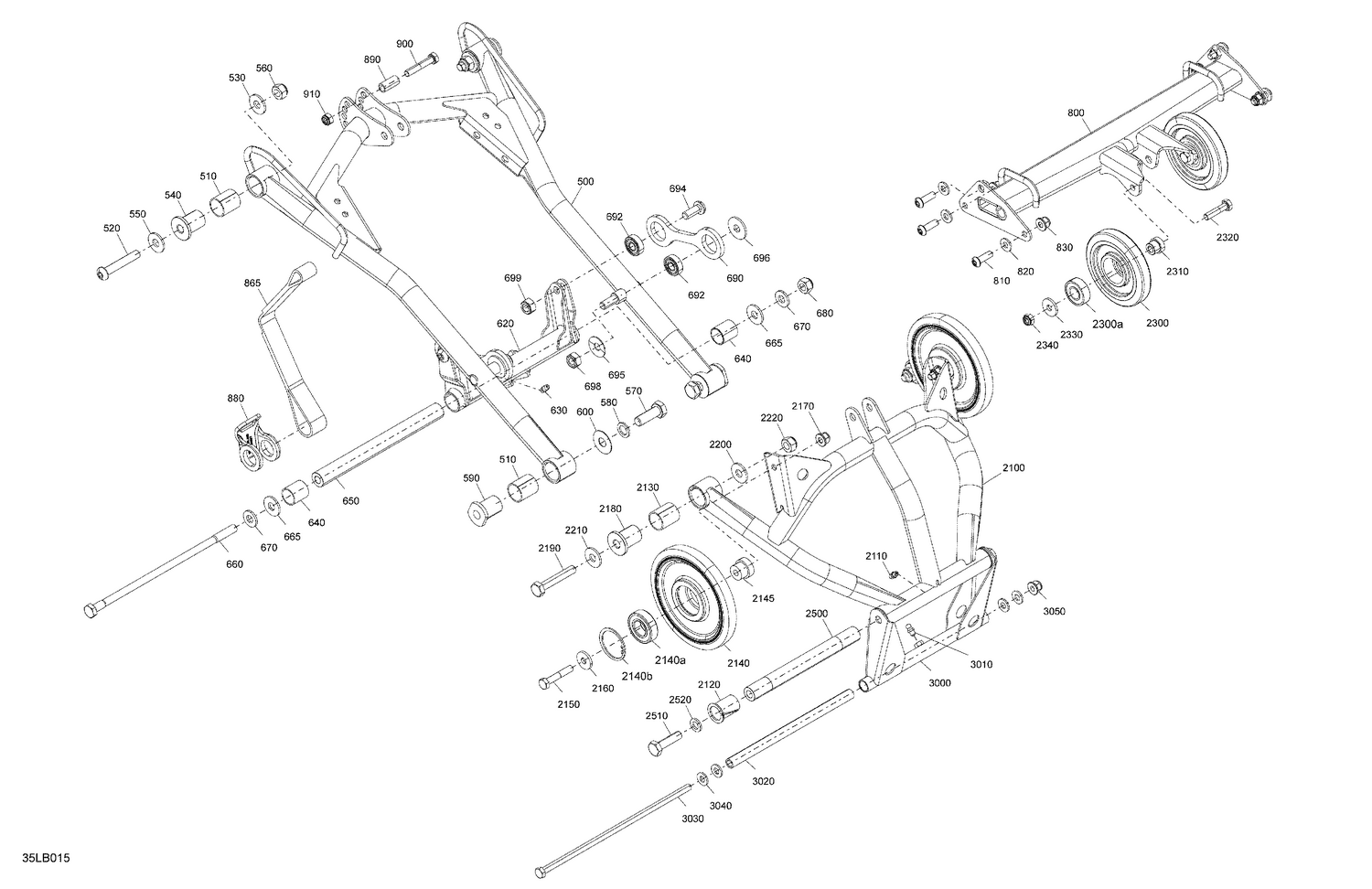

05- Suspension - Rear - Upper Section
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| 500 | 503193561 | Front Arm |
| 510 | 503191554 | Bushing |
| 520 | 503194947 | Screw-socket Bn.hd. M10 X 60 |
| 530 | 503191926 | Washer |
| 540 | 503194580 | Upper Axle Sleeve |
| 550 | 503191926 | Washer |
| 560 | 233601466 | Elastic Locking Nut M10 |
| 570 | 250000537 | Hex. Cap Screw M12 X 35 |
| 580 | 503192491 | Washer |
| 590 | 503194579 | Lower Axle Sleeve |
| 600 | 503190656 | Washer |
| 620 | 503194799 | Front Swing |
| 630 | 408200700 | Grease Fitting |
| 640 | 503193822 | Bushing |
| 650 | 503193893 | Lower Shaft |
| 660 | 503193227 | Bolt M10 X 251MM |
| 665 | 503191926 | Washer |
| 670 | 250200138 | Washer |
| 680 | 233601466 | Elastic Locking Nut M10 |
| 690 | 605254159 | Etuvivun välitanko |
| 692 | 503194696 | Bearing |
| 694 | 205402546 | Socket Screw BN.HD.ISO.7380 |
| 695 | 25004 | Cup Spring |
| 696 | 234002600 | Flat Washer 10 mm, Stainless |
| 698 | 233401414 | Lock Spring Nut M10 |
| 699 | 232500416 | Elastic Stop Nut M10 |
| 800 | 503194090 | Middle Beam |
| 810 | 250001126 | Torx Screw Button Head M8 X 25 |
| 820 | 503192494 | Washer |
| 830 | 233281414 | Hex. Flange Elastic Nut M8 |
| 865 | 605355116 | Courroie De Limitation |
| 880 | 503194867 | Holder, Limiter Strap |
| 890 | 605455335 | Sleeve |
| 900 | 207084544 | Hex. Screw M8 X 45 |
| 910 | 232581414 | Hex. Elastic Stop Nut M8 |
| 2100 | 503194325 | Rear Arm (Heavy Duty) |
| 2110 | 408200700 | Grease Fitting |
| 2120 | 503191640 | Cushion |
| 2130 | 503191554 | Bushing |
| 2140a | 503190396 | Ball Bearing |
| 2140b | 415129371 | Retaining Ring |
| 2145 | 605454461 | Sleeve |
| 2150 | 207084544 | Hex. Screw M8 X 45 |
| 2160 | 20077 | M8 Washer |
| 2170 | 233281414 | Hex. Flange Elastic Nut M8 |
| 2180 | 503194580 | Upper Axle Sleeve |
| 2190 | 250000696 | Hexagonal Screw |
| 2200 | 503191926 | Washer |
| 2210 | 503191926 | Washer |
| 2220 | 233601466 | Elastic Locking Nut M10 |
| 2300a | 405404600 | Ball Bearing |
| 2310 | 503193330 | Sleeve |
| 2320 | 207083544 | Hex. Screw M8 X 35 |
| 2330 | 20077 | M8 Washer |
| 2340 | 232581414 | Hex. Elastic Stop Nut M8 |
| 2500 | 503193638 | Axe Inferieur *shaft-lower |
| 2510 | 207204044 | Hex Cap Screw Din.931 S.grip |
| 2520 | 503192496 | Washer |
| 3000 | 503194342 | Rear Swing |
| 3010 | 408200700 | Grease Fitting |
| 3020 | 503196358 | Pivot Arm Axle |
| 3030 | 503194069 | Bolt M8 |
| 3040 | 503192494 | Washer |
