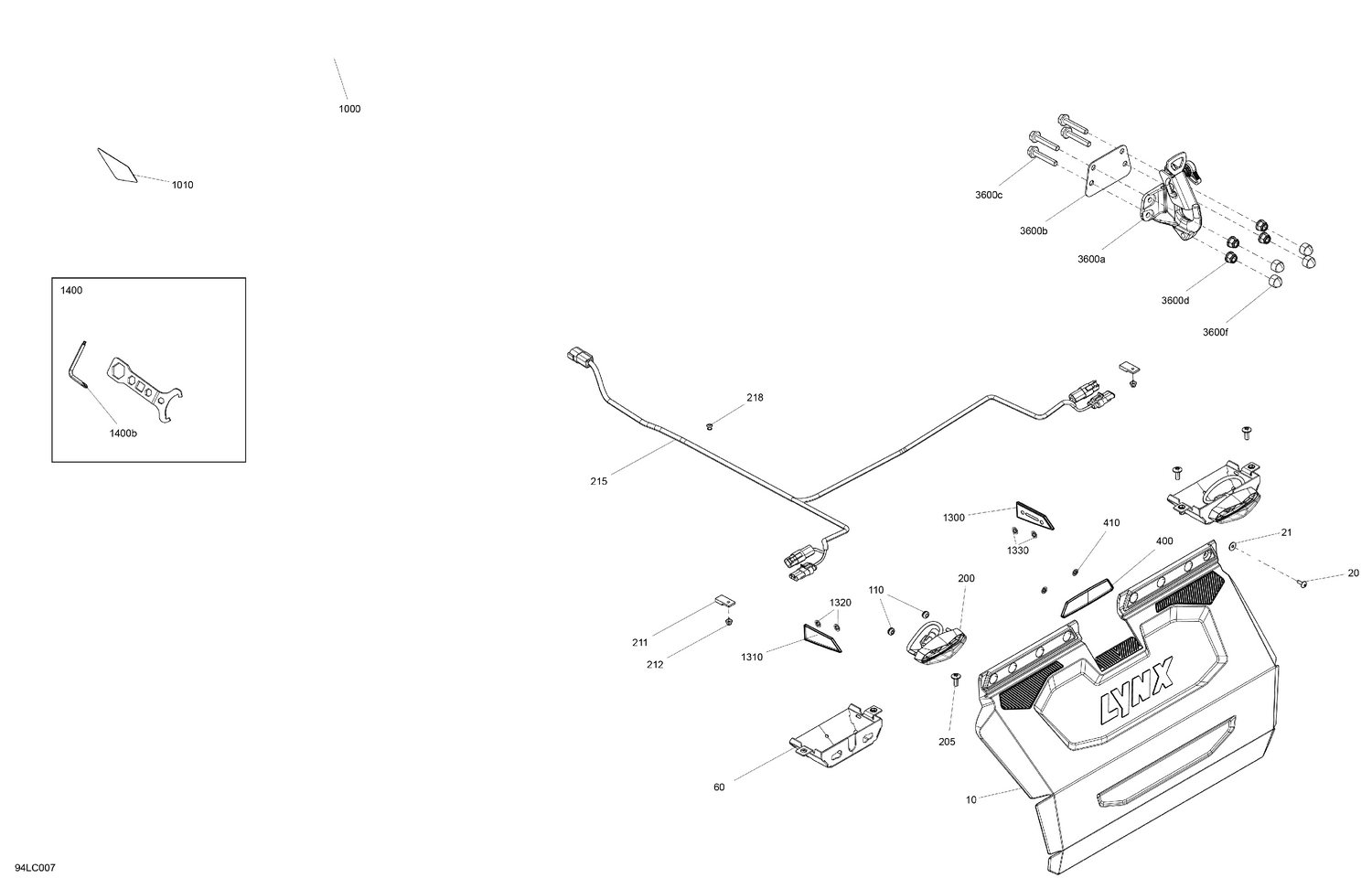

09- Miscellaneous - Utilities
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520002263 | Snow Guard |
| 20 | 250000676 | Forming Screw M5 x 16 |
| 21 | 250200025 | Washer M5 |
| 60 | 520002371 | Light Fairing |
| 110 | 293720101 | Grommet |
| 200 | 520001302 | Rear Light |
| 205 | 250000717 | Torx Head Screw M6 X 16 |
| 211 | 270000141 | Clip |
| 212 | 293150037 | Avdel Rivet 3/16" |
| 215 | 515178908 | Taillight Wiring Harness |
| 218 | 390402200 | Pop Rivet 3/16 |
| 400 | 705015952 | Rear Reflector |
| 410 | 732610072 | Push Nut |
| 1000 | 520002343 | RH Front Reflector |
| 1010 | 520002344 | LH Front Reflector |
| 1300 | 520003528 | Amber, LH/RH Rear Reflector This part replaces 705016306. |
| 1310 | 705016307 | Yellow, LH Reflector |
| 1320 | 520002649 | RH Support Tape |
| 1330 | 520002650 | LH Support Tape |
| 1400b | 520001815 | Key |
| 3600b | 511001560 | RH Chassis Reinforcement |
| 3600c | 207685044 | Hex. Flange Screw M8 X 50 |
| 3600d | 233281414 | Hex. Flange Elastic Nut M8 |
